LTS Platinum CMIP7923WLPR-32R 2MP Motorized LPR Bullet IP Camera

LTS Platinum CMIP7923WLPR-32R 2.1MP Motorised LPR Bullet Camera (8-32mm)

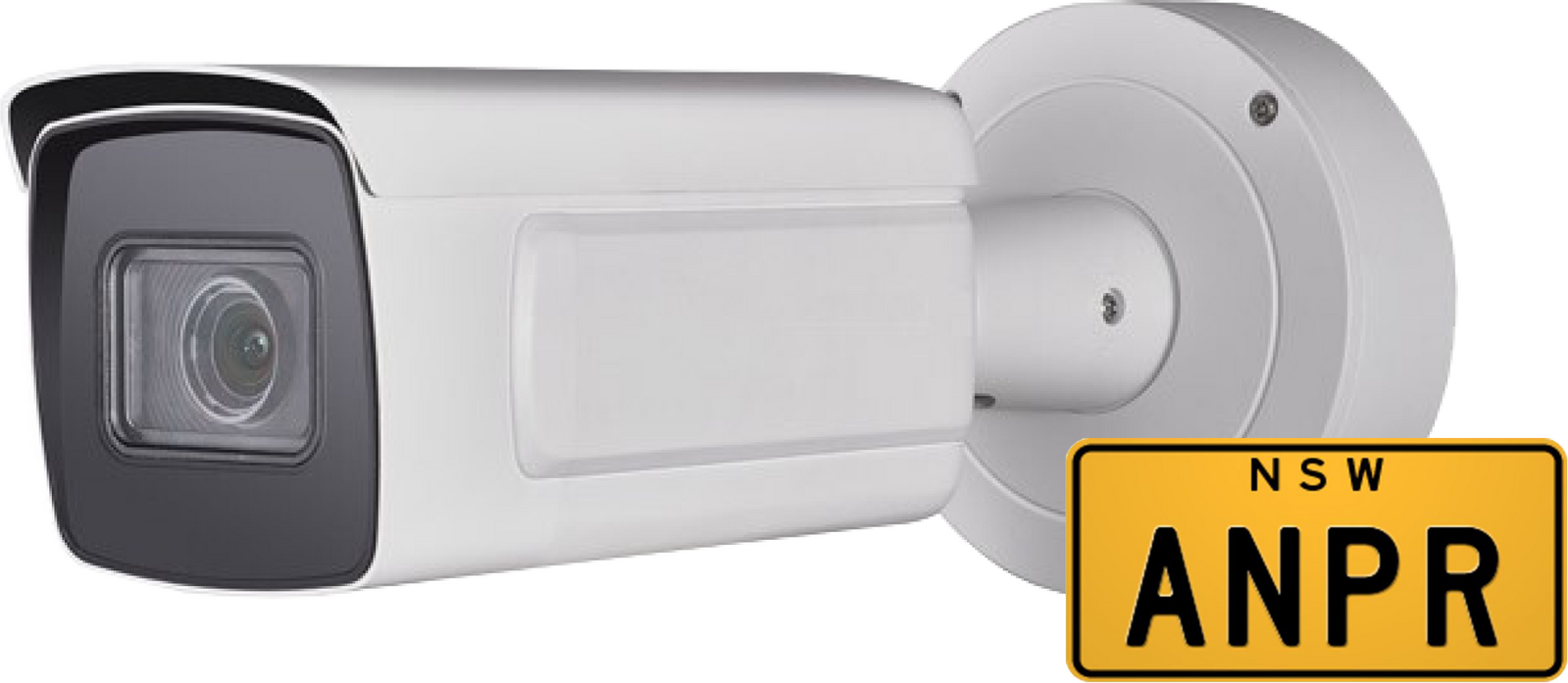

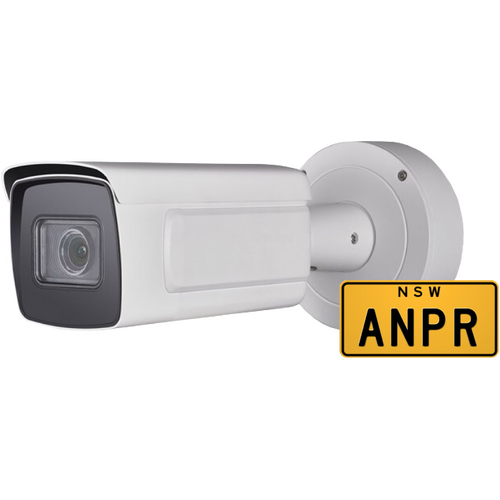

The CMIP7923WLPR-32R is a purpose-built License Plate Recognition (LPR) bullet camera from the LTS Platinum range, designed to capture clean, legible plate images on fast-moving or distant vehicles. Its 8-32mm motorised varifocal lens lets installers fine-tune the field of view remotely to suit boom gates, driveways, car parks and perimeter lanes, while a vandal-resistant IP67/IK10 housing keeps it running reliably in exposed outdoor conditions. Backed by wide dynamic range imaging, matrix IR illumination and onboard plate-recognition analytics, this camera is a solid choice for sites that need dependable, standalone vehicle identification without relying on a separate LPR server.

Key Features

• 2.1MP Full HD imaging at 1920x1080 resolution, capturing smooth footage up to 60fps for accurate plate capture on moving vehicles
• Motorised 8-32mm varifocal lens with a 42°H x 13.5°V field of view, allowing remote zoom/focus adjustment to frame plates at the required distance
• Low-light performance rated to 0.002 Lux at F1.2 with AGC on, supported by matrix IR LEDs providing illumination up to 100m at 850nm
• 120dB true WDR, BLC and 3D DNR combine to reduce glare from headlights and manage strong backlighting common at entry points
• Efficient H.264 Zip+ compression with Profile S/G support to reduce bandwidth and storage demands over long recording periods
• Onboard AI-lite license plate recognition with configurable blacklist and whitelist alarm triggering for automated access or alert workflows
• IP67 weatherproof and IK10 vandal-resistant construction, suited to unsheltered, high-traffic or exposed mounting locations
• Flexible power options via 12VDC or PoE+ (802.3at, 18W), plus onboard microSD storage for local backup recording

Built for Vehicle Access and Perimeter Monitoring

This camera suits car park entries and exits, gated communities, warehouse loading docks, toll points and any laneway where operators need a reliable record of which vehicles are entering or leaving a site. The motorised lens makes it straightforward to commission at a range of mounting heights and distances, while the built-in whitelist/blacklist logic lets integrators trigger gate access or alarms directly from the camera without additional LPR middleware, simplifying smaller-scale deployments.

What's in the Box

• CMIP7923WLPR-32R IP bullet camera
• Junction box (included for cable management and weatherproofing)
• Mounting bracket and fixing screws
• Waterproof cable gland/connector
• Quick installation guide

Frequently Asked Questions

Does this camera work with third-party NVR software?
Yes, it is ONVIF-compatible and integrates with most standard NVR platforms, though it is optimised for use with LTS Platinum NVR systems for full feature support.

Can the lens be adjusted after installation?
Yes, the 8-32mm lens is motorised, so zoom and focus can be adjusted remotely through the camera interface without needing to physically access the unit.

Is a separate LPR server required?
No, the camera includes onboard lite AI license plate recognition with blacklist/whitelist support, allowing basic plate-based alarms without extra server hardware.
