LTS Platinum CMIP7106F-SE 6MP AI Fisheye IP Camera with Heat Mapping

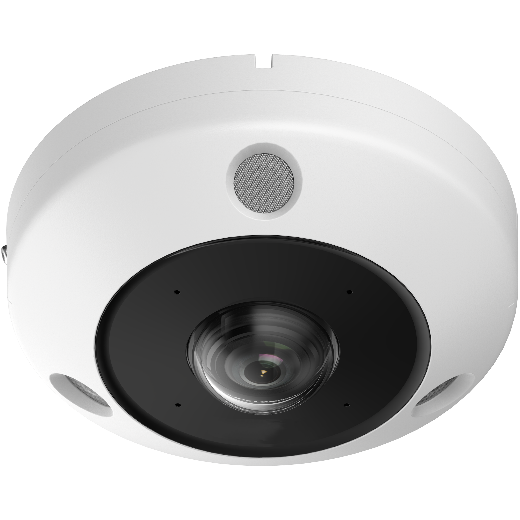

LTS Platinum CMIP7106F-SE 6MP AI Fisheye IP Camera

The LTS Platinum CMIP7106F-SE is a 6 MP fisheye network camera built to deliver a complete 360° view of any room or open area from a single mounting point. Using a 1/1.8″ progressive-scan CMOS sensor paired with a fixed 1.16 mm lens, it captures a full 180° horizontal and vertical field of view at up to 2560 x 2560 resolution, then lets operators de-warp that image into whichever perspective suits the space. Built-in AI video analytics, two-way audio, and rugged IP67/IK10 construction make it a strong fit for retail floors, lobbies, warehouses, and other wide-area indoor or outdoor spaces where a traditional fixed-lens camera would leave blind spots.

Key Features

• 6 MP Ultra-Wide Imaging: 2560 x 2560 resolution captured through a fixed 1.16 mm, f/2.25 lens for a true 180° x 180° fisheye field of view.
• Up to 20 Dewarping Views: Switch between fisheye, panorama, hemispherical, multi-PTZ, and cylinder display modes to match wall, ceiling, or table mounting.
• AI Heat Mapping & People Counting: Built-in analytics visualise foot traffic, dwell time, and crowd density to support merchandising and staffing decisions.
• Smart VCA Detection: Onboard motion detection, line crossing, and intrusion detection help reduce false alerts and support proactive monitoring.
• Built-In Mic and Speaker: Integrated two-way audio allows live communication with people on-site directly through the camera.
• Low-Light IR Illumination: Independently controlled IR LEDs reach up to 50 ft, with the sensor performing down to 0.01 Lux for usable detail in near-darkness.
• Tough, Weatherproof Housing: IP67-rated weather resistance and IK10 impact resistance suit both indoor installs and exposed outdoor locations.
• Flexible Storage & Power: Supports microSD cards up to 256 GB, NAS recording with ANR, and can be powered via PoE or 12VDC.
• Simple Fleet Management: Compatible with the Platinum IP Portal, NVMS client software, and the LTS Connect mobile app for fast setup and remote configuration.

Where This Camera Fits Best

Because a single CMIP7106F-SE can replace several fixed-angle cameras, it's a practical choice for open-plan retail stores, reception areas, warehouses, car parks, and meeting rooms where installers need edge-to-edge coverage without stitching multiple video feeds together. The heat mapping and people-counting tools also give retail and facility managers useful occupancy and traffic data on top of standard security recording, while the built-in audio lets staff or security teams intervene verbally in real time.

What's in the Box

• CMIP7106F-SE fisheye IP camera
• Mounting hardware and template
• Weatherproof cable gland
• Quick start guide

Frequently Asked Questions

Can this camera be mounted on a wall as well as a ceiling?
Yes, the CMIP7106F-SE supports multiple mount types, and its dewarping modes automatically adjust the display to suit ceiling, wall, or table placement.

Does it work outdoors?
Yes, the IP67-rated housing and IK10 vandal resistance allow installation in both indoor and exposed outdoor environments.

What storage options does it support?
It supports on-board microSD storage up to 256 GB as well as network-attached storage with ANR for continuous recording during network interruptions.
