LTS Platinum 5MP IP Covert PIR Camera with 3.7mm Pinhole Lens

LTS Platinum 5MP IP Covert PIR Camera (3.7mm Pinhole Lens)

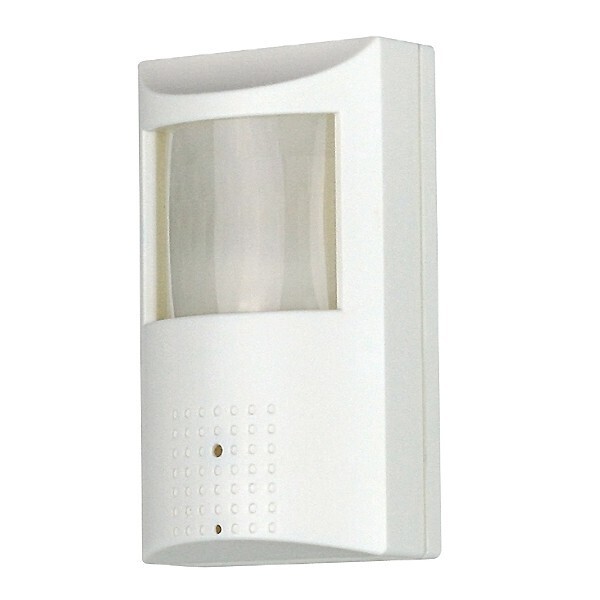

The LTS Platinum CMIP-PIR is a discreet network camera built into a standard-looking PIR motion sensor housing, making it ideal for locations where a visible camera isn't appropriate or would draw unwanted attention. Behind the inconspicuous shell sits a true 5MP IP imaging engine paired with a fixed 3.7mm pinhole lens, giving installers a simple, low-profile way to add high-resolution covert monitoring to offices, retail counters, reception areas, and staff rooms.

Key Features

• High-resolution imaging: Captures detailed video up to 2944x1656 resolution, with selectable streaming up to 5MP/15fps or 4MP/20fps depending on bandwidth needs.
• Covert pinhole optics: A fixed 3.7mm pinhole lens is built into the PIR-style housing, keeping the camera hidden in plain sight.
• Low-light capable: Rated to 0.3 lux at F2.3 with AGC enabled, allowing usable footage in dimly lit rooms.
• Integrated IR illumination: Fitted with 48 IR LEDs delivering night vision range of up to 30 metres.
• Efficient compression: Uses H.264 encoding with ONVIF Profile S and G support for straightforward integration with third-party NVRs and VMS platforms.
• Advanced noise reduction: Combines 2D and 3D noise reduction (2D NR & 3D NR) to keep images clean in low-light and high-motion scenes.
• Built-in audio: An onboard microphone allows simultaneous audio capture alongside video.
• Simple PoE installation: Powered externally via 802.3af PoE at 4W, requiring only a single network cable for data and power.

Ideal for Discreet Indoor Surveillance

Because the camera is housed to resemble a standard PIR motion detector, it suits environments such as retail point-of-sale areas, small offices, waiting rooms, and staff break areas where a traditional dome or bullet camera could be intrusive or a target for tampering. The 3.7mm pinhole lens offers a wide field of view suitable for monitoring a room from a single mounting point, while PoE power keeps cabling minimal and installation fast for integrators working on LTS Platinum IP systems.

What's in the Box

• LTS Platinum CMIP-PIR covert PIR-style IP camera
• Mounting hardware and screws
• Quick installation guide

Frequently Asked Questions

Does this camera actually detect motion like a PIR sensor?
No, the PIR housing is purely a disguise. The unit is a fully functioning 5MP IP camera; there is no separate motion-sensing hardware, though motion detection can be configured through the camera's own video analytics.

Can this camera be used outdoors?
This model is designed primarily for indoor covert surveillance; check housing ingress protection ratings before considering exterior use.

What NVR or software is this compatible with?
The camera supports ONVIF Profile S and G, so it works with LTS Platinum NVRs as well as most third-party ONVIF-compliant recording systems.
