LTS Platinum CMIP9C42NW-M 4MP Color247 IP Bullet Camera 4mm

LTS Platinum CMIP9C42NW-M 4MP Color247 IP Bullet Camera (4.0mm Fixed Lens)

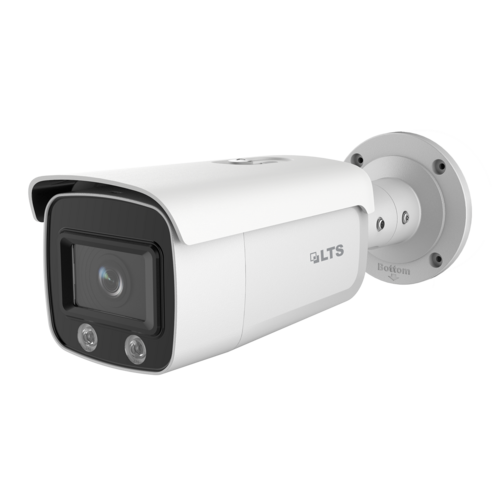

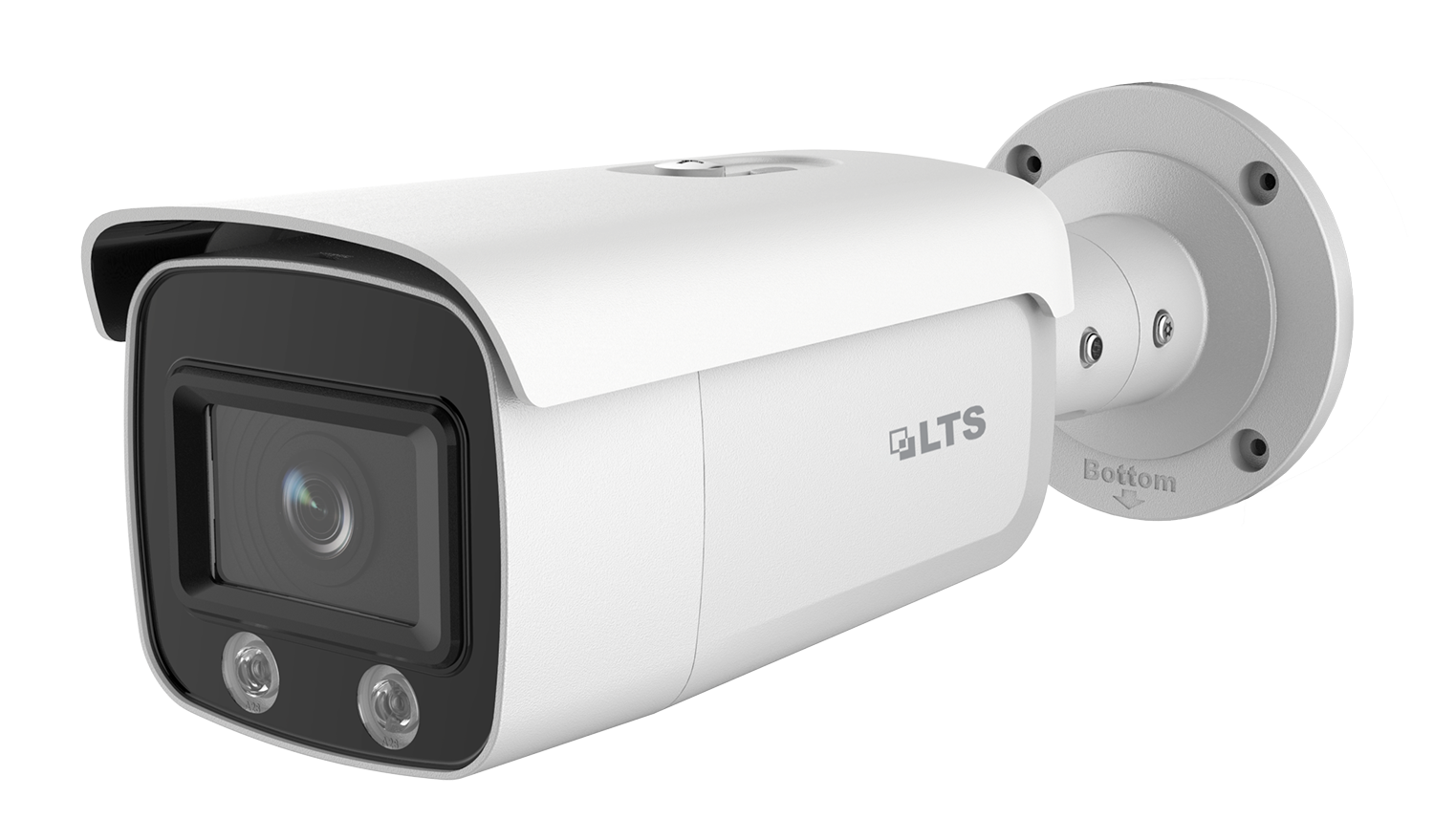

The LTS Platinum CMIP9C42NW-M is a 4MP full-color IP bullet camera built for installers and end users who need reliable, true-to-life colour footage around the clock. Rather than relying on infrared for night scenes, this camera pairs a large-aperture F1.0 lens with a built-in white LED illuminator so identifying details such as clothing colour, vehicle colour, and number plates stay visible even after dark. Housed in a weatherproof IP67 shell, it suits outdoor entrances, car parks, warehouse yards, and perimeter walkways where 24/7 colour evidence matters more than IR-only monitoring.

Key Features

• 4MP resolution at up to 2688 x 1520 @ 30fps for sharp, detailed footage
• Colour247 low-light technology delivering usable colour images down to extremely low illumination, backed by a supplementary white LED with roughly 30m reach
• 4.0mm fixed lens with a wide field of view (approx. 94°H x 48°V x 115° diagonal), ideal for entrances and mid-range coverage
• 120dB true WDR plus BLC, 3D DNR and HLC to balance strong backlight and reduce noise in tricky lighting
• H.265+/H.264+ compression across main, sub and third streams to keep bandwidth and storage needs down
• IP67-rated weatherproof housing for reliable outdoor performance in rain, dust and temperature swings
• Built-in micro SD/SDHC/SDXC slot supporting up to 128GB for onboard edge recording
• Flexible power options via 12VDC or PoE (802.3af, class 3), simplifying cabling on PoE-enabled NVR systems
• Smart analytics support including line crossing, intrusion, and unattended object detection for proactive alerts

Where This Camera Fits Best

Because it prioritises full-colour clarity over black-and-white IR imaging, the CMIP9C42NW-M is well suited to retail entrances, loading docks, driveways, and small business perimeters where recognising colour details in recorded footage is important for identification and dispute resolution. Its fixed 4mm lens gives a practical mid-range field of view, making it a strong general-purpose choice for installers building out LTS Platinum-based CCTV systems alongside compatible LTS NVRs.

What's in the Box

• CMIP9C42NW-M bullet camera
• Mounting bracket and screws
• Junction box / waterproof cable gland kit
• Quick installation guide

Frequently Asked Questions

Does this camera work in complete darkness?
It is designed around colour imaging assisted by a built-in white LED rather than traditional infrared, so it performs best with some ambient or supplemental white light at night rather than in total blackout conditions.

Can it be powered over a standard PoE network switch?
Yes, it supports 802.3af (class 3) PoE as well as 12VDC power, so it can be run from a compatible PoE switch or NVR PoE port without a separate power supply.

What storage does it support if I'm not using an NVR?
The camera has a built-in micro SD/SDHC/SDXC card slot supporting cards up to 128GB for standalone edge recording.
