LTS Platinum CMIP7382W-28SH 8MP IP Vandal Dome Camera with HDMI Out

LTS Platinum CMIP7382W-28SH 8MP IP Vandal Dome Camera (2.8mm, HDMI Out)

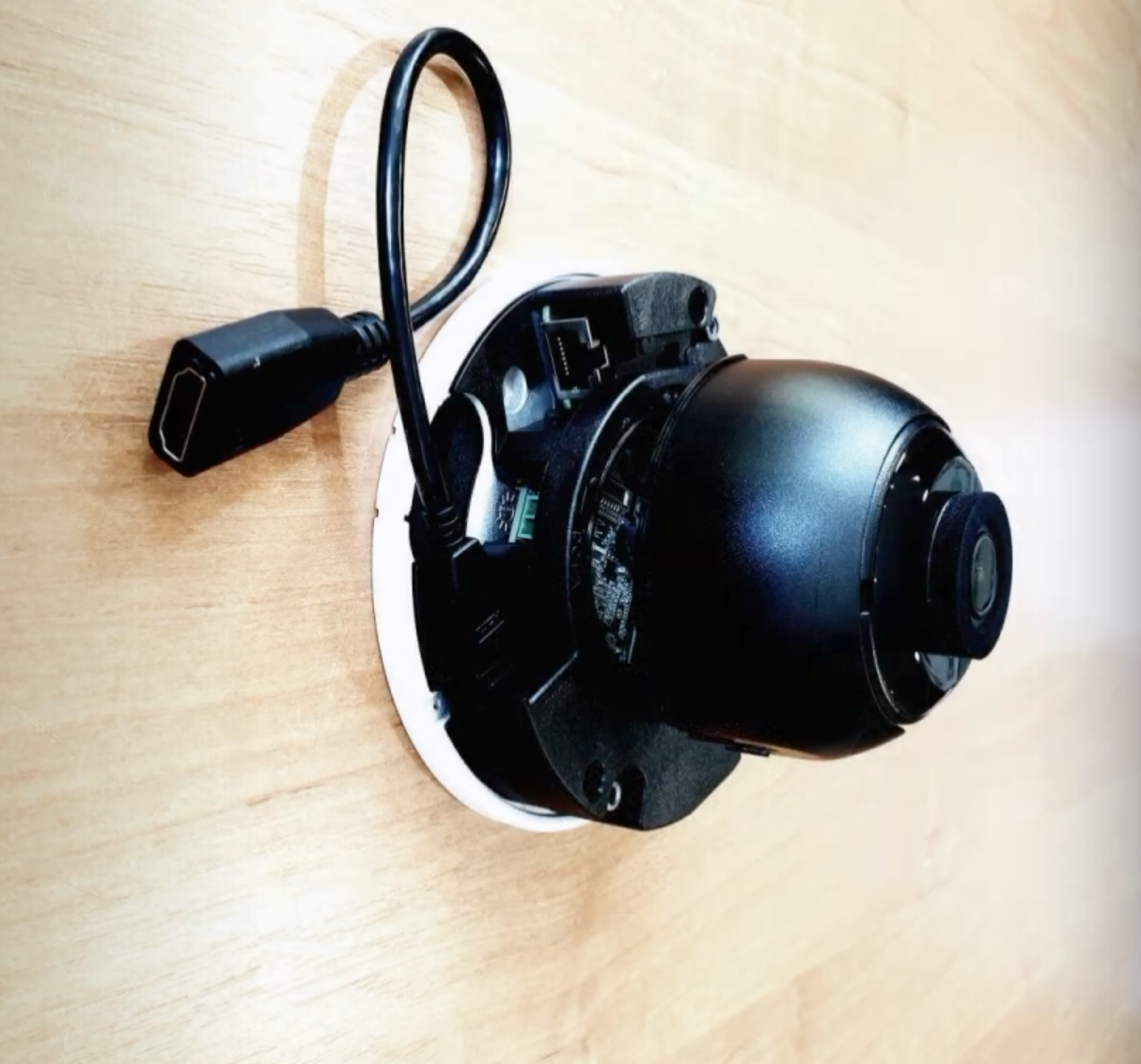

The LTS Platinum CMIP7382W-28SH is an 8MP (4K-class) IP vandal dome camera built for installers who need a rugged, high-resolution fixed-lens dome that can also output directly to a local monitor. Housed in an IK10-rated vandal-resistant shell with IP67 weatherproofing, this dome is equally suited to indoor corridors, retail entries, and exposed outdoor mounting points. The included micro-HDMI adaptor allows technicians to preview the live image on-site without a monitoring workstation, speeding up installation and commissioning across NDAA-compliant Platinum Series deployments.

Key Features

• 8MP Ultra HD Sensor - captures detailed 3840x2160 video, giving operators room to digitally zoom without losing critical evidence quality.
• 2.8mm Fixed Lens - delivers a wide field of view (approximately 102° horizontal, 53° vertical, 124° diagonal) ideal for entryways, lobbies, and general area coverage.
• Matrix IR Illumination - infrared LEDs reach up to 30m (850nm), enabling clear monochrome imaging in complete darkness.
• 120dB True WDR with BLC & 3D DNR - balances harsh backlighting and reduces image noise for cleaner footage in mixed lighting and low-light conditions.
• H.265/H.265+ Compression - Profile S/G encoding significantly reduces bandwidth and storage requirements compared with H.264.
• IP67 & IK10 Rated - certified dust/water ingress protection and impact resistance for tough outdoor or high-traffic environments.

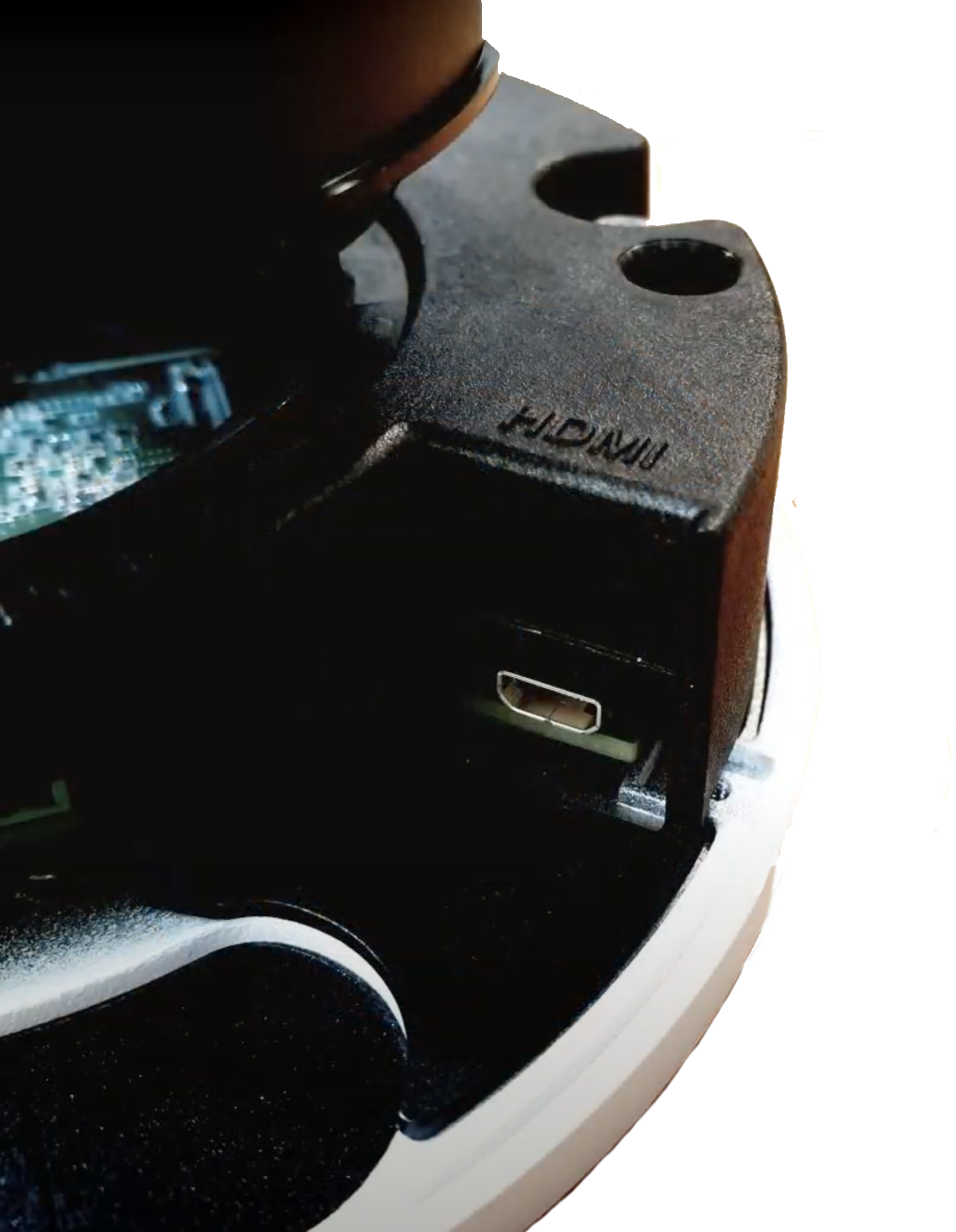

• Built-In HDMI Output - supplied with a micro-HDMI adaptor for direct local video preview, useful for setup and standalone monitor use.
• Flexible Powering - runs on 12VDC (600mA) or 802.3af PoE (9W), simplifying cabling choices on new and retrofit installs.
• On-Board Storage - accepts up to a 128GB microSD card for edge recording independent of an NVR.

Built for Demanding Installations

Because of its vandal-proof housing and weatherproof rating, the CMIP7382W-28SH is a strong fit for building perimeters, loading docks, stairwells, and public-facing entrances where cameras are exposed to weather or tampering. The onboard HDMI output also makes it a practical choice for reception areas, gatehouses, or small sites that want a simple local live-view display alongside standard NVR recording.

What's in the Box

• CMIP7382W-28SH IP Vandal Dome Camera
• Micro HDMI adaptor
• Mounting screws and template
• Waterproof cable connectors
• Quick start guide

Frequently Asked Questions

Does this camera need a separate power supply?
No - it can be powered via standard 802.3af PoE from a compatible switch or NVR, or via a 12VDC adaptor if PoE isn't available.

Can I view live video without an NVR or software?
Yes, the supplied micro-HDMI adaptor lets you connect the camera directly to a monitor for local live viewing.

Is this camera suitable for outdoor use?
Yes, its IP67 weatherproof rating and IK10 impact-resistant housing make it suitable for both indoor and exposed outdoor mounting locations.
