LTS Platinum 4MP IP Vandal Dome Camera with 2.8-12mm Motorized Lens

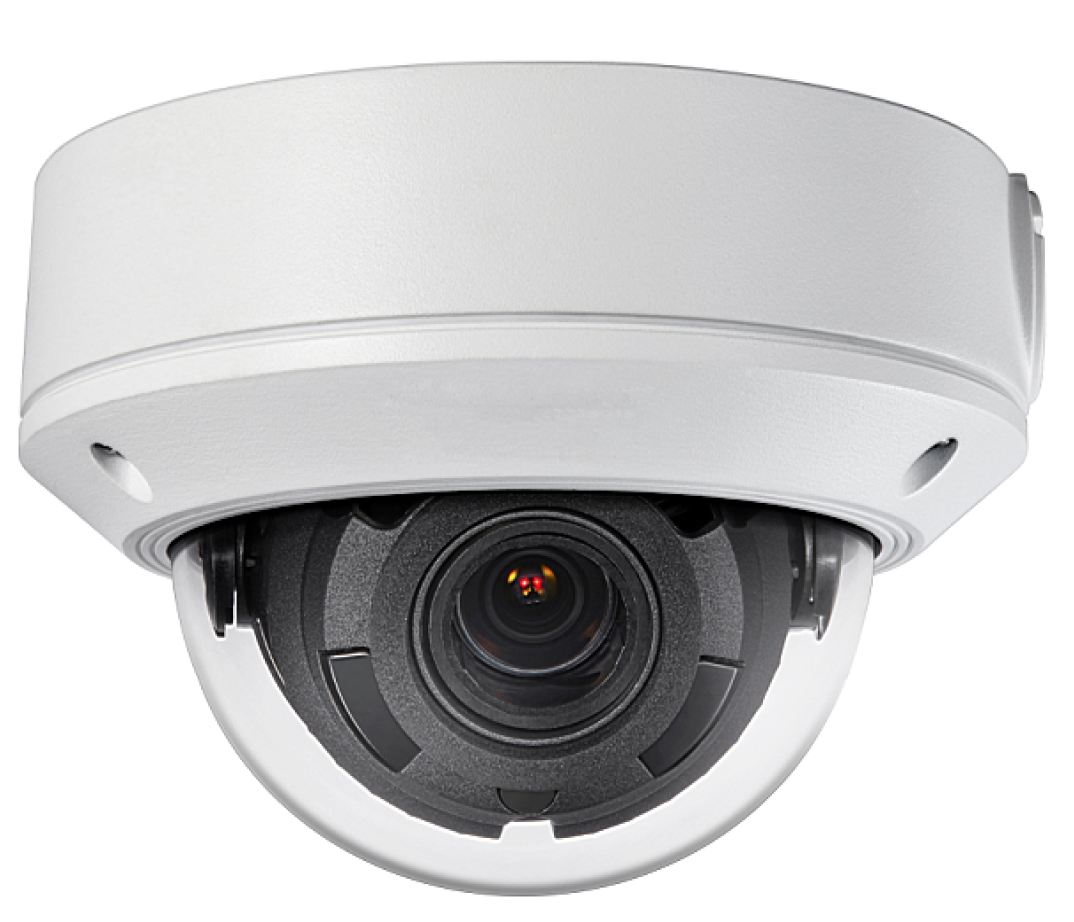

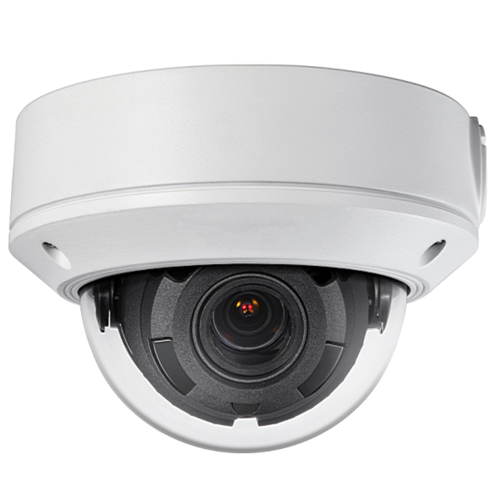

LTS Platinum CMIP7043W-MZ 4MP IP Vandal Dome Camera (2.8-12mm Motorized Lens)

The CMIP7043W-MZ is a 4-megapixel network vandal dome camera from LTS's Platinum series, built for demanding indoor and outdoor surveillance applications. It pairs a motorized 2.8-12mm varifocal lens with a rugged IK10-rated metal housing, giving installers the flexibility to adjust field of view remotely while maintaining strong physical protection against impact and tampering. With true wide dynamic range, long-distance infrared illumination and dual compression support, this camera is designed to deliver clear, usable footage in challenging lighting and environmental conditions.

Key Features

• 4MP High-Definition Imaging: Captures video at up to 2560 x 1440 resolution for crisp detail across wide areas.
• 2.8-12mm Motorized Varifocal Lens: Allows remote zoom and focus adjustment on site or via the network, avoiding the need to physically swap lenses.
• 120dB True WDR: Balances extreme light contrast such as bright sky and dark shadow within the same scene.
• Long-Range Infrared: Built-in IR illuminators extend visibility up to roughly 100 feet (30m) in low-light or night conditions.
• IP67 and IK10 Rated: Fully weatherproof and vandal-resistant, suitable for exposed outdoor mounting points prone to tampering.
• Advanced Compression: Supports H.265, H.265+, H.264 and H.264 Zip+, reducing storage and bandwidth requirements without sacrificing image quality.
• Smart Image Processing: 3D DNR (noise reduction) and BLC (backlight compensation) improve clarity in low-light and high-contrast environments.
• Flexible Power Options: Operates on DC 12V or Power over Ethernet (PoE), simplifying cabling for new and retrofit installations.
• Local Storage Support: Onboard microSD/SDHC/SDXC card slot enables edge recording independent of the NVR.

Built for Demanding Commercial and Outdoor Security Sites

The rugged, vandal-proof housing and adjustable motorized lens make this dome camera well suited to retail storefronts, warehouses, car parks, school perimeters, and other high-traffic or high-risk locations where cameras may be exposed to weather or physical interference. The extended IR range and WDR performance help maintain reliable image quality around entrances, loading docks and parking areas where lighting conditions change throughout the day and night.

What's in the Box

• CMIP7043W-MZ 4MP IP vandal dome camera

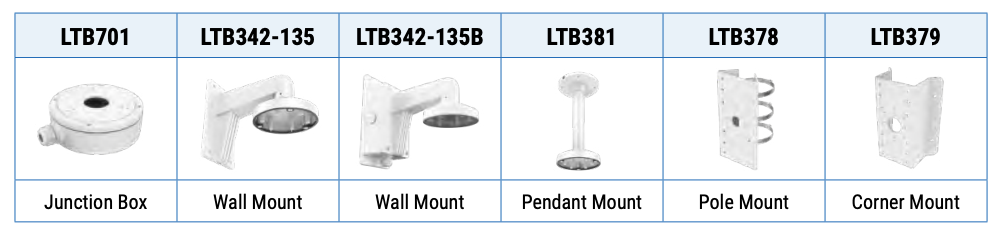

• Mounting bracket and screws
• Security screwdriver/torx key for tamper-resistant screws
• Waterproof cable gland kit
• Quick start guide

Frequently Asked Questions

Does this camera support Power over Ethernet?
Yes, the CMIP7043W-MZ can be powered via PoE or a standard DC 12V power supply, giving installers flexibility depending on existing cabling.

Can the lens be adjusted after installation?
Yes, the 2.8-12mm lens is motorized, so zoom and focus can be adjusted remotely without physically accessing the camera.

Is it suitable for outdoor use?
Yes, the camera carries an IP67 weatherproof rating along with an IK10 vandal-resistance rating, making it appropriate for exposed outdoor and high-risk mounting locations.

Product Images & Diagrams
