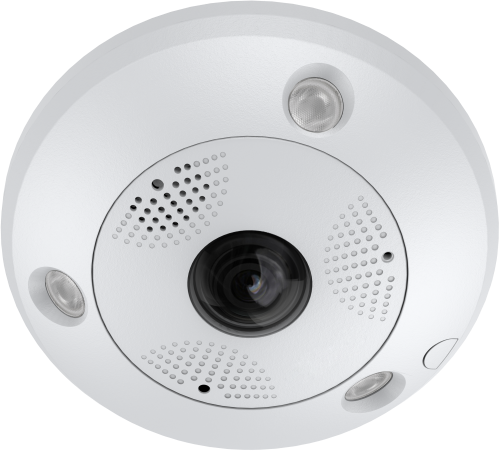

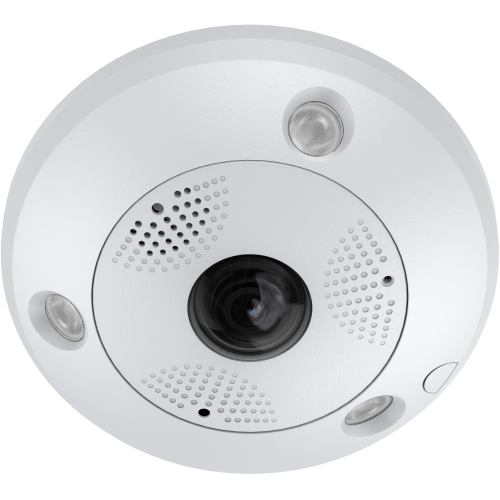

LTS Platinum 12MP IP Fisheye Camera with 2.0mm Fixed Lens (CMIP75122NF-SE)

LTS Platinum 12MP IP Fisheye Camera - CMIP75122NF-SE

The LTS Platinum CMIP75122NF-SE is a 12-megapixel network fisheye camera built to cover an entire room or outdoor area from a single mounting point. Using a 1/1.7" progressive scan CMOS sensor paired with a 2.0mm fixed lens, it captures ultra-wide 4000 x 3000 resolution imagery at up to 20fps, giving installers a true 360° ceiling view or a 180° wall view from one device. It's a practical choice for retail stores, warehouses, lobbies, and open-plan offices where traditional fixed or PTZ cameras would need multiple units to achieve the same coverage.

Key Features

• 12MP Ultra-Wide Imaging: Delivers 4000 x 3000 resolution stills and video at up to 20fps for sharp, detailed panoramic footage.
• 2.0mm Fixed Fisheye Lens: Provides a 180° field of view in wall-mount orientation or a full 360° view when ceiling-mounted.
• Multiple Viewing Modes: Supports up to 18 live-view display layouts, including virtual PTZ, panorama, and quad-view dewarping options.
• Matrix IR Illumination: Three independently controlled 850nm IR LEDs extend clear night vision up to roughly 15m (50ft).
• Smart Video Analytics: Includes onboard behavior analysis and anomaly/exception detection to help flag unusual activity automatically.
• H.265/H.265+ Compression: Efficient encoding (Profile S/G) reduces bandwidth and storage needs without sacrificing image quality.
• Built-In Microphone & Speaker: Two-way audio support for on-site announcements or audio evidence capture.
• Rugged IP67/IK10 Housing: Weatherproof and impact-resistant construction suits both indoor and outdoor installations.
• Flexible Power Options: Runs on 12VDC or standard 802.3af PoE, drawing approximately 12W.

Ideal Applications

Because a single CMIP75122NF-SE can replace what would otherwise require several fixed cameras, it's especially well suited to spaces where full situational awareness matters, such as retail sales floors, banking halls, warehouses, car parks, reception areas, and open ceilings in commercial buildings. Its IP67/IK10 rating also makes it suitable for covered outdoor areas like loading docks or building entrances that see high foot traffic.

What's in the Box

• CMIP75122NF-SE 12MP IP Fisheye Camera
• Mounting screws and drill template
• Quick start guide
• Waterproof cable gland/connector

Frequently Asked Questions

Can this camera be mounted on a wall as well as a ceiling?
Yes. The 2.0mm fisheye lens supports a 180° field of view for wall mounting and a full 360° panoramic view when installed on a ceiling.

What storage does the camera support?
It accepts a microSD card up to 256GB for onboard recording alongside standard NVR integration.

Does it work with existing PoE switches or NVRs?
Yes, it is powered via 802.3af PoE (approximately 12W) or 12VDC, and integrates with LTS Platinum NVRs and most standard ONVIF-compatible recording systems.
