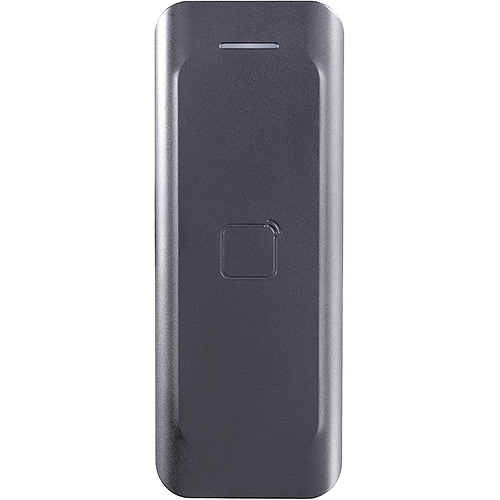

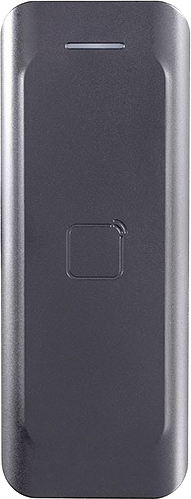

LTS LTK1802M Mifare 13.56MHz Slim Card Reader with Wiegand Output

LTS LTK1802M Mifare Slim Card Reader

The LTS LTK1802M is a compact, weatherproof MIFARE card reader designed for reliable access control at doors, gates, and secured entry points. Built with an 8-bit Wiegand processor and a 13.56MHz read frequency, it identifies MIFARE Classic credentials quickly while maintaining a slim, low-profile housing that suits both indoor and outdoor mounting locations. Its IP65-rated enclosure and wide operating temperature range make it a practical choice for Australian conditions, from covered commercial entries to exposed perimeter doors.

Key Features

• MIFARE Classic Compatibility: Reads standard 13.56MHz MIFARE cards and fobs in line with the ISO 14443-A radio frequency standard.
• Wiegand Output: Uses an 8-bit Wiegand processor for straightforward integration with common access control panels and controllers.
• IP65 Weatherproof Housing: Sealed against dust and water ingress, suitable for sheltered outdoor installation as well as indoor use.
• Wide Operating Range: Rated for continuous operation from -20°C to 65°C, supporting harsh climates and unconditioned spaces.
• Status Indicators and Beeper: Built-in power and status LEDs plus an audible beeper provide instant feedback on read success or failure.
• Self-Recovering Design: Watchdog circuitry helps the reader recover automatically from unexpected faults, supporting long-term reliability.
• Slim, Stylish Profile: Compact dimensions of approximately 43.3mm (W) x 115.9mm (H) x 17mm (D) suit narrow door frames and mullions.
• Simple Wall Mounting: Ships ready for surface mounting with screws included, simplifying installation on most substrates.

Ideal Applications

The LTK1802M suits small to mid-sized access control deployments where a dependable, no-frills card reader is needed at a single door or a bank of entries. It pairs well with LTS access control panels and third-party Wiegand-compatible controllers, making it a fitting option for offices, retail premises, warehouses, and residential complexes looking to control entry with MIFARE cards or key fobs rather than PIN codes alone.

What's in the Box

• LTK1802M Mifare Card Reader
• Mounting screws and wall-mount hardware
• Quick installation reference

Frequently Asked Questions

Does the LTK1802M include a keypad?
No. This is the card-only variant. A keypad-equipped version, the LTK1802MK, is available separately for sites that need PIN entry as a secondary authentication method.

What output protocol does this reader use?
The LTK1802M communicates via 8-bit Wiegand, allowing it to connect to most standard access control panels that support Wiegand-format readers.

Is the reader suitable for outdoor doors?
Yes, its IP65 rating and -20°C to 65°C operating range make it suitable for sheltered outdoor entries as well as indoor installations.
