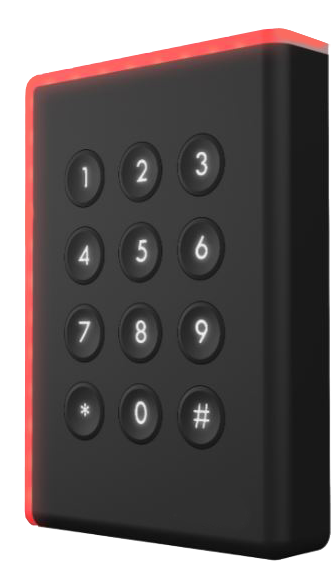

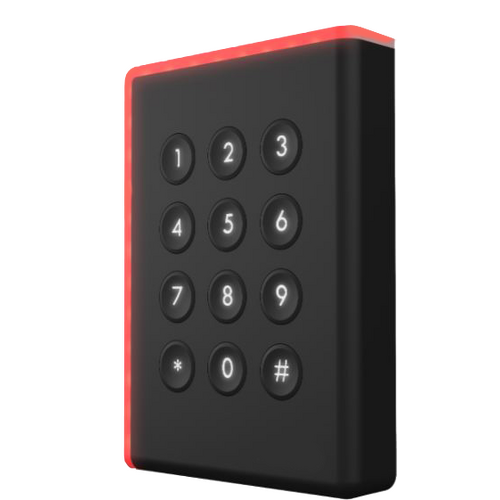

LTS LTK1101MAU Weatherproof Keypad & Mifare RFID Card Reader

LTS LTK1101MAU Keypad & Mifare RFID Reader

The LTS LTK1101MAU is a rugged, single-gang access control reader that combines a numeric keypad with a built-in Mifare RFID card reading module. Designed for both indoor and outdoor door entry points, it gives installers a flexible, budget-friendly way to add card, fob, or PIN-code entry to any access control panel that supports RS-485 or Wiegand wiring. Its weatherproof housing and wide operating temperature range make it suitable for external doors, gates, car parks, and other exposed entry points across Australian sites.

Key Features

• Dual credential support: Combines a Mifare 13.56MHz card/fob reader with a physical keypad for PIN entry, allowing single or dual-factor access.
• Selectable output protocol: Switches between RS-485 and Wiegand via an internal DIP switch, making it compatible with a wide range of third-party and LTS access control panels.
• 32-bit processor: A high-speed onboard processor ensures fast, reliable card reads and keypad response times.
• IP65 weatherproof rating: Sealed housing protects internal electronics from dust and water ingress, suitable for covered outdoor installation.
• Wide operating temperature range: Rated from -30°C to 60°C, allowing reliable operation in harsh outdoor conditions typical of Australian climates.
• Low-voltage 12V DC power: Simple integration with standard access control power supplies.
• Compact single-gang design: Slim wall-mount profile (88 x 123 x 21mm) fits standard single-gang wall boxes for tidy installation.
• Mifare Classic compatibility: Works with standard ISO 14443-A Mifare cards and fobs commonly used across commercial access control systems.

Typical Applications

The LTK1101MAU is well suited to office entrances, staff-only doors, warehouses, plant rooms, and residential common areas where a simple, reliable card-and-code reader is needed. Because it can be wired via RS-485 or Wiegand, it integrates easily into new or existing access control deployments alongside LTS door controllers, third-party panels, or standalone access control terminals, making it a practical retrofit option for upgrading older keypad-only systems to card-based credentials.

What's in the Box

• LTK1101MAU Keypad & Mifare RFID Reader unit
• Wall mounting plate/back box bracket
• Mounting screws and fixings
• Quick installation reference

Frequently Asked Questions

Does the LTK1101MAU work with any access control panel?
It supports both RS-485 and Wiegand output, selectable via an internal DIP switch, so it is compatible with most standard access control panels that accept one of these protocols.

Can this reader be installed outdoors?
Yes, its IP65-rated enclosure and -30°C to 60°C operating range make it suitable for covered or semi-exposed outdoor entry points.

What type of cards does it read?
It reads standard 13.56MHz Mifare Classic cards and fobs compliant with the ISO 14443-A standard, in addition to accepting keypad PIN codes.
