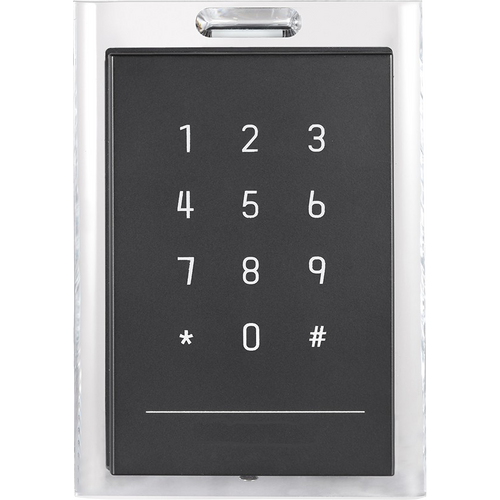

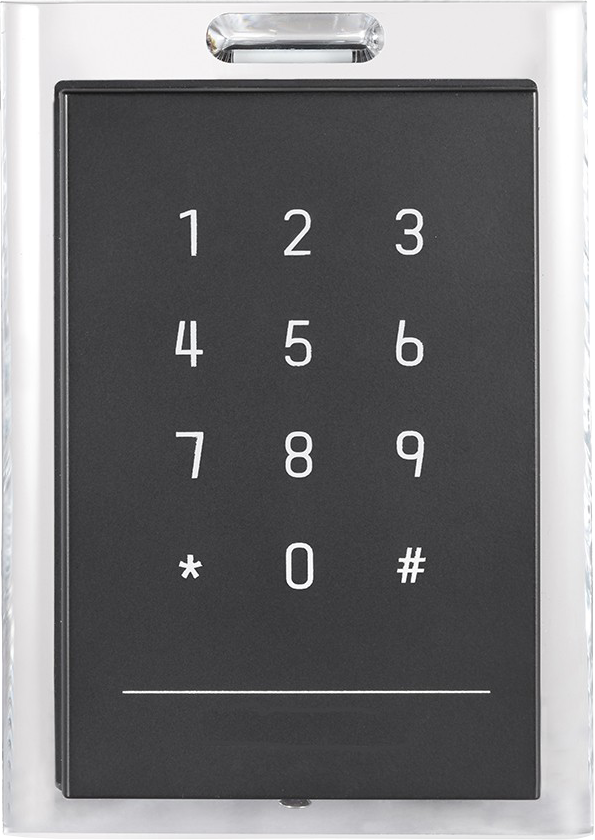

LTS MIFARE Keypad & RFID Card Reader (LTK1101MK)

LTS MIFARE Keypad & RFID Card Reader (LTK1101MK)

The LTS LTK1101MK combines a numeric keypad with a built-in 13.56MHz MIFARE card reading module, giving installers a flexible dual-credential access control terminal in a single weatherproof housing. Designed for wall mounting on a standard single-gang plate, it suits both indoor and outdoor entry points where a simple, reliable card-or-code solution is required. The reader communicates over industry-standard Wiegand and RS-485 protocols, making it easy to integrate with most third-party and LTS access control panels already deployed on site.

Key Features

• Dual authentication: Reads MIFARE cards/fobs and accepts a numeric PIN via the integrated 12-key keypad (0-9, *, #).
• Selectable code length: DIP switch allows configuration for either 8-digit or 10-digit Wiegand output to match your controller.
• 32-bit processor: Fast, stable read performance with a typical card sensing range of up to 50mm.
• Weatherproof housing: Rated IP65 for protection against dust and water ingress, suitable for covered outdoor entries.
• Wide operating range: Functions reliably across a broad temperature range, from well below freezing to hot climates.
• Status feedback: Built-in audible beeper and LED indicators confirm power and read status at a glance.
• Self-monitoring design: Watchdog function helps the reader recover automatically from exceptions, supporting long-term reliability.
• Durable construction: PC+ABS shell with a PMMA front panel resists everyday wear in commercial environments.
• Simple 12V DC power: Low power draw with straightforward wiring into new or existing access control installations.

Reliable Access Control for Everyday Entry Points

The LTK1101MK is well suited to offices, retail premises, apartment blocks, warehouses, plant rooms, and other commercial or light-industrial doors where a straightforward card-and-code reader is needed rather than a full biometric terminal. Because it outputs standard Wiegand signalling, it can typically be paired with existing LTS or third-party door controllers, letting integrators add or replace readers without redesigning the whole access control system. The single-gang wall mount and compact keypad footprint make it a practical retrofit for standard wall boxes.

What's in the Box

• LTK1101MK Keypad & MIFARE RFID Reader unit
• Mounting screws and wall-mount hardware
• Quick installation reference

Frequently Asked Questions

Does the LTK1101MK work with any access control panel?
It outputs standard Wiegand and supports RS-485 communication, so it is compatible with most Wiegand-based access control panels, not just LTS controllers, though you should confirm wiring and protocol settings against your specific panel.

Can I use the keypad without a card, or the card without the keypad?
Yes. The unit supports card-only entry, PIN-only entry, or both together, depending on how your access control panel and site policy are configured.

Is this reader suitable for outdoor use?
Its IP65-rated housing provides strong resistance to dust and water, making it appropriate for sheltered or semi-exposed outdoor entry points as well as indoor doors.
