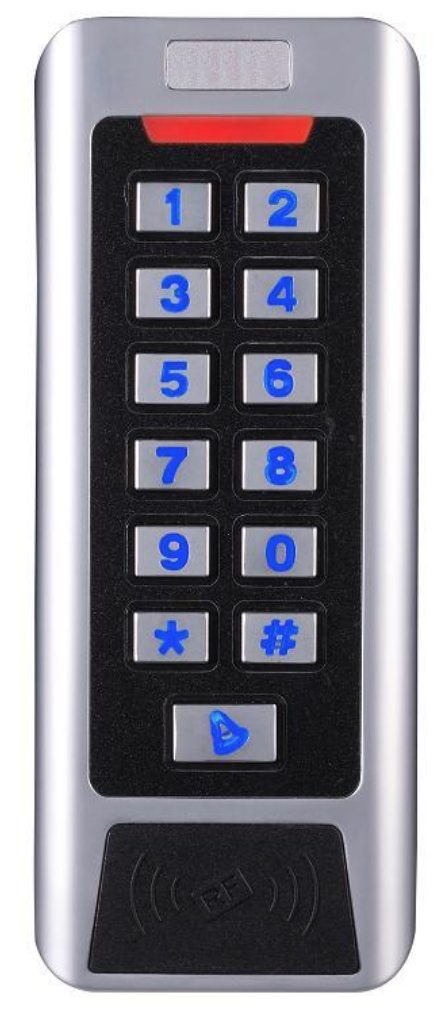

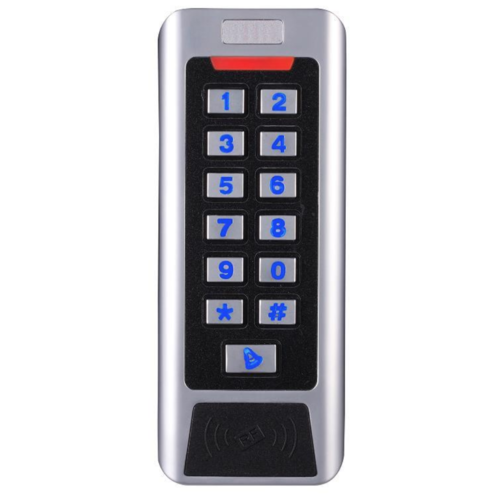

Stand-Alone Keypad & RFID Reader (2x relays)

Description
CC Series is a standalone for two doors, support card, pin, card+pin access way. It is
with 2 relays to control 2 doors and supports up to 2000 users in total,each user can
possess one card and one pin. It can directly drive Lock,Alarm, Ring Bell, and also can
connect with Exit Button and Door Contact.
There are 7 working mode with this device:
1. Wiegand Reader.
2. Standalone for single door.
3. standalone for two doors.
4. with external reader for two doors.
5. two units interlocked for two doors.
6. Anti-passback for single door.
7. Anti-passback for two door.
Besides, it also supports 1 Master code, 2 Manager card, 2 Anti-duress Card users and
2 Anti-duress PIN users, providing users with easy operations and safety reliability.
Features
1. Pure Zinc alloy case; waterproof conform to IP 68.
2. Built-in 125KHz OR 13.56MHz card reader (CC1).
Built-in 125KHz and 13.56MHz card reader (CC2).
3. Perfect digital backlit key, the back light can be set to Normal ON, Normal OFF or
Human-Approach ON.
4. With anti-tamper Alarm, door contact Alarm, Anti-duress Alarm function.
5. Add and delete card user quickly With Manager cards.
6. Can register and delete user via keypad.
7. Master can open the door when entering the setting status.
8. Multi working modes: reader, one door, two door, interlock, anti-passback and so on,
suitable for many occasions.
Specification
Input Voltage AC/DC 12V
Idle Current<25mA
Lock output load<1A
Alarm output load<1A
Ring bell load<1A
Card reading distance 40mm Max
Card Frequency: 125KHz for EM and HID
13.56MHz for Mifare
Card transmission format 26-37 bit wiegand
Keypad transmission format: 4bit, 8bit and Virtual card number
Operating Temperature: -45¬?C~55¬? C
Operating Humidity: 0%~95%
