LTS LTK2804 4-Door Access Controller with Metal Enclosure

LTS LTK2804 4-Door Access Controller

The LTS LTK2804 is a networked access control panel built to manage up to four doors from a single, secure unit. Housed in a lockable metal enclosure, it combines a 32-bit high-speed processor with TCP/IP connectivity, encrypted communications, and generous on-board storage, making it a practical choice for offices, retail sites, warehouses, and multi-tenant buildings that need reliable, centrally managed door control.

Key Features

• 4-Door Capacity: Connects and manages up to four Wiegand card readers from one controller, supporting both W26 and W34 formats for broad reader compatibility.
• 32-Bit Processor: A high-speed processor handles access decisions and network communication with minimal latency.
• TCP/IP Networking: Self-adaptive network interface allows straightforward integration into existing LAN infrastructure for remote monitoring and control.
• Large On-Board Memory: Stores up to 10,000 authorised cards and 50,000 event records, retained even during power loss.
• Encrypted Data Transfer: Communication between the controller and management software is encrypted to protect against unauthorised access to card and event data.
• Anti-Passback & Authentication: Includes anti-passback logic and supports authentication passwords when paired with keypad readers, reducing the risk of card sharing or tailgating.
• Video Verification & Log Search: When paired with compatible VMS software, event logs can be searched alongside linked video playback for faster incident review.

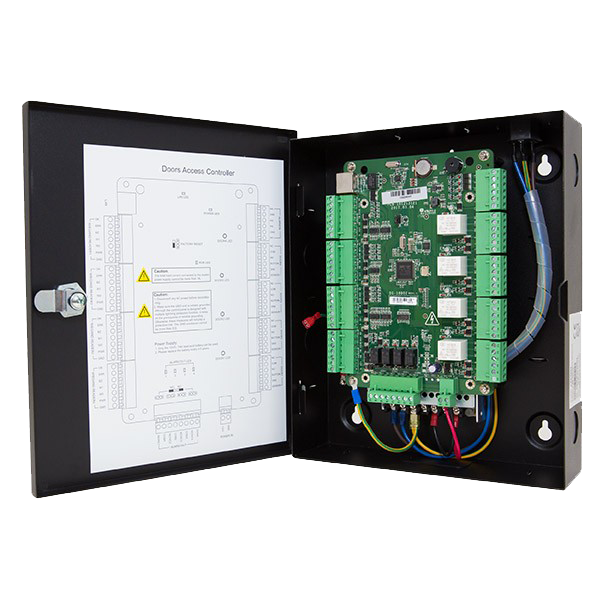

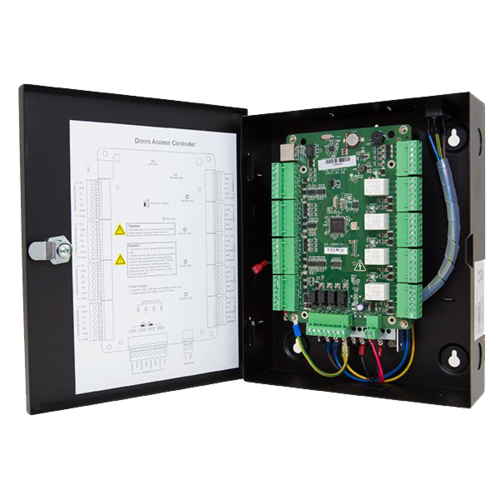

• Secure Metal Housing: Ships in a lockable metal cabinet with a built-in 12V DC / 8.5A power supply, protecting internal wiring and terminals.
• Remote & App Management: Supports remote door control, first-card unlock, super card/password functions, and online firmware upgrades; can be paired with an X-VMS server for smartphone app access.

Ideal Applications

The LTK2804 suits small to mid-sized commercial sites that need to control several entry points without deploying multiple standalone controllers. Typical installations include office suites, retail stores, medical clinics, schools, and warehouses where administrators want centralised card management, audit-ready event logs, and the option to layer on video verification for higher-risk doors such as server rooms, stock areas, or after-hours entries.

What's in the Box

• LTK2804 4-door controller board pre-installed in metal enclosure
• Lockable enclosure with key
• Built-in 12V DC / 8.5A power supply
• Mounting hardware and terminal connectors
• Quick start guide

Frequently Asked Questions

How many readers can the LTK2804 support?
It supports up to four Wiegand readers (W26/W34), one per door, allowing full four-door management from a single unit.

Can I manage the LTK2804 remotely or via an app?
Yes. The controller can be configured and managed through compatible web-client software, and app-based access is available when paired with an X-VMS server.

What happens to stored data if power is lost?
Card and event data are retained in non-volatile memory, so records are not lost during a power interruption.

Is the enclosure suitable for outdoor installation?
The unit is rated for a wide operating temperature range, but as with most indoor-grade panel enclosures, it should be installed in a protected, weatherproof location such as a comms room or indoor cabinet.
