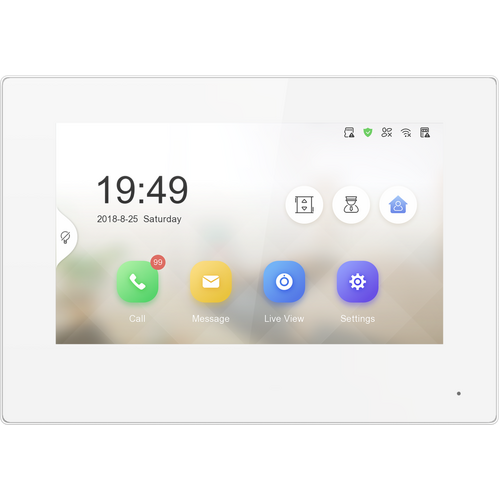

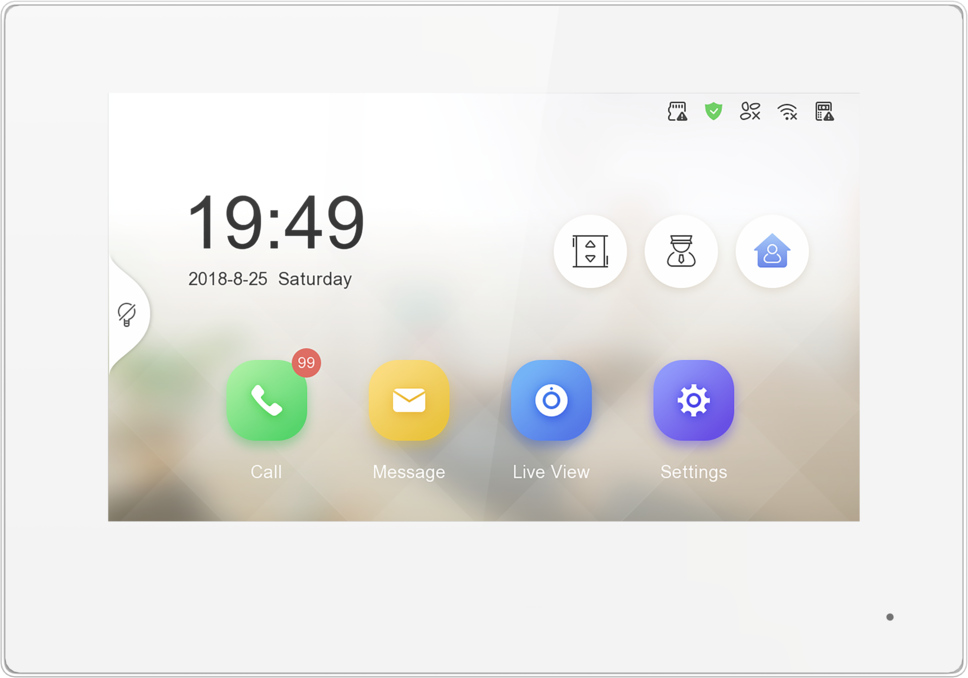

LTS 2-Wire 7" Touchscreen Video Intercom Indoor Monitor (White)

LTS 2-Wire 7" Touchscreen Video Intercom Indoor Monitor (White)

The LTS LTH-D301GY-WIFI-2 is a 7-inch touchscreen indoor monitor designed for LTS's 2-Wire video intercom platform. Instead of running separate power and network cabling to every apartment or office, this monitor communicates over a simple two-conductor cable back to an LTS 2-Wire distributor, making it a practical choice for new builds and retrofits where re-cabling is costly or impractical. Finished in a clean white housing, it pairs with LTS 2-Wire door stations to let residents see, hear, and unlock the door for visitors from indoors or remotely via the LTS Connect app.

Key Features

• 7-inch capacitive touchscreen with a bright, high-resolution colour display for clear video calls and menu navigation.
• True 2-wire operation - power and signal travel over a single twisted pair back to the LTS 2-Wire distributor (e.g. MD06-2), simplifying wiring in multi-unit buildings.
• Hands-free built-in microphone and speaker for natural two-way conversations with visitors at the door.
• Integrated Wi-Fi (802.11b/g/n) for pairing with the LTS Connect mobile app, enabling remote call notifications, live view, and door release.
• Micro SD card slot (up to 32GB) for local storage of snapshots and voice messages.
• Wide operating temperature range of -10°C to 50°C, suitable for most indoor installation environments.
• 24VDC powered via the 2-wire distributor, removing the need for a dedicated power supply at each monitor.
• Multi-monitor support - additional indoor stations can be added so a single apartment can answer calls from multiple rooms.
• Compact wall-mount profile at approximately 200 x 140 x 15.1mm, finished in white to blend with most interiors.

Ideal for Apartments, Townhouses, and Small Offices

Because it eliminates the need for standard Ethernet or Cat5e home runs, this monitor is particularly well suited to multi-dwelling unit (MDU) projects, strata retrofits, and older buildings where pulling new network cable to every door is difficult. Installers can configure the system using LTS's NVMS V3 software, integrate it with existing LTS door stations, and give residents the convenience of checking on visitors and releasing the door lock straight from the touchscreen or their smartphone.

What's in the Box

• LTH-D301GY-WIFI-2 7" Indoor Monitor (White)
• Wall mounting bracket and screws
• Quick installation guide

Frequently Asked Questions

Q: Does this monitor work with any door station, or only LTS 2-Wire models? It is designed to operate on LTS's 2-Wire intercom platform and should be paired with compatible LTS 2-Wire door stations and distributors for correct operation.

Q: Can I access the intercom remotely from my phone? Yes, the built-in Wi-Fi lets you link the monitor to the LTS Connect app for remote call alerts, live viewing, and door release when away from home.

Q: How many of these monitors can be installed in one apartment? Multiple indoor monitors can be linked to the same door station so calls can be answered from several rooms within the same unit.

Product Images & Diagrams

Additional Resources

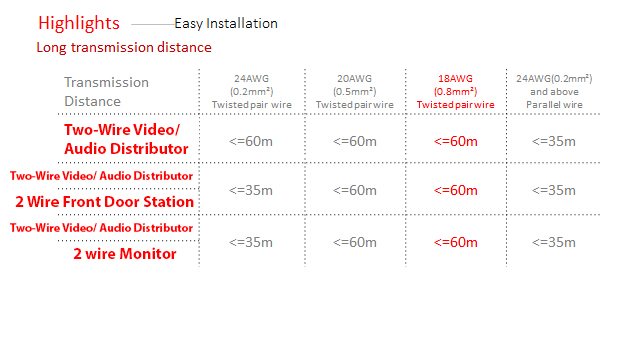

• Cabling Guide - Link
