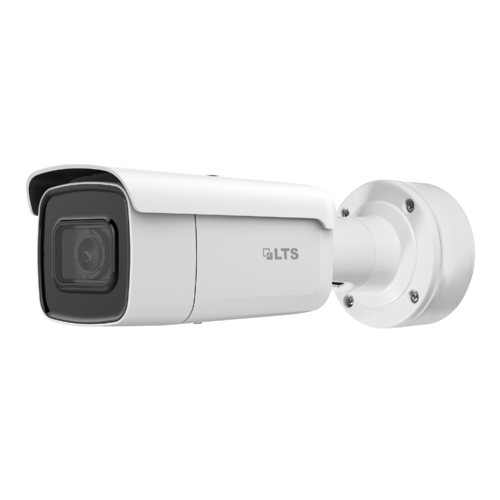

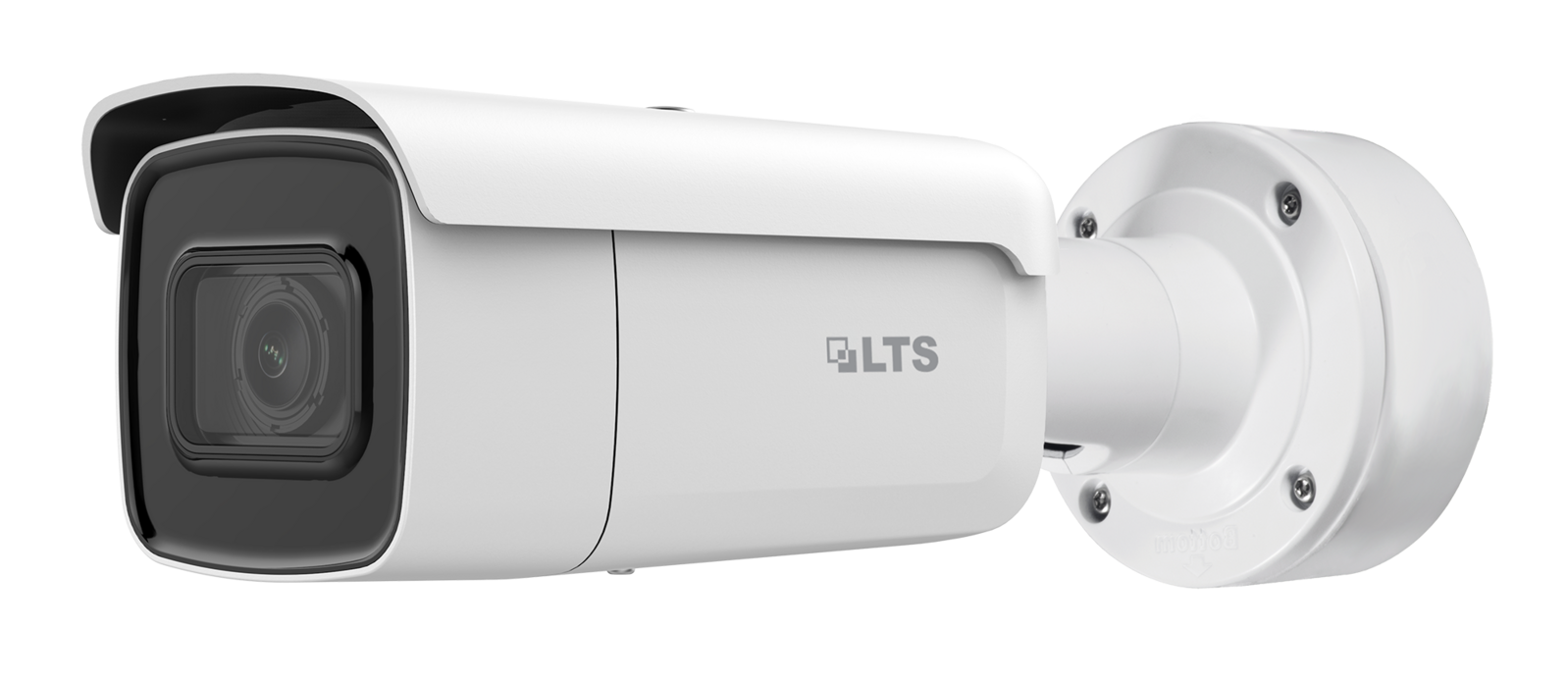

LTS Platinum 6MP Motorized Varifocal IP Bullet Camera (CMIP9763NW-SZ)

LTS Platinum CMIP9763NW-SZ 6MP Motorized Varifocal IP Bullet Camera

The CMIP9763NW-SZ is a 6-megapixel outdoor IP bullet camera from the LTS Platinum series, built for installers who need sharp detail, flexible framing, and dependable night-time performance in a single weatherproof housing. A 2.8-12mm motorized varifocal lens lets you adjust the field of view remotely from the NVR or software, removing the guesswork of manual zoom and focus during installation. Paired with a low-light sensor and long-range IR illumination, this bullet camera is a solid choice for perimeter monitoring, loading docks, car parks, and building entry points where both wide coverage and zoomed-in identification are needed from the same fixed position.

Key Features

• 6MP high-resolution sensor capturing up to 3072 x 2048 at 20fps for crisp, detailed footage
• 2.8-12mm motorized varifocal lens with remote zoom and focus adjustment, covering a field of view from roughly 88° to 27° horizontally
• Ultra-low-light performance rated at 0.018 lux (F1.6, AGC on), with true black-and-white imaging down to 0 lux thanks to built-in IR
• Matrix IR illumination with an effective range up to 50m at 850nm for consistent night-time coverage
• H.265 / H.265+ compression with Profile S/G smart encoding to reduce bandwidth and storage requirements without sacrificing image quality
• 120dB true WDR, BLC and 3D DNR to balance harsh backlight and reduce noise in low-light scenes
• Onboard microSD/SDHC/SDXC storage up to 128GB for local recording redundancy
• Two-way audio support via dedicated input/output for audio monitoring or alerts
• IP67-rated weatherproof housing suited to Australian outdoor conditions, powered via 12VDC or 802.3at PoE (18W)

Built for Demanding Outdoor Surveillance

This camera suits sites where a single vantage point needs to cover both a wide area and finer detail, such as warehouse yards, retail car parks, school perimeters, and multi-tenant commercial buildings. The motorized lens allows integrators to fine-tune the shot after mounting, saving time on ladders and re-positioning, while the combination of WDR and Matrix IR keeps footage usable around the clock, from bright midday sun to total darkness.

What's in the Box

• CMIP9763NW-SZ IP Bullet Camera
• Mounting bracket and screws
• Installation template
• Waterproof cable gland/connectors
• Quick start guide

Frequently Asked Questions

Does this camera support Power over Ethernet?
Yes, it accepts 802.3at PoE (up to 18W) or a standard 12VDC power supply, giving installers flexibility depending on existing cabling.

Can the zoom be adjusted after the camera is mounted?
Yes, the 2.8-12mm lens is motorized, so the field of view and focus can be adjusted remotely through compatible NVR or software interfaces without physically touching the camera.

Is this camera suitable for outdoor use in all weather?
Yes, it carries an IP67 ingress protection rating, making it suitable for exposed outdoor installation in typical Australian weather conditions.
