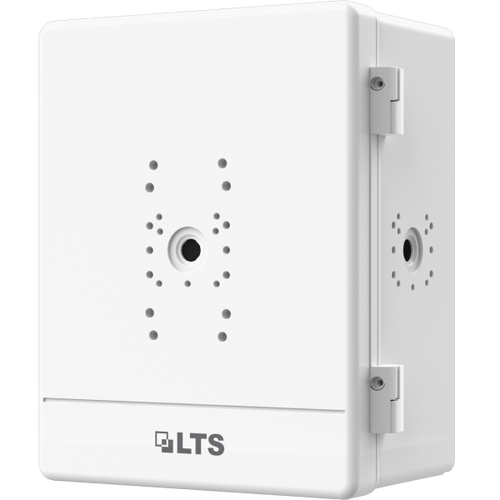

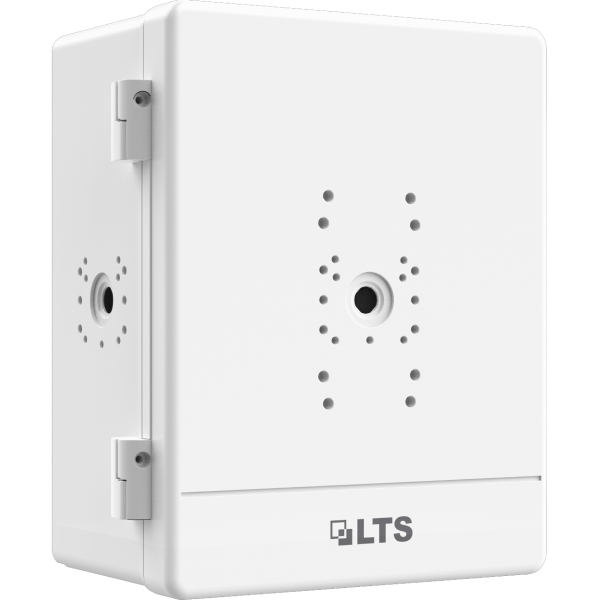

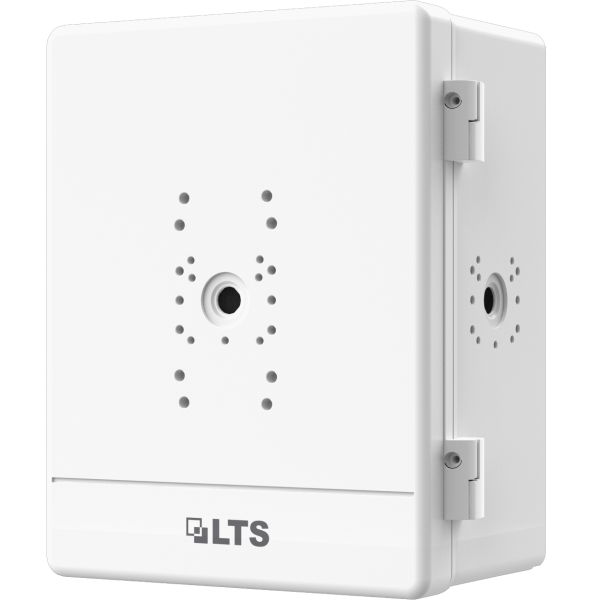

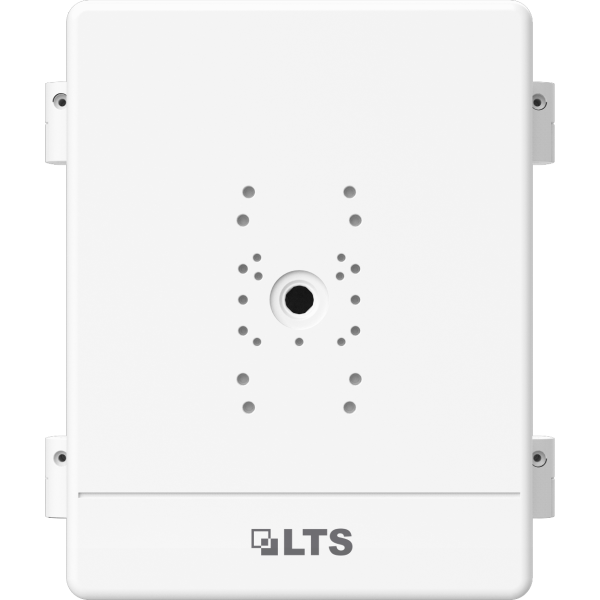

Outdoor CCTV Box

The LTS OutdoorBox-03 is a weatherproof outdoor surveillance enclosure for housing network, power and cabling gear at the camera location. It mounts to a pole or wall, so you can deploy cameras on car parks, perimeters, construction sites and remote poles without a separate cabinet.

Made from flame-retardant UL94-V0 PC/ASA polymer, it is rated IP66 against dust and water jets and IK10 for impact resistance. It operates from -40°C to 60°C.

Key features

• IP66 and IK10 protection
• Flame-retardant UL94-V0 PC/ASA housing in LTS White (RAL 9003)
• Pole mount (80–200mm, metal straps included) or wall mount (installation plate included, M8 bolts sold separately)
• Front panel carries up to 8kg and side panels up to 5kg, so you can mount cameras directly on the box
• Internal pegboard, shelf and DIN rail for switches, PSUs and media converters
• Waterproof cable connectors and glands included
• Works with LTS IP cameras, PTZs and IP horn speakers (see spec sheet for compatible brackets)

Specifications

• Dimensions: 449 x 388 x 225mm
• Weight: 5.2kg
• Operating temperature: -40°C to 60°C, humidity up to 95% non-condensing

Learn more in our Outdoor Surveillance Box guide.
