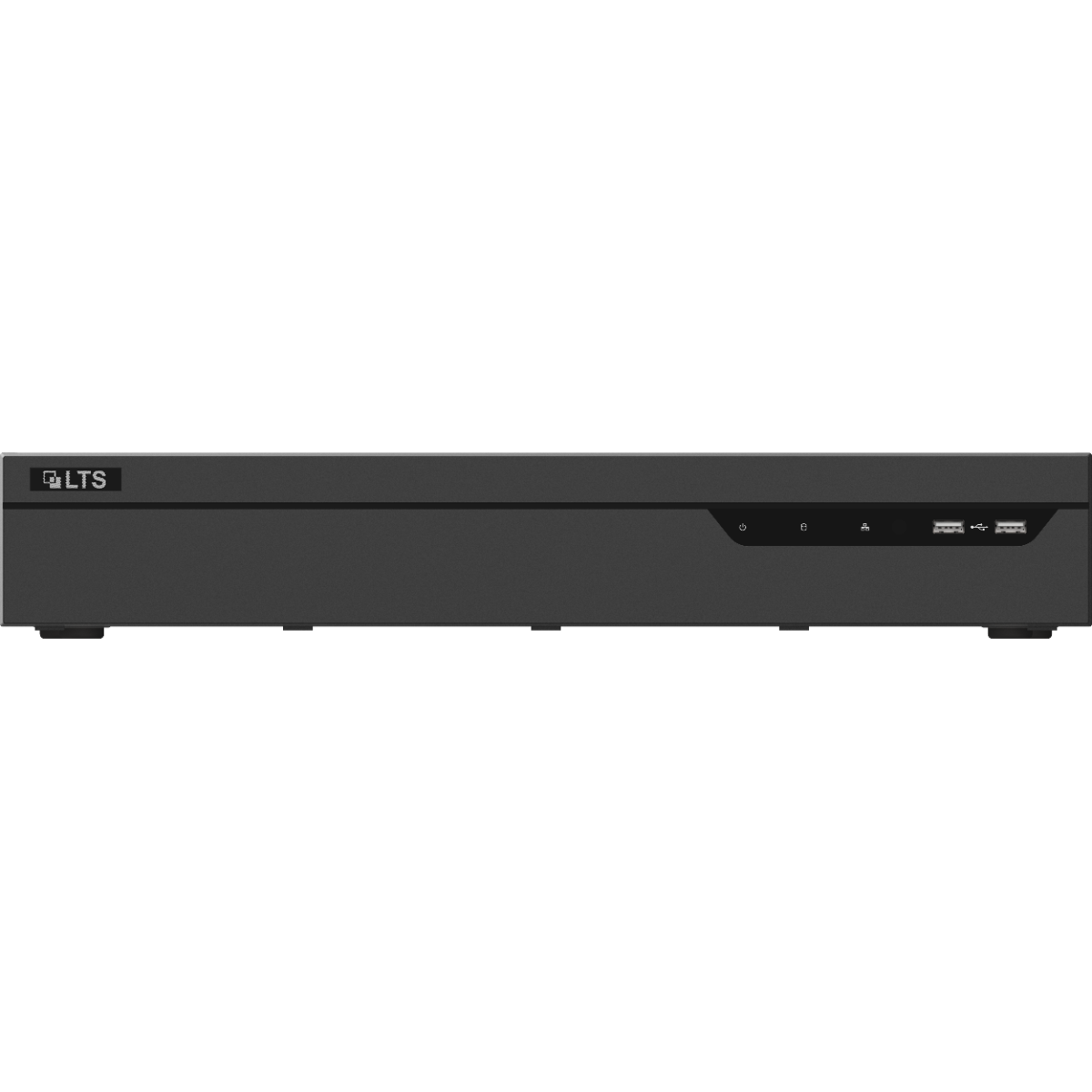

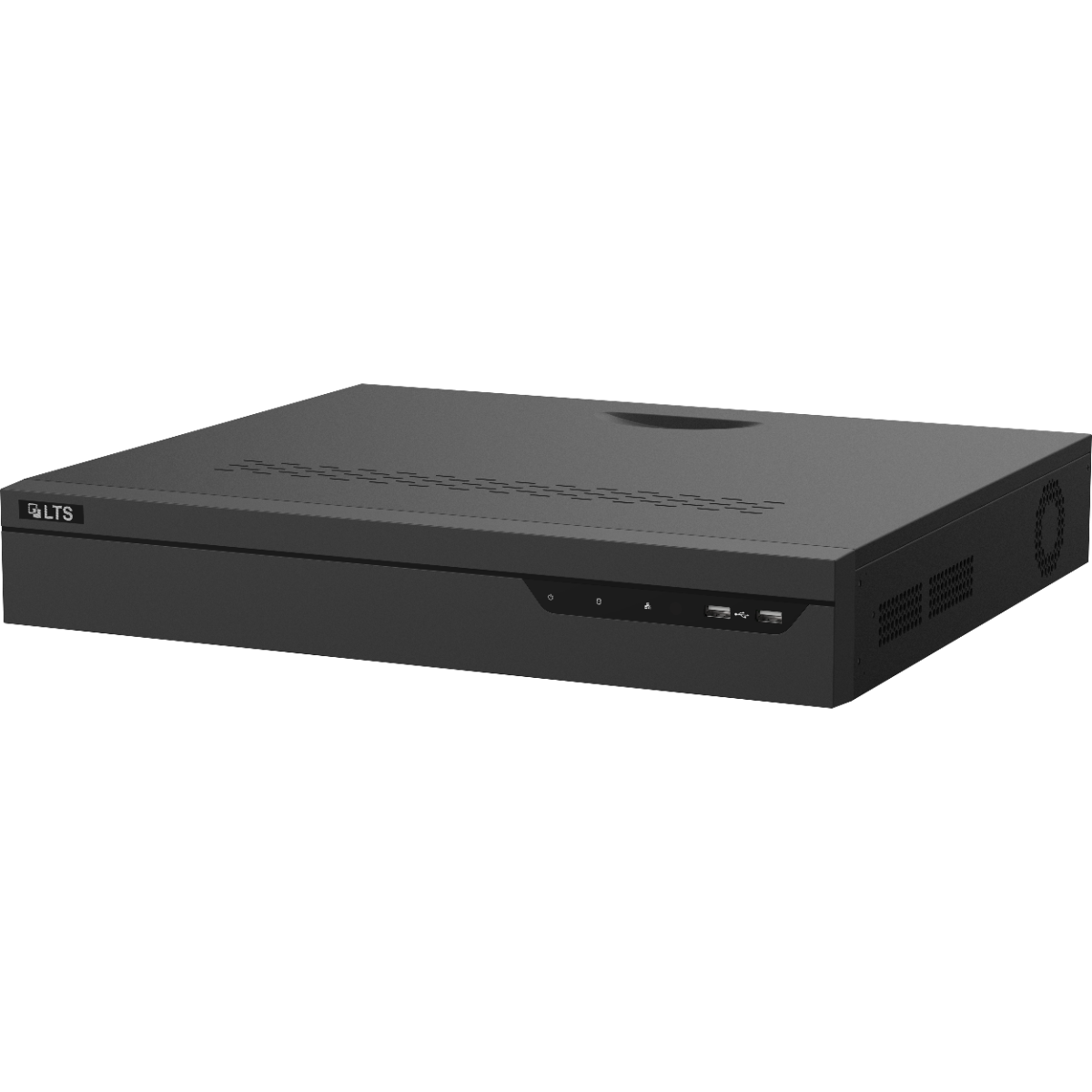

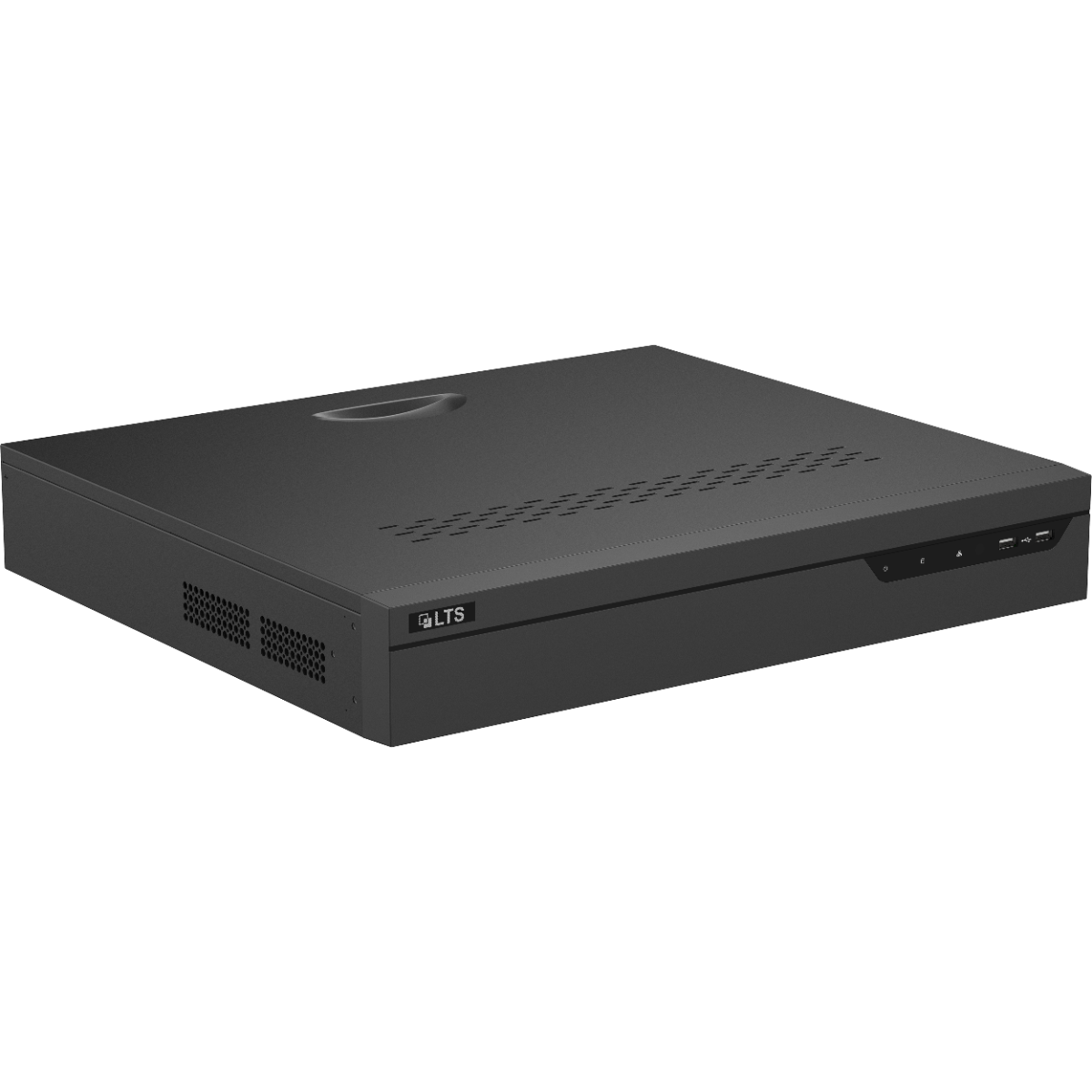

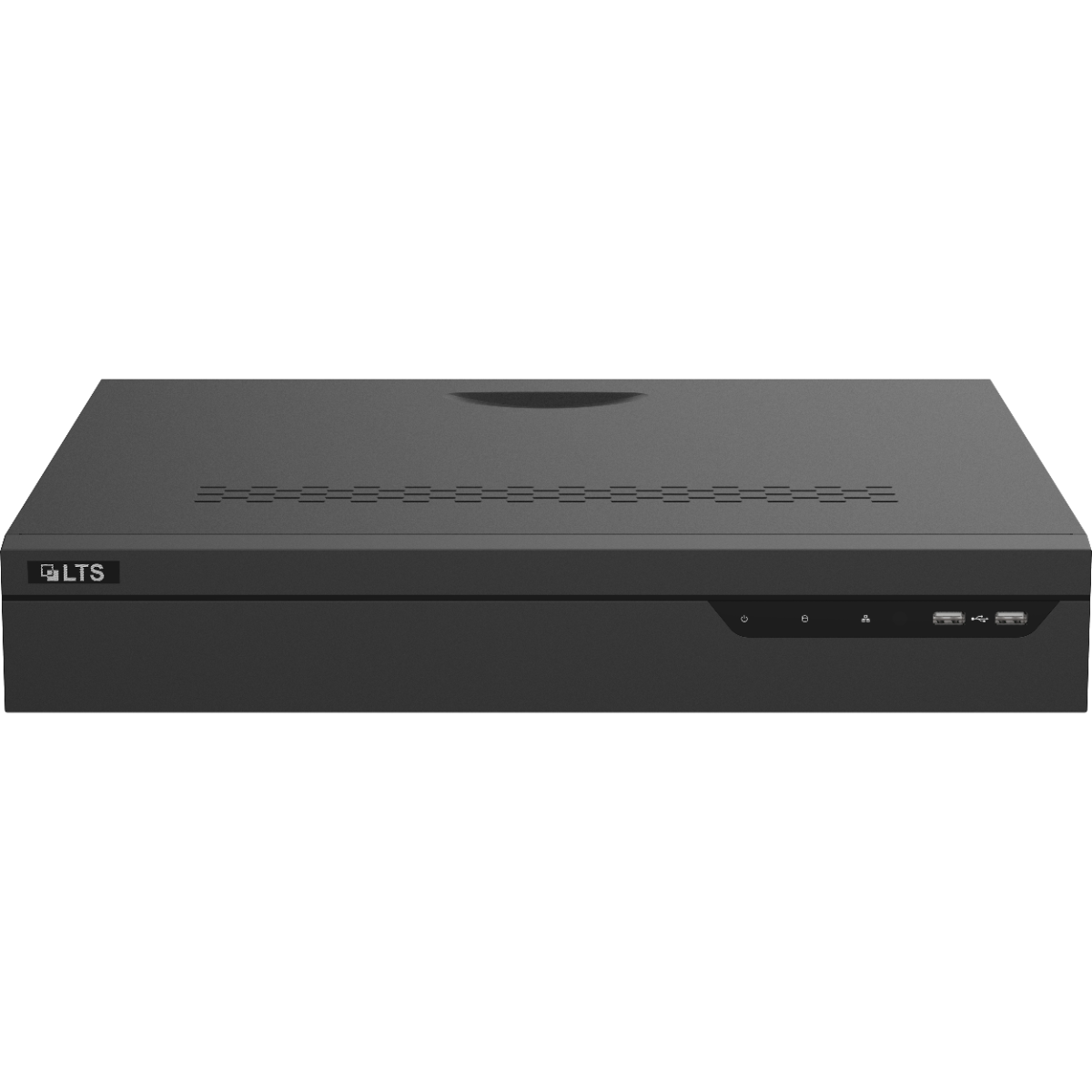

The LTS Platinum Plus LTN8932EDV-P16 is a 32-channel 1.5U DeepVision network video recorder with 16 PoE ports. The USA page calls it an entry-level semantic-search model: 32-channel, 4K, 256 Mbps, recording up to 12 MP, 16 PoE, 4K output, H.265/H.265+, two-way audio and alarm, four HDD bays up to 16 TB each. The requested catalogue string LTN88932EDV-P16 does not appear on LTsecurityinc.com. This page is the live SKU LTN8932EDV-P16. Available in Australia from LTS Security.

DeepVision and Direct Search

Up to 32-channel DeepVision and Direct Search. The specification table says DeepVision runs on all channels when cameras support MD 2.0 and Direct Search is enabled, modelling up to 50,000 targets a day. Search language is English. Up to four IP speakers can be connected.

Decoding figures, as published

The product page says up to 4 channels at 12 MP, 6 channels at 8 MP, 12 channels at 4 MP, or 24 channels at 1080p. The specification table says AI on: 12 channels at 1080p (30 fps), and AI off: 24 channels at 1080p (30 fps). Synchronous playback is 16 channels.

Lines on the same sheet that were not used as the specification

A function block on the spec sheet also says 1-channel video analysis, 1-channel facial recognition for video or 2-channel facial recognition for face pictures, and two 10/100/1000 Mbps Ethernet ports. The specification table on the same PDF says one RJ-45 10/100/1000 Mbps port, and it gives different facial-recognition channel counts. The table is what is listed below.

LTN8932EDV-P16 specifications

Model / SKU	LTN8932EDV-P16. Requested string LTN88932EDV-P16 was not found.
Series	Platinum Plus, IP / NVR, 1.5U, 32-channel
AI by NVR	Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision
AI by camera	Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
DeepVision	All channels when cameras support MD 2.0 and Direct Search is enabled. Up to 50,000 targets/day. Search language: English.
Face library	Up to 16 libraries, up to 50,000 pictures (each ≤ 1 MB, total ≤ 800 MB). Face-picture comparison: 8-ch.
Facial detection by NVR	Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Perimeter protection by NVR	Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch. All channels by camera.
Motion detection 2.0 by NVR	All channels, up to 4 MP (up to 8 MP with enhanced SVC)
IP video input	32-ch
IP speaker input	4-ch
Incoming / outgoing bandwidth	256 Mbps / 100 Mbps
HDMI	1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 at 60 Hz
VGA	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz. HDMI/VGA independent. CVBS: N/A.
Audio	1-ch RCA out (linear, 1 kΩ). Two-way 1-ch RCA (2.0 Vp-p, 1 kΩ).
Decoding format	H.265, H.265+, H.264, H.264+
Recording resolution	12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback	16-ch
Decoding capability	AI on: 12-ch at 1080p (30 fps). AI off: 24-ch at 1080p (30 fps). Page bullet also lists 4-ch at 12 MP, 6-ch at 8 MP, 12-ch at 4 MP, or 24-ch at 1080p.
Audio compression	G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2
Remote connection	128
API	ONVIF (profile S/G); SDK; ISAPI
Browsers listed	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above
Network	Specification table: 1 × RJ-45 10/100/1000 Mbps. Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS. LTS Connect is named in the function summary.
PoE	16 × RJ-45 10/100 Mbps. ≤ 200 W. IEEE 802.3af/at
Storage	4 × SATA, up to 16 TB per HDD
Serial	2 × RS-485 (half-duplex), 1 × RS-232. The interface drawing labels one port "RS-484".
Alarm in/out	16/4
USB	Front: 2 × USB 2.0. Rear: 1 × USB 3.0
Power supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 50 W without HDD
Working temperature	−10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10 to 90%
Dimensions (W × D × H)	440 × 391 × 72 mm (17.32 × 15.39 × 2.81 in)
Weight	≤ 11 lb without HDD. The spec sheet also prints 5 kg in the same line.
Other function lines	H.265+ stated to reduce storage by up to 75%. Stream over TLS is named. HDMI up to 4K.

FAQ

Is the SKU LTN88932EDV-P16?

That string was not on the USA site. The packaged product is LTN8932EDV-P16, the 32-channel 1.5U 16-PoE DeepVision NVR in the same series.

How many cameras versus PoE ports?

32 IP camera inputs and 16 PoE ports. The other cameras need a separate network connection. The sheet does not say the extra 16 channels are powered by this recorder.
