LTS Platinum 16-Channel NVR Kit with 8x 6MP Colour247 Turret Cameras

LTS Platinum 16-Channel NVR Kit with 8x 6MP Colour247 Turret Cameras

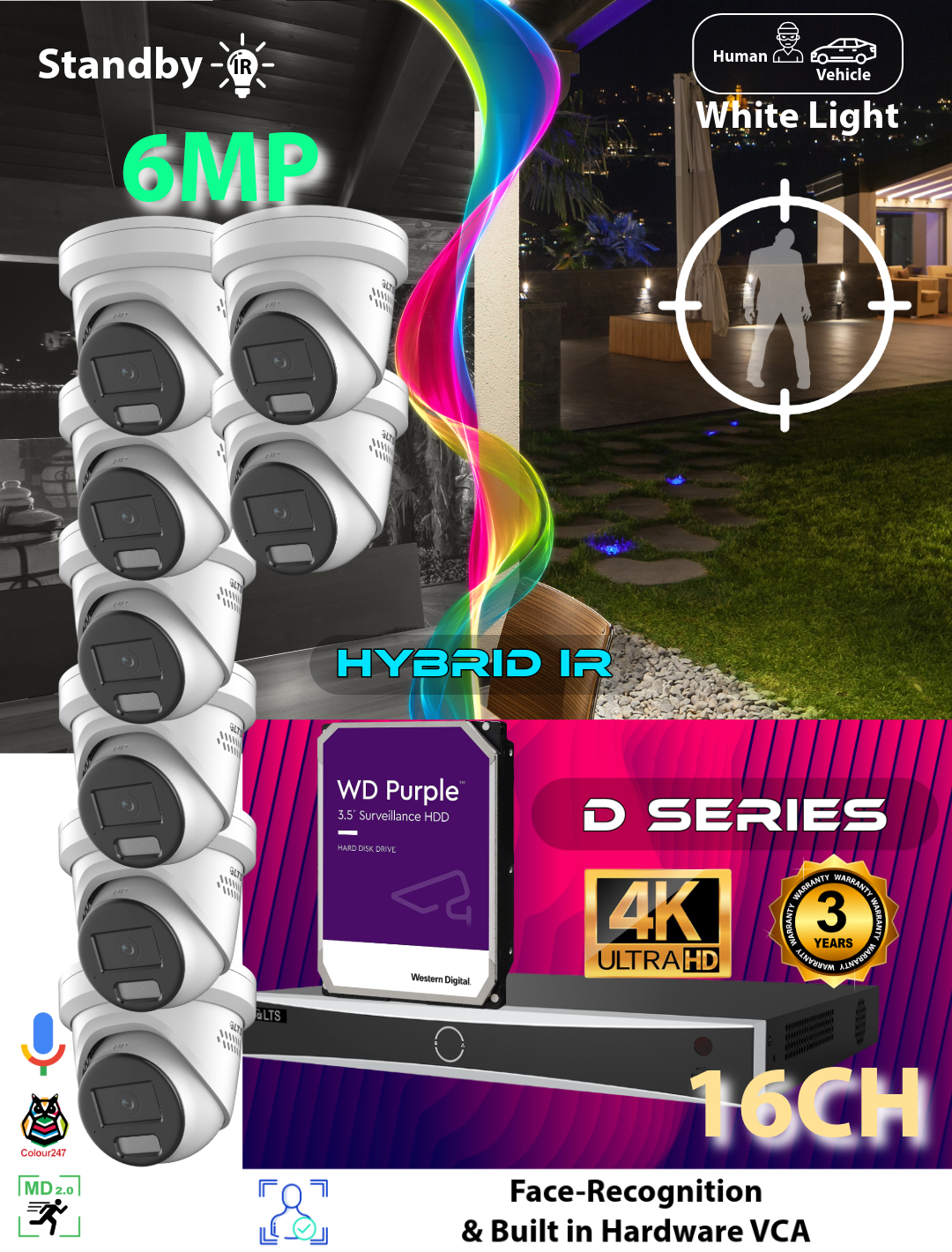

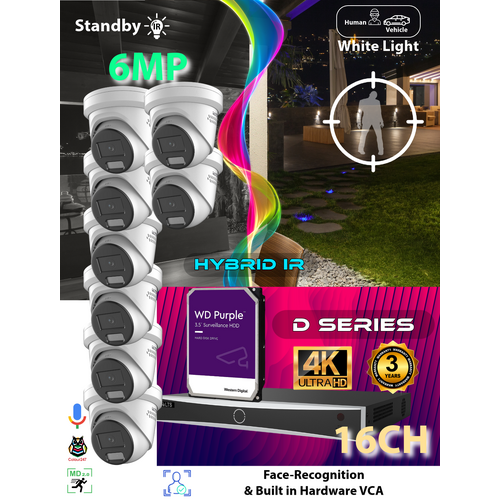

The LTSC166 is a complete, ready-to-install surveillance system from the LTS Platinum range, pairing a 16-channel PoE network video recorder with eight 6MP Colour247 hybrid-illumination turret cameras and a pre-installed 4TB security-grade hard drive. Designed for businesses and homes across Australia that need reliable, colour night-time footage rather than grainy black-and-white IR, this kit is built around LTS's Colour247 and MD 2.0 human/vehicle detection technologies for sharper identification and fewer false alerts.

Key Features

• Colour247 Hybrid Illumination: Cameras automatically switch between infrared and white-light illumination when a person or vehicle is detected, keeping footage in full colour rather than defaulting to black-and-white.
• MD 2.0 Human & Vehicle Detection: Deep-learning based analytics on both the cameras and the NVR help filter out false triggers from wind, pets, or shadows.
• 16 Built-in PoE Ports: The LTN8716D-P16N NVR powers and connects up to 16 IP cameras directly, removing the need for a separate PoE switch on smaller installs.
• Up to 12MP Recording Support: The NVR decodes and records up to 12MP resolution with H.265+/H.265/H.264+/H.264 compression for efficient storage use.
• 160Mbps Incoming Bandwidth: Supports smooth simultaneous recording and live viewing across all connected 6MP cameras.
• Face Capture & Comparison: Built-in 1-channel face capture with up to 4-channel face comparison on the NVR for enhanced identification at entry points.
• 4TB Security-Grade HDD Included: Pre-installed surveillance-rated hard drive built for continuous 24/7 read/write cycles.
• IP67 Weatherproof Cameras: The included turret cameras are rated for outdoor use in harsh Australian weather conditions.
• Flexible Video Outputs: Independent HDMI (up to 4K) and VGA (1080p) outputs let you connect to a range of monitors or TVs.

Built for Australian Homes and Businesses

This 16-channel kit suits properties that need coverage across multiple zones — think retail stores, warehouses, car yards, offices, or larger residential blocks. Because the cameras hold full colour even after dark, operators and police can more easily identify clothing colour, vehicle colour, or number plates on footage, rather than relying on grainy monochrome IR images. With eight cameras included and eight PoE ports still free on the NVR, the system also leaves room to expand coverage later without buying a new recorder.

What's in the Box

• 8 x CMIP3C62WI-28MDAL 6MP Colour247 Hybrid IR Turret Cameras
• 1 x LTN8716D-P16N 16-Channel PoE NVR with Face Recognition (1-ch)
• 1 x 4TB Security-Grade Hard Drive (pre-installed)

Frequently Asked Questions

Does this kit include network cables?
No. The cameras connect to the NVR's built-in PoE ports using standard Ethernet cabling, which is sold separately so you can choose the correct cable lengths for your site.

Can I add more cameras later?
Yes. The LTN8716D-P16N supports up to 16 channels in total, so you can connect eight additional PoE cameras to the remaining ports as your site grows.

What makes Colour247 different from standard night vision?
Standard IR cameras switch to black-and-white once light drops, while Colour247 cameras use hybrid illumination to keep recording in full colour, making it easier to identify people and vehicles at night.
