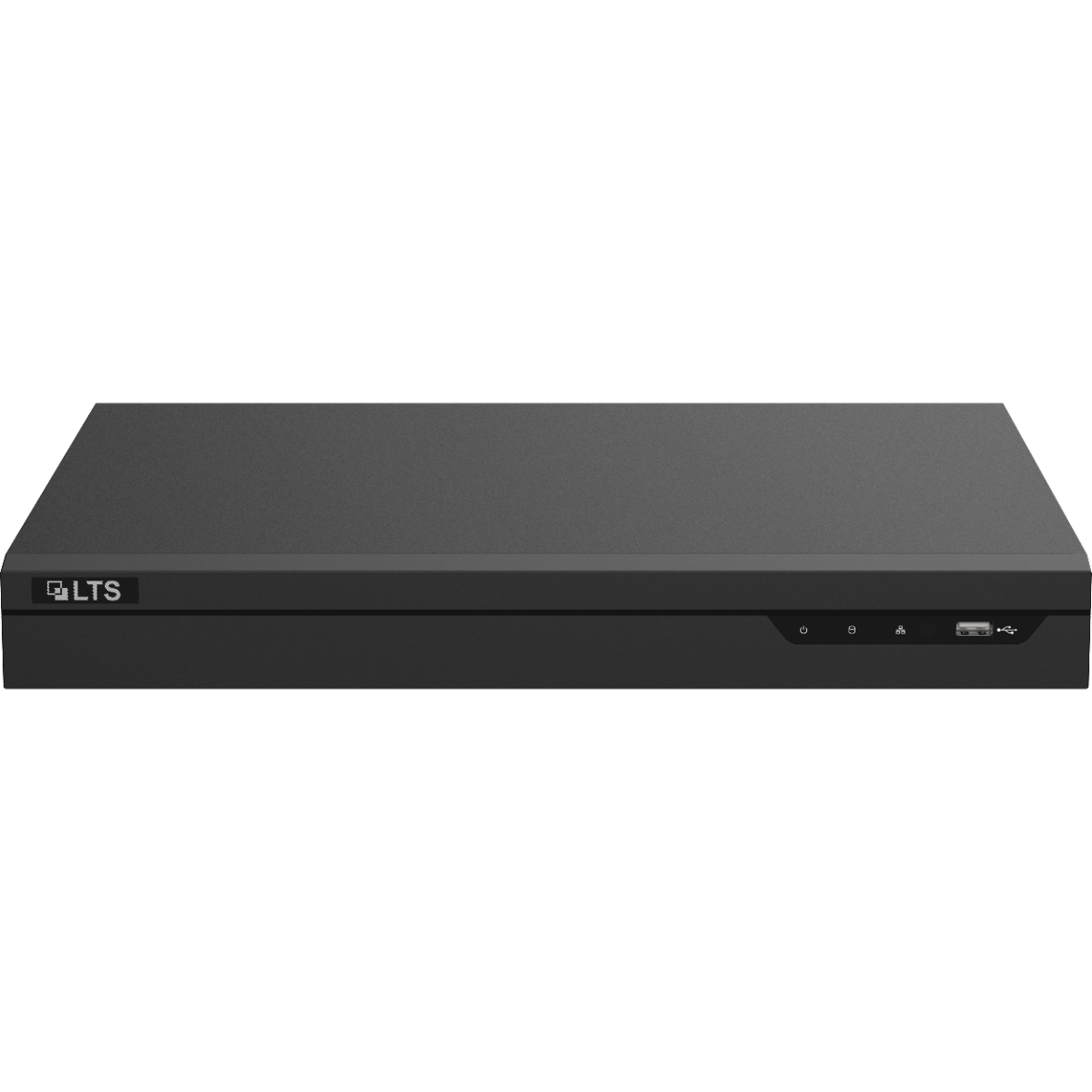

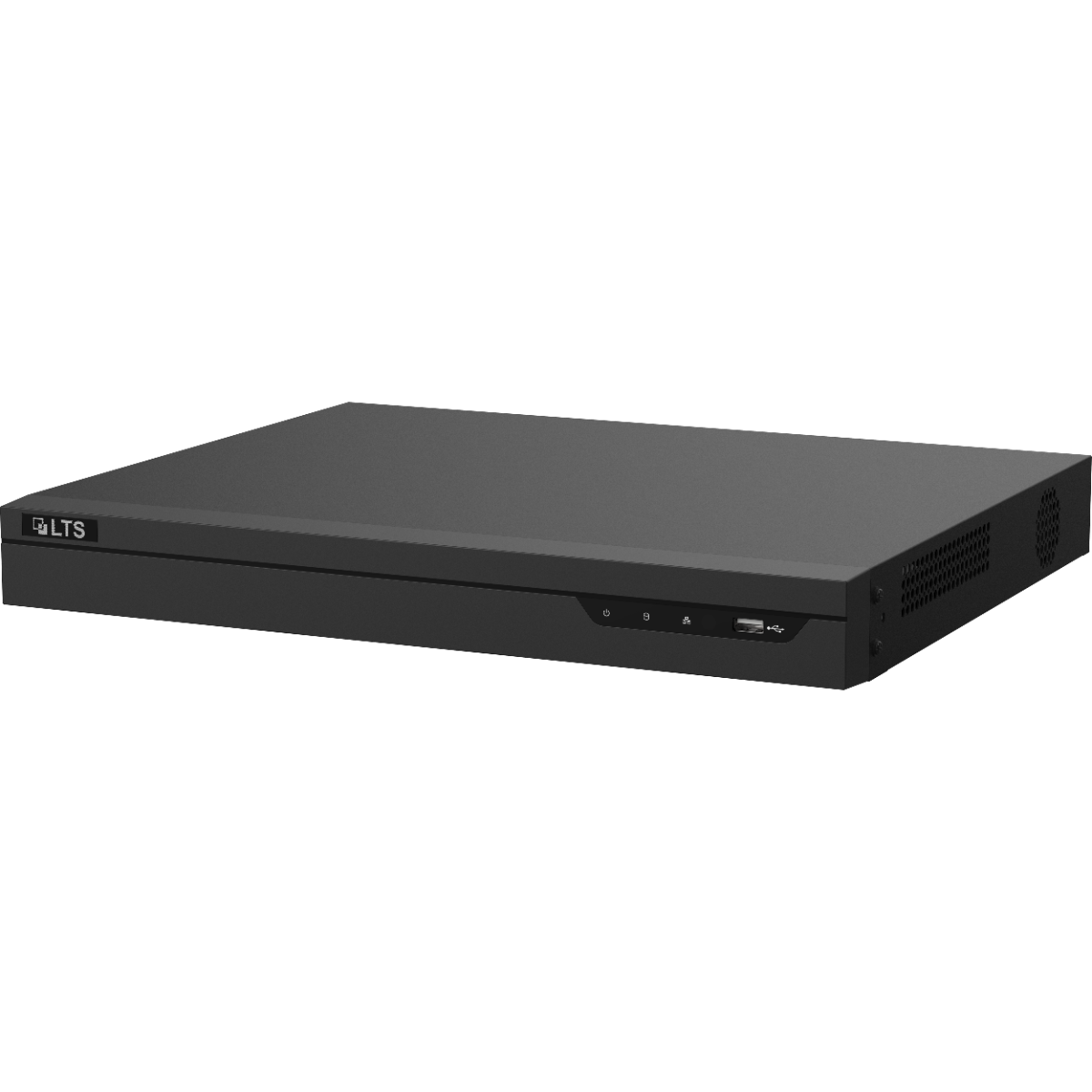

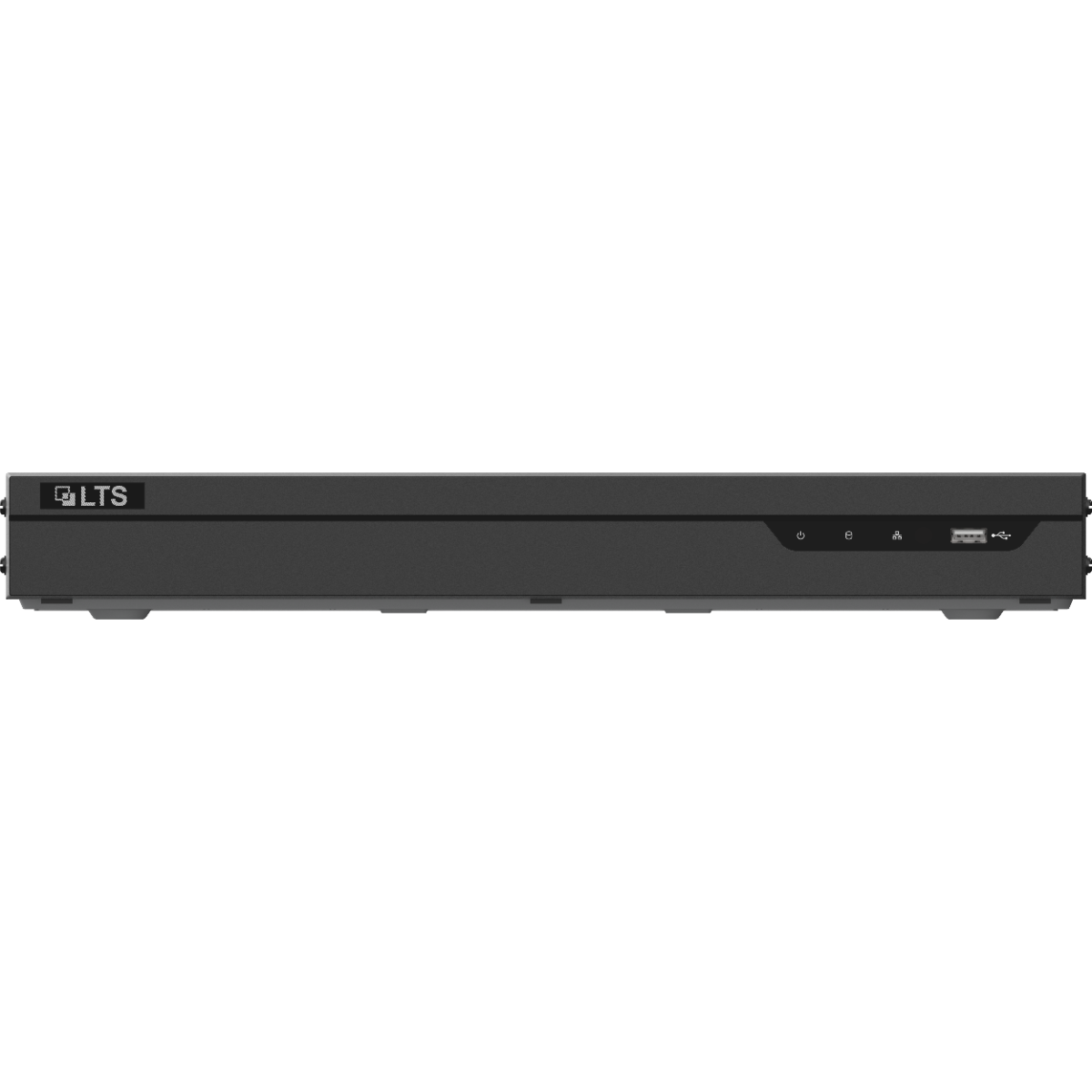

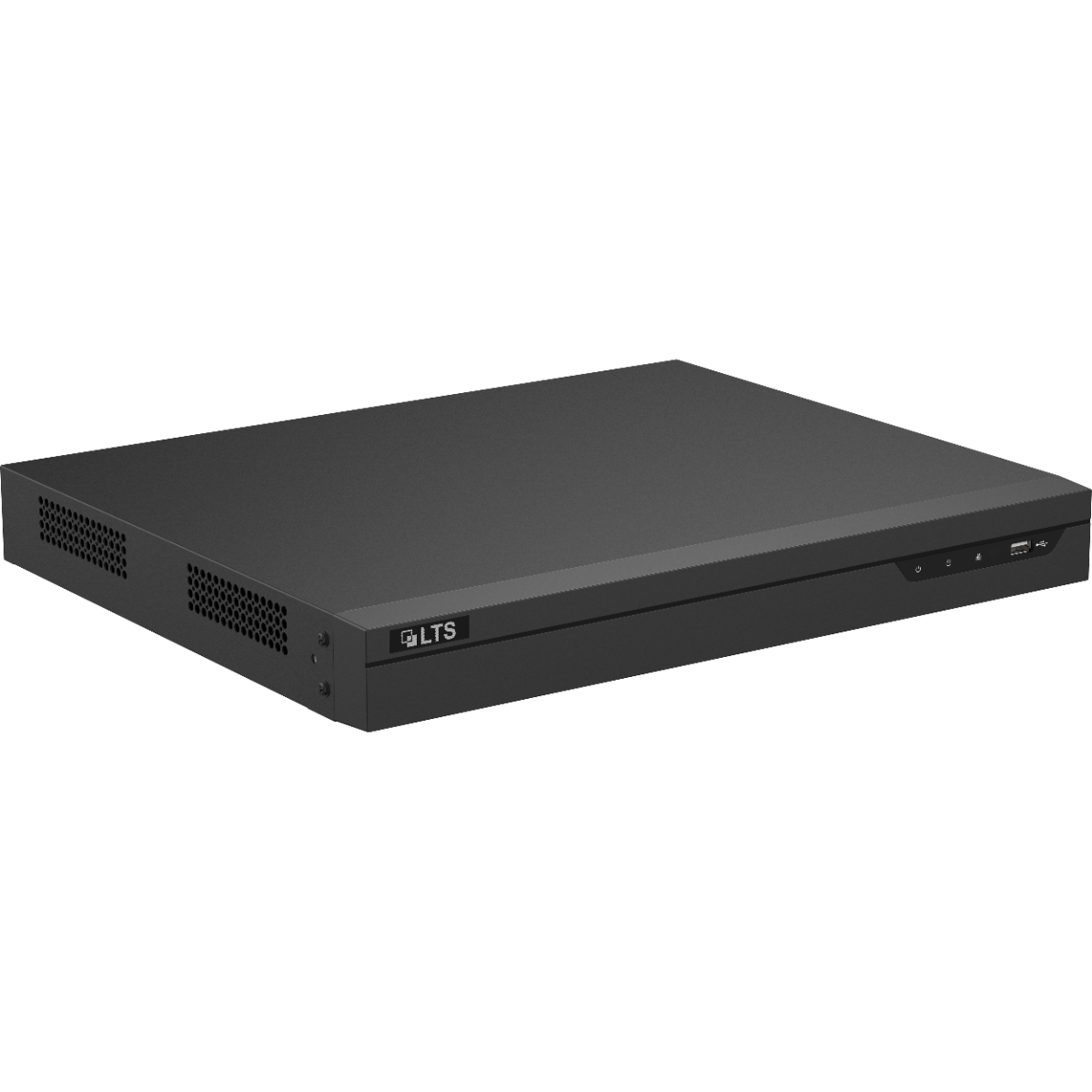

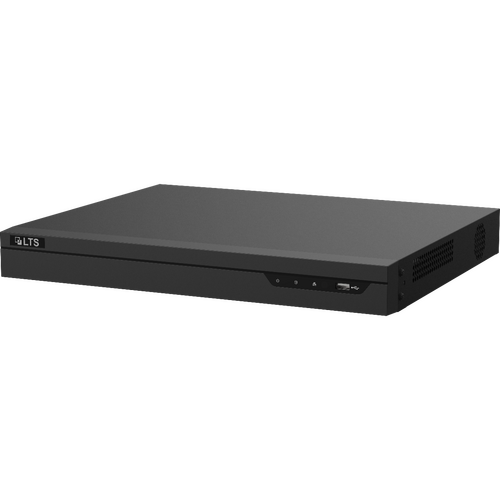

16CH 16POE 4K DEEPVISION NVR

LTN8716DV-P16

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from Unit 25 / 17 Lorraine Street Peakhurst NSW 2210 (9am-5pm)

The LTS Platinum Plus LTN8716DV-P16 is a 16-channel 1U DeepVision network video recorder with 16 PoE ports. The USA page calls it an entry-level semantic-search model: 16-channel, 4K, 160 Mbps, recording up to 12 MP, 4K output, H.265/H.265+, two-way audio and alarm, in a 1U case with two HDD bays up to 16 TB each. Available in Australia from LTS Security (LTN8716DV-P16).

DeepVision and Direct Search

Up to 16-channel DeepVision and Direct Search. The spec sheet says DeepVision runs on all channels when cameras support MD 2.0 and Direct Search is enabled, modelling up to 50,000 targets a day. Search language is English.

Decoding figures, as published

The product page and the spec-sheet feature line both say up to 4 channels at 12 MP, 6 channels at 8 MP, or 12 channels at 4 MP. The specification table says AI on: 12 channels at 1080p, and AI off: 12 channels at 4 MP.

LTN8716DV-P16 specifications

Model / SKU LTN8716DV-P16
Series Platinum Plus, IP / NVR, 1U, 16-channel
AI by NVR Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision
AI by camera Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
DeepVision All channels when cameras support MD 2.0 and Direct Search is enabled. Up to 50,000 targets/day. Search language: English.
Face library Up to 16 libraries, up to 50,000 pictures (each ≤ 1 MB, total ≤ 800 MB). Face-picture comparison: 8-ch.
Facial detection by NVR Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch
Perimeter protection by NVR Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch. All channels by camera.
Motion detection 2.0 by NVR All channels, up to 4 MP (up to 8 MP with enhanced SVC)
IP video input 16-ch
IP speaker input 4-ch
Incoming / outgoing bandwidth 160 Mbps / 160 Mbps
Video output HDMI/VGA independent. HDMI up to 4K/30 Hz. VGA up to 1080p/60 Hz.
Audio 1-ch RCA out (linear, 1 kΩ). Two-way audio 1-ch RCA (2.0 Vp-p, 1 kΩ).
Decoding format H.265, H.265+, H.264, H.264+
Recording resolution 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Playback Normal/Smart, Event, Tag, External File. Synchronous playback 16-ch. Live view 1/2/4/6/8/9/16.
Decoding capability Spec table: AI on 12-ch at 1080p; AI off 12-ch at 4 MP. Page and sheet feature line: up to 4-ch at 12 MP, 6-ch at 8 MP, or 12-ch at 4 MP.
Audio compression G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2
Remote connection 128
Network 1 × RJ-45 10/100/1000 Mbps. TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
PoE 16 × RJ-45 10/100 Mbps. ≤ 200 W. IEEE 802.3af/at
Storage 2 × SATA, up to 16 TB per HDD
Alarm in/out 4/1
USB Front: 1 × USB 2.0. Rear: 1 × USB 2.0
Power supply 200 to 240 VAC, 50 to 60 Hz. The rear-panel label on the sheet says AC 200–240 V.
Consumption ≤ 15 W without HDD
Working temperature −10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10 to 90%
Dimensions (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 in, as printed on this model's sheet)
Weight ≤ 5.5 lb without HDD. The spec sheet also prints 3 kg in the same line.
Certification CE, CB, REACH, WEEE, UKCA, RCM, IC

FAQ

What mains voltage does the spec sheet list?

200 to 240 VAC, 50 to 60 Hz. It does not list a 100 V range on this model.

Are hard drives included?

No box list is published. Capacity is two SATA bays up to 16 TB each, and weight is given without an HDD.
