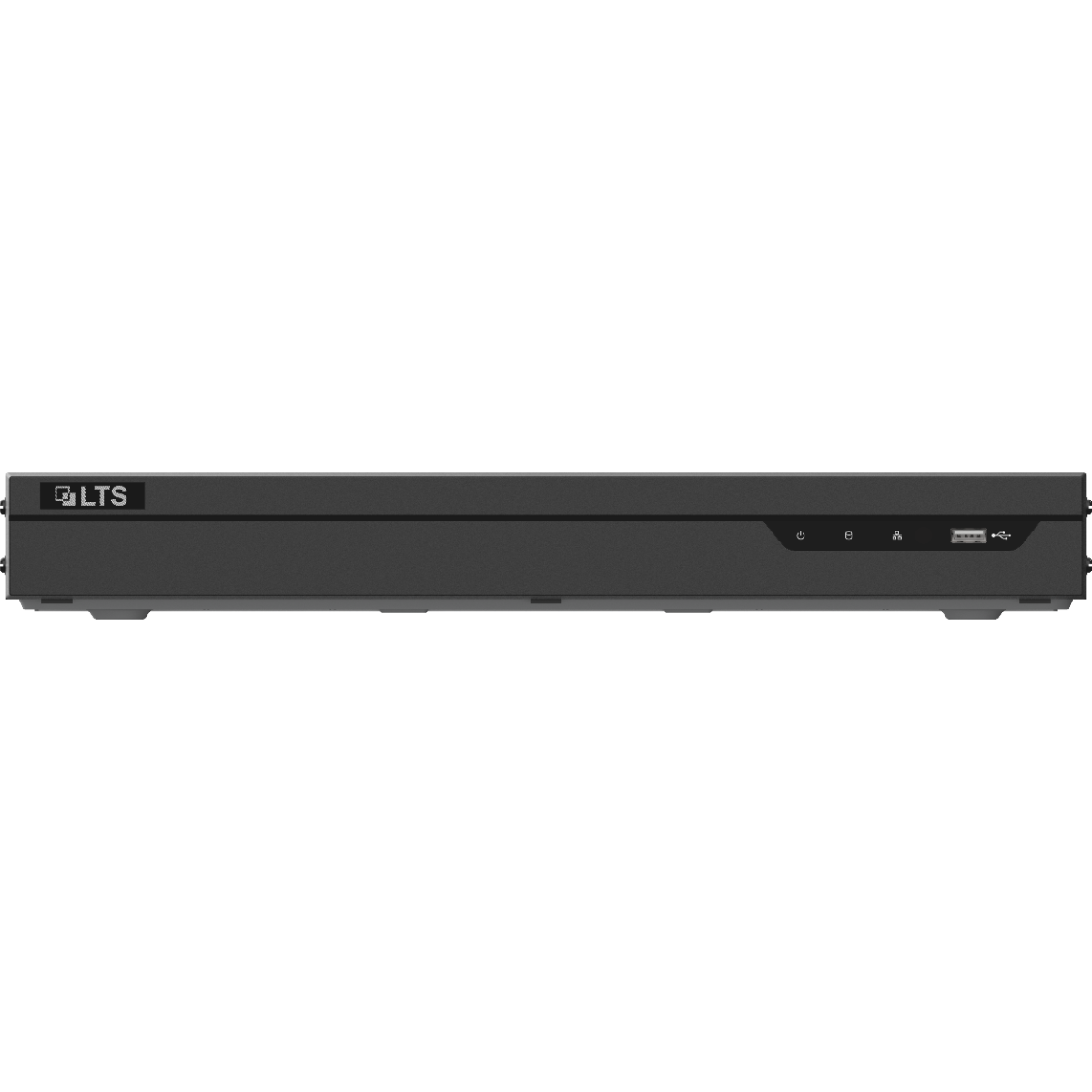

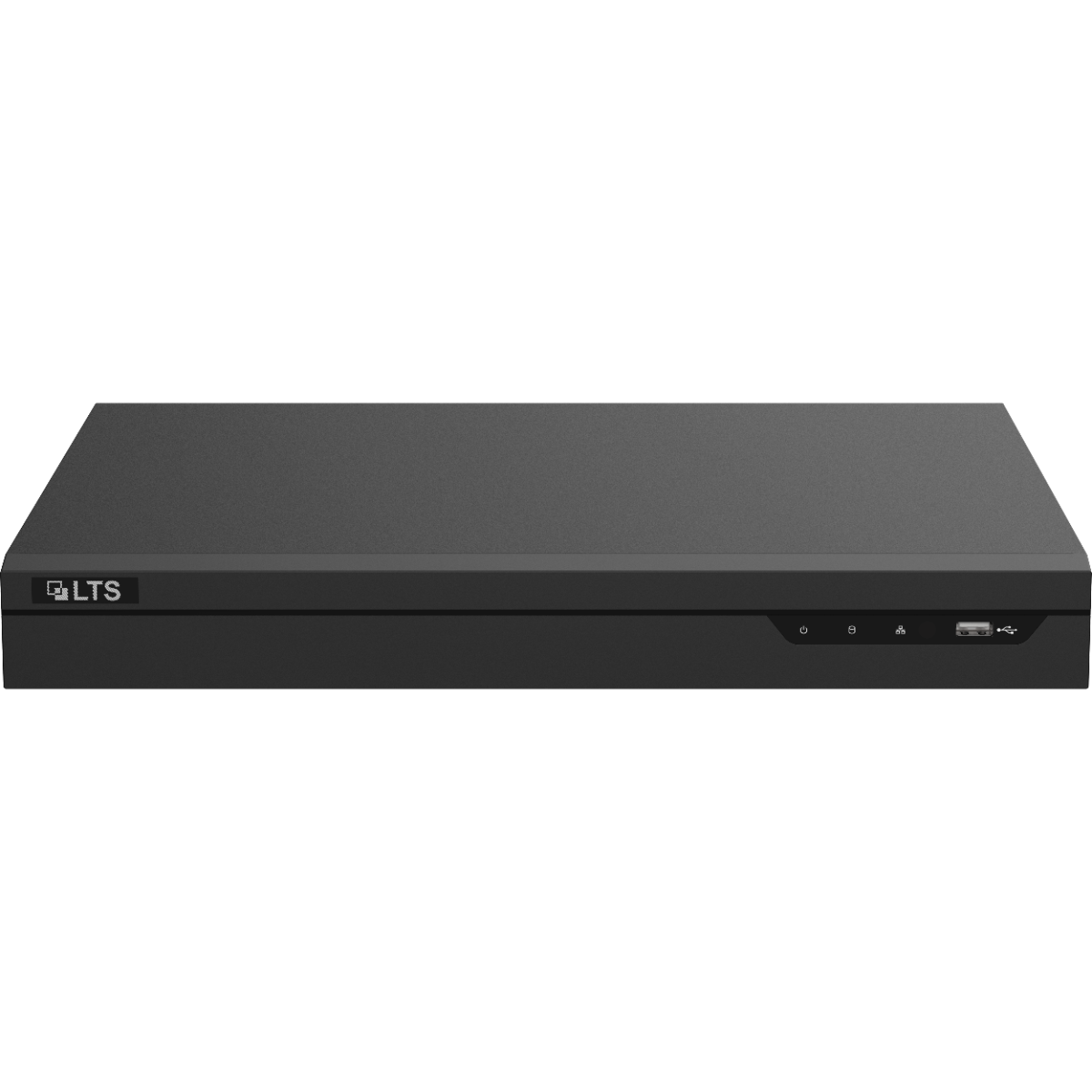

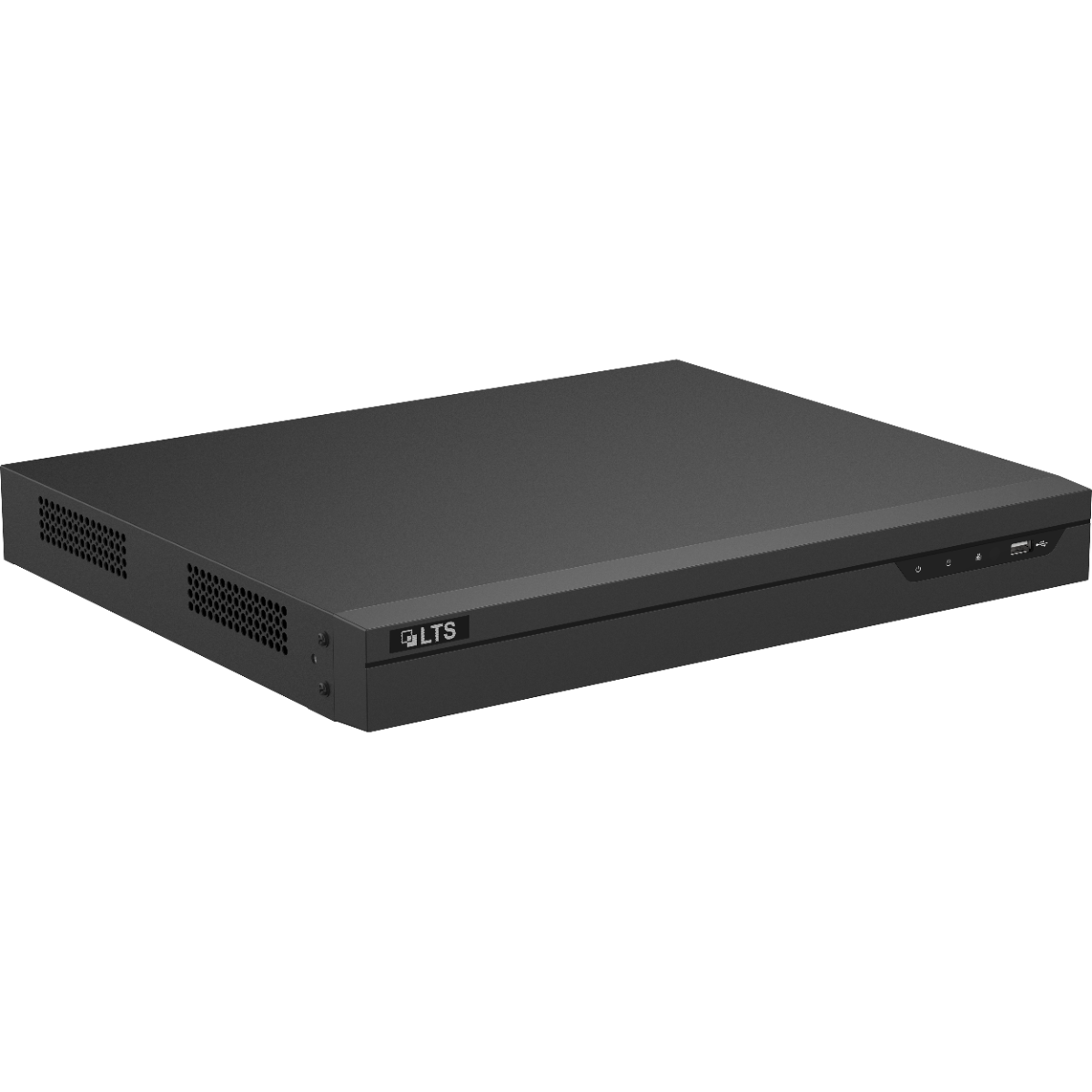

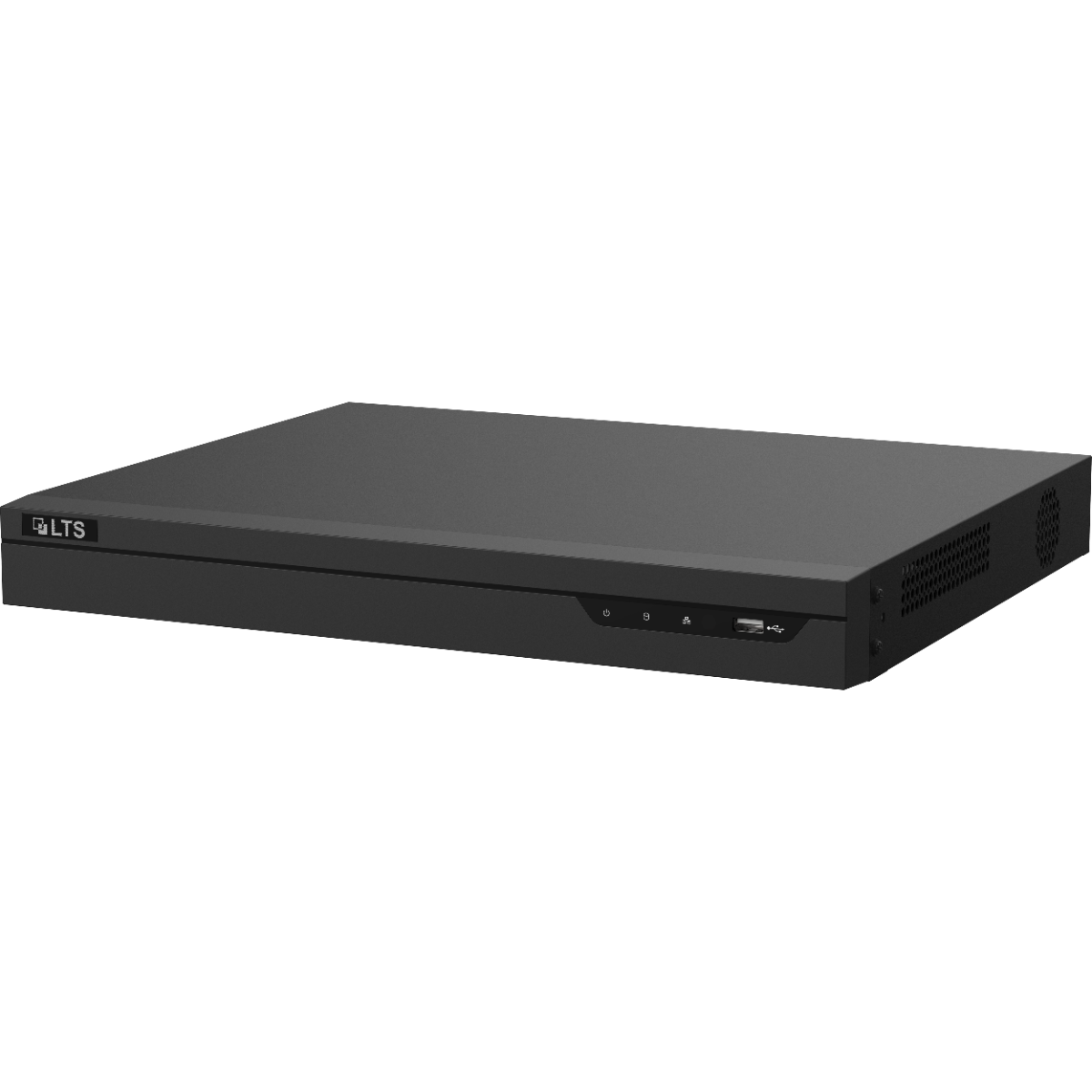

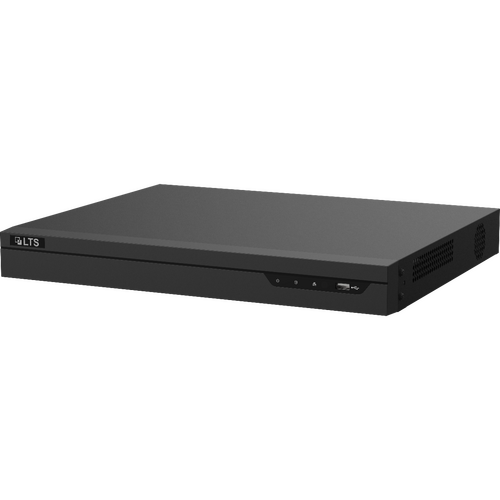

The LTS Platinum Plus LTN8708DV-P8 is an 8-channel 1U DeepVision network video recorder with eight PoE ports. The USA page calls it an entry-level semantic-search model: 8-channel, 4K, 80 Mbps, recording up to 12 MP, 4K output, H.265/H.265+, two-way audio and alarm, in a 1U case with two HDD bays up to 16 TB each. Available in Australia from LTS Security (LTN8708DV-P8).

DeepVision and Direct Search

The page lists up to 8-channel DeepVision and Direct Search. On the spec sheet, DeepVision runs on all channels when cameras support MD 2.0 and Direct Search is enabled, modelling up to 50,000 targets a day. Search language is English. Direct Search is all channels by camera, and the camera must have Direct Search enabled.

Motion detection 2.0 and perimeter protection

MD 2.0 by the NVR covers all channels up to 4 MP, or up to 8 MP with enhanced SVC, using human and vehicle recognition to reduce false alarms. Perimeter protection by the NVR is up to 4 MP on 2 channels, or 5 MP to 8 MP on 1 channel. All channels are available when the camera does the analytics.

Decoding figures, as published

The product page says up to 3 channels at 12 MP or 6 channels at 8 MP. The spec-sheet feature line says up to 4 channels at 12 MP or 6 channels at 8 MP. The specification table says AI on: 6 channels at 4 MP, and AI off: 6 channels at 8 MP. Those three statements are all on LTS sources and they do not match.

LTN8708DV-P8 specifications

Model / SKU	LTN8708DV-P8
Series	Platinum Plus, IP / NVR, 1U, 8-channel
AI by NVR	Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision
AI by NVR and camera	Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
DeepVision	All channels when cameras support MD 2.0 and Direct Search is enabled. Up to 50,000 targets/day. Search language: English.
Face library	Up to 16 libraries, up to 50,000 pictures (each ≤ 1 MB, total capacity ≤ 800 MB). Face-picture comparison: 8-ch.
Facial detection by NVR	Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch
IP video input	8-ch
IP speaker input	4-ch
Incoming / outgoing bandwidth	80 Mbps / 160 Mbps
Video output	HDMI/VGA independent. HDMI up to 4K (3840 × 2160)/30 Hz, 2K/60 Hz, 1080p, UXGA, SXGA, 720p. VGA up to 1080p/60 Hz.
Audio	1-ch RCA out (linear, 1 kΩ). Two-way audio 1-ch RCA (2.0 Vp-p, 1 kΩ).
Decoding format	H.265, H.265+, H.264, H.264+
Recording resolution	12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Playback	Normal/Smart, Event, Tag, External File. Synchronous playback 8-ch. Live view 1/2/4/6/8/9.
Decoding capability	Spec table: AI on 6-ch at 4 MP; AI off 6-ch at 8 MP. Page bullet: up to 3-ch at 12 MP or 6-ch at 8 MP. Sheet feature line: up to 4-ch at 12 MP or 6-ch at 8 MP.
Audio compression	G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2
Remote connection	128
Network	1 × RJ-45 10/100/1000 Mbps. TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
PoE	8 × RJ-45 10/100 Mbps. ≤ 80 W. IEEE 802.3af/at
Storage	2 × SATA, up to 16 TB per HDD. Page summary: 2 × HDD at 16 TB each.
Alarm in/out	4/1
USB	Front: 1 × USB 2.0. Rear: 1 × USB 2.0
Power supply	48 VDC, 2.5 A
Consumption	≤ 15 W without HDD
Working temperature	−10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10 to 90%
Dimensions (W × D × H)	384 × 317 × 52 mm (15.12 × 12.48 × 2.03 in)
Weight	≤ 4.0 lb without HDD. The spec sheet also prints 3 kg in the same line.
Certification	CE, CB, REACH, WEEE, UKCA, RCM, IC

FAQ

What has to be enabled for DeepVision?

The spec sheet says the cameras must support MD 2.0 and have Direct Search enabled. DeepVision then runs on all channels, up to 50,000 targets a day, with English as the search language.
