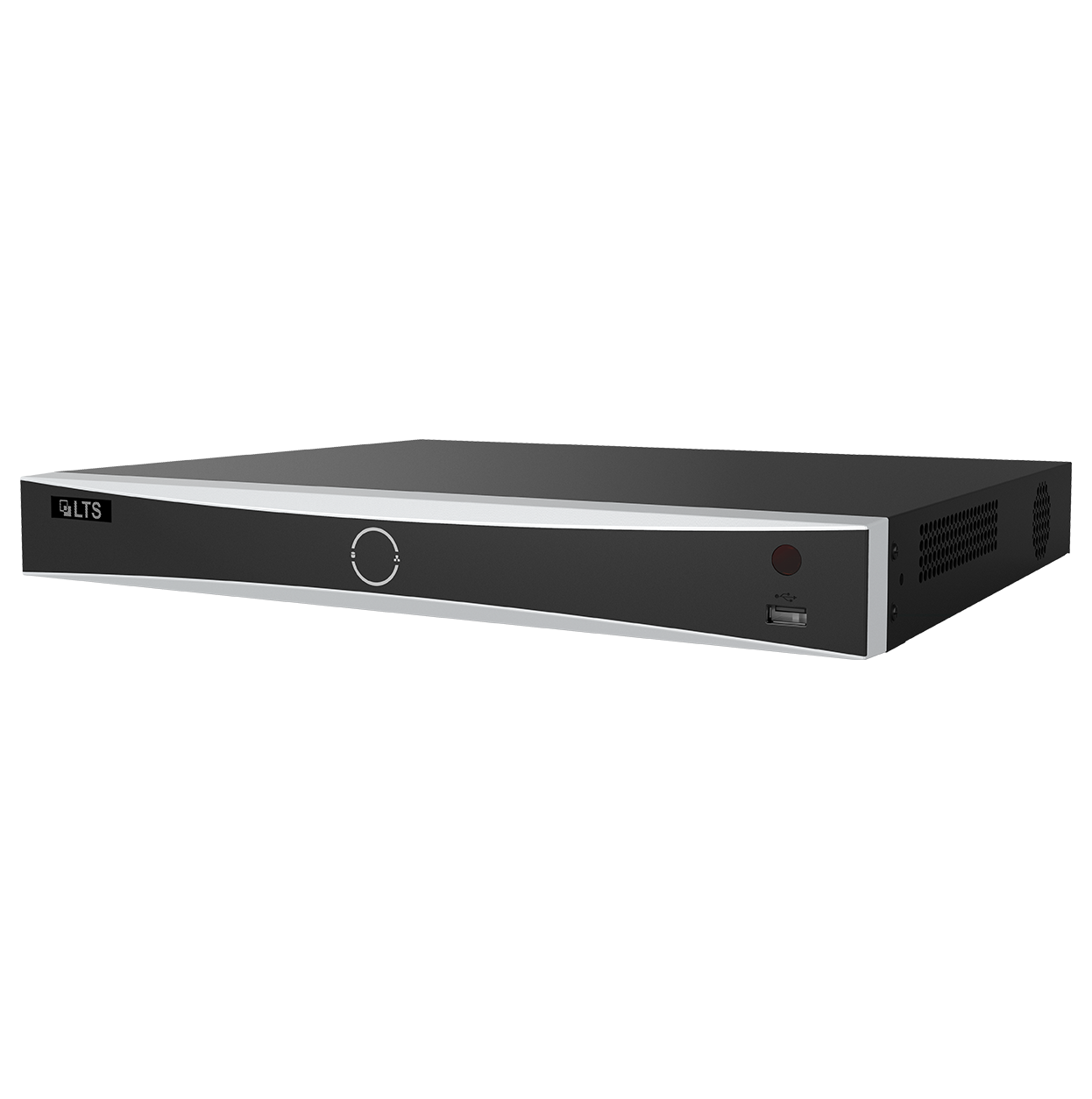

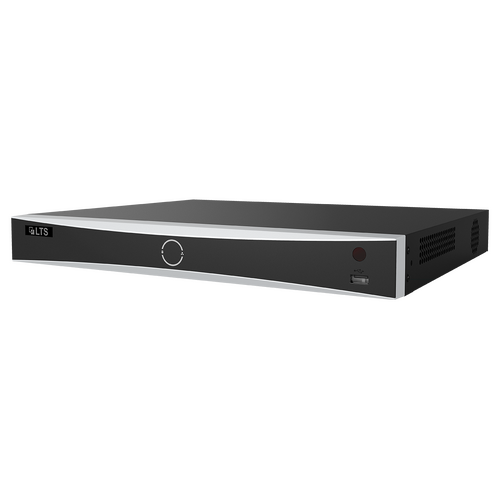

LTS Platinum LTN8716D-P16N 16-Channel 4K PoE NVR (Barebone)

LTS Platinum LTN8716D-P16N 16-Channel 4K PoE NVR (Barebone)

The LTS Platinum LTN8716D-P16N is a 16-channel network video recorder built for installers who need a plug-and-play IP camera hub without paying for a pre-installed hard drive. As a barebone NVR, it ships ready for you to fit your own SATA storage, making it a flexible core for new builds or system upgrades. With 16 built-in PoE ports, advanced H.265+ compression, and onboard Motion Detection 2.0 / VCA analytics, it delivers professional-grade recording and smarter alerts for homes, offices, and commercial sites.

Key Features

• 16-channel IP inputs with 16 built-in PoE ports for plug-and-play camera connections without extra switches or injectors.
• Supports H.265+, H.265, H.264+ and H.264 video formats for efficient, high-quality compression.
• Decoding capacity of up to 2 channels at 12MP, 3 channels at 8MP, 6 channels at 4MP, or 12 channels at 1080p.
• Up to 160 Mbps incoming bandwidth to keep multiple high-resolution streams running smoothly.
• Built-in MD 2.0 / VCA analytics with human and vehicle classification to help reduce false motion alerts.
• One-channel human face capture plus four-channel face picture comparison for added facial analytics.
• HDMI output up to 4K (3840 × 2160) resolution alongside independent VGA output for flexible monitor setups.
• Two SATA bays supporting a combined storage capacity of up to 20 TB (barebone - hard drives sold separately).
• Smart search and smart playback tools that speed up reviewing recorded footage after an event.

Built for Growing IP Camera Systems

The LTN8716D-P16N suits small-to-medium businesses, retail stores, warehouses, offices, and multi-camera residential installs that need a single recorder to manage a full 16-camera IP system. Because it is sold as a barebone unit, integrators can pair it with the exact hard drive capacity a project requires, whether that is a compact archive or a long-retention setup approaching 20 TB across its two SATA bays. Combined with PoE-powered camera connections, human/vehicle-aware motion detection, and 4K local monitor output, it gives installers a dependable, centralized platform for live viewing, recording, and remote management.

What's in the Box

• 1 x LTN8716D-P16N 16-channel PoE NVR (barebone, no HDD installed)
• Power adapter and cable
• USB mouse
• Mounting screws and quick start documentation

Frequently Asked Questions

Does the LTN8716D-P16N come with a hard drive?
No. This is a barebone NVR with two SATA bays that support drives up to a combined 20 TB, but storage must be purchased separately.

How many cameras can this NVR power directly?
It has 16 built-in PoE ports, so it can power and connect up to 16 compatible IP cameras without extra network switches.

What does MD 2.0 / VCA add over basic motion detection?
It allows the NVR to distinguish between human and vehicle movement, which helps cut down on false alerts triggered by pets, weather, or background motion.
