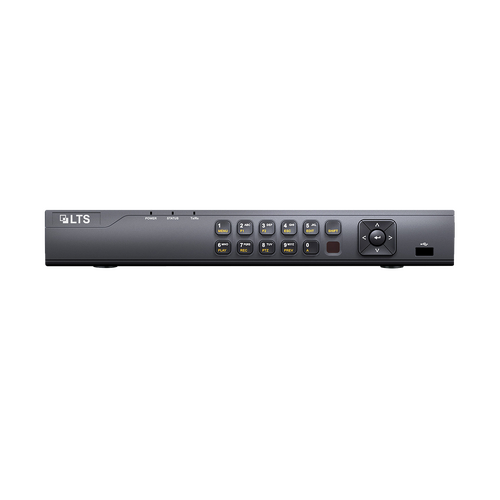

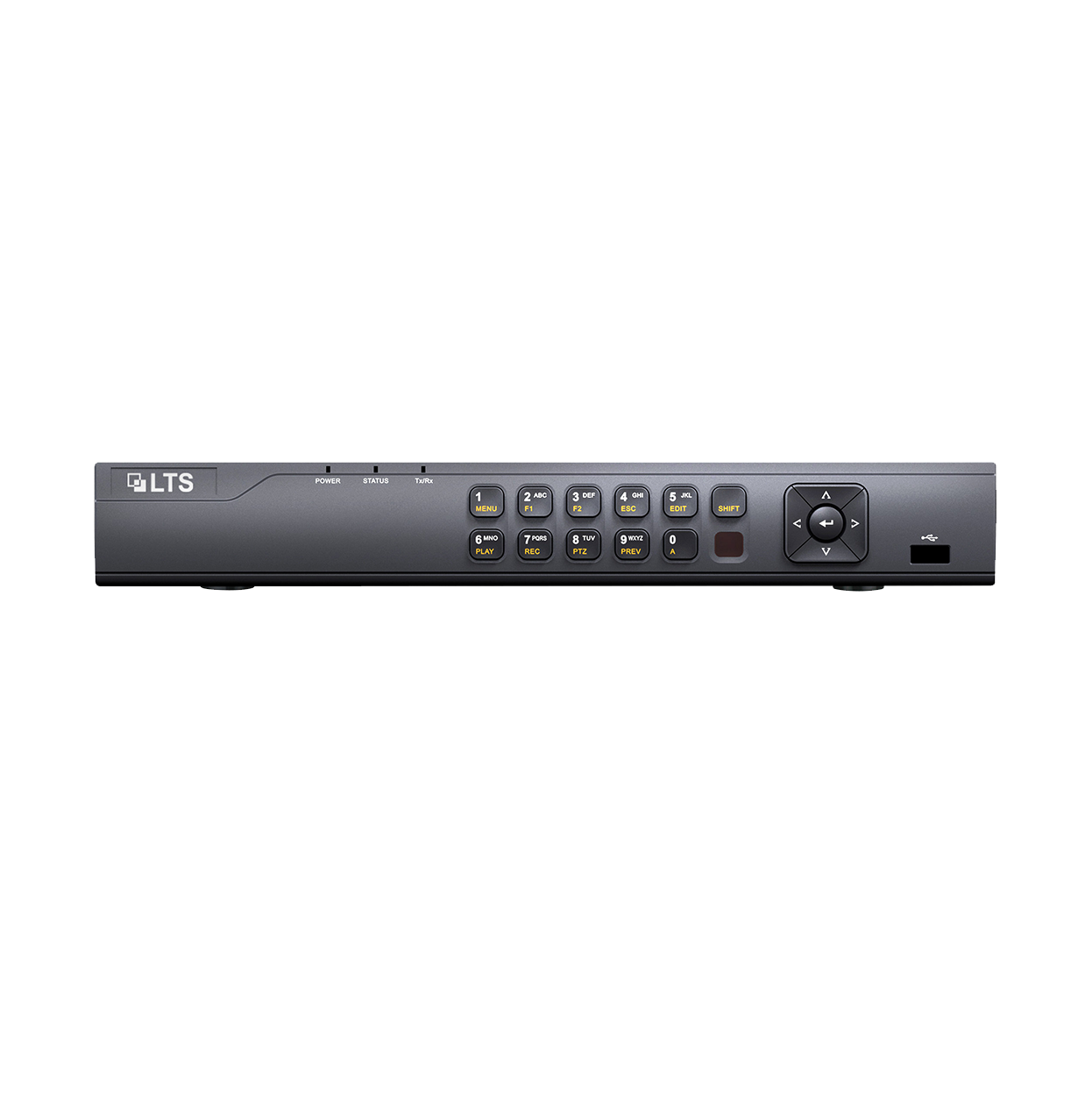

LTS Platinum LTN8704QN-P4 4-Channel 4K PoE NVR

LTS Platinum LTN8704QN-P4 4-Channel 4K PoE Network Video Recorder

The LTS Platinum LTN8704QN-P4 is a compact, professional-grade 4-channel NVR designed to give small businesses, retail sites, and residential installs a straightforward path to reliable IP video recording. With four built-in PoE ports, installers can power and connect compatible IP cameras with a single cable run, cutting down on extra hardware and simplifying cable management. Paired with LTS Platinum or PRO-X IP cameras, this recorder forms an efficient, budget-friendly core for a 4-camera surveillance system.

Key Features

• 4-channel IP camera input with 4 built-in PoE ports for simplified, single-cable camera installs
• Supports recording resolutions up to 8MP (4K) per connected camera
• Efficient H.264 / H.264+ / H.265 / H.265+ compression formats to reduce storage and bandwidth demands
• Decoding capacity of up to 1 channel at 8MP or 5 channels at 1080p for flexible live viewing and playback
• 40 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth for smooth multi-camera performance
• Simultaneous 4K HDMI and VGA video outputs for use with modern or legacy displays
• Single SATA interface supporting up to 8TB of storage for extended recording history
• ONVIF compatibility for broader integration with third-party IP cameras
• Compact Mini 1U case design that saves rack and desk space

Ideal for Small-Scale Surveillance Deployments

This NVR suits homes, small offices, retail shops, and light commercial sites that need dependable 4-camera coverage without the complexity of larger enterprise systems. Typical use cases include entry and perimeter monitoring, small office security, and driveway or storefront surveillance. Its built-in PoE ports make it a practical option for installers who want a fast, tidy setup, while H.265+ compression helps keep storage costs manageable over time.

What's in the Box

• LTN8704QN-P4 4-Channel PoE NVR unit
• Power adapter and power cable
• Mouse for local navigation
• Mounting screws and quick start guide

Frequently Asked Questions

Does the LTN8704QN-P4 include a hard drive?
The base unit ships without a pre-installed hard drive; a compatible SATA HDD up to 8TB should be added for recording storage.

Can I use non-LTS IP cameras with this NVR?
Yes, thanks to ONVIF support, though pairing with LTS Platinum or PRO-X cameras typically offers the smoothest setup and full feature compatibility.

What resolution can each camera channel record at?
Each of the 4 channels can record at resolutions up to 8MP (4K), with decoding capacity allowing either one channel at 8MP or several channels at 1080p simultaneously.
