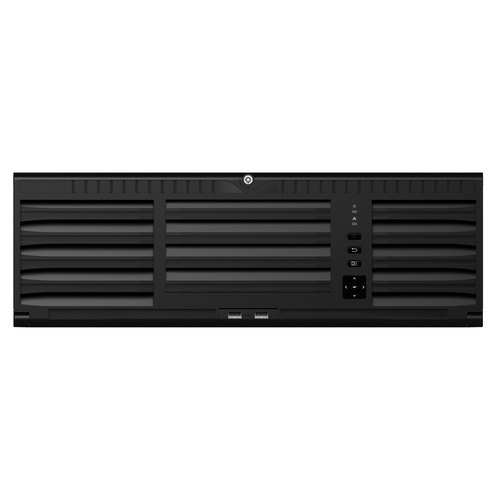

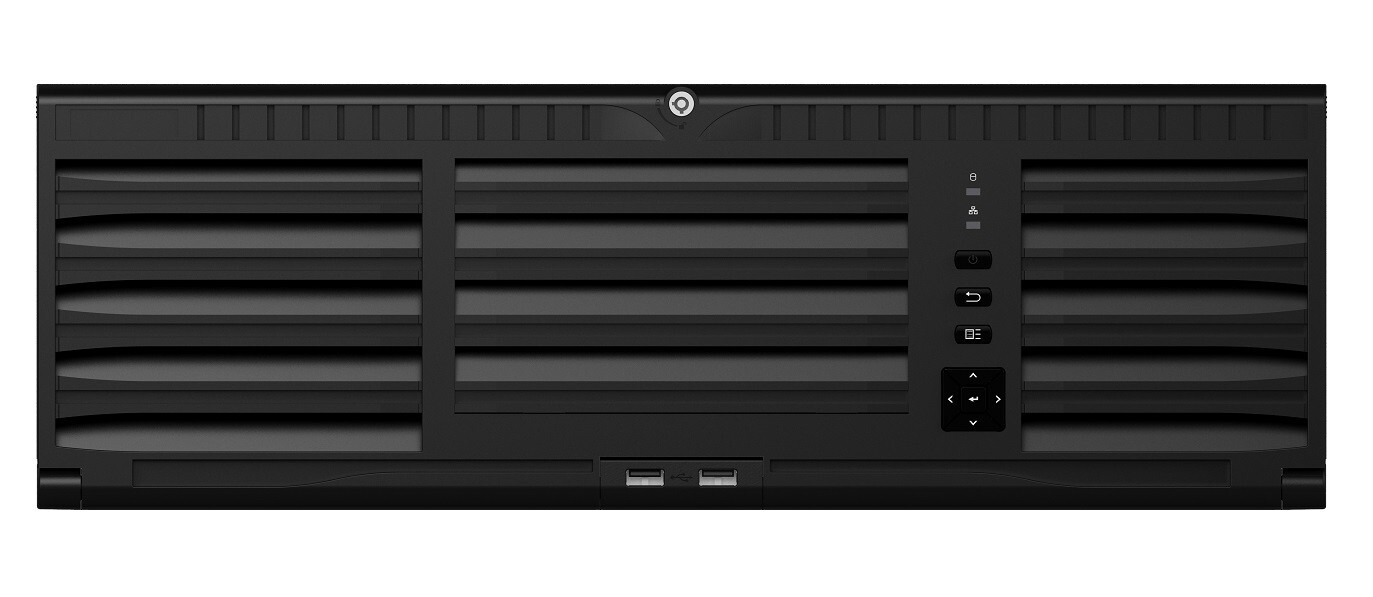

LTS Platinum LTN07128-R16 128-Channel Enterprise RAID NVR (16-Bay SATA)

LTS Platinum LTN07128-R16 128-Channel Enterprise RAID NVR

The LTS Platinum LTN07128-R16 is a heavy-duty, 3U rackmount network video recorder purpose-built for large enterprise, campus, and multi-site surveillance deployments. Supporting up to 128 IP camera channels and equipped with 16 hot-swappable SATA bays with RAID data protection, this barebone NVR gives integrators the flexibility to configure enterprise-grade storage exactly to project requirements. It is part of LTS's Platinum Enterprise range and is offered as a special-order unit for larger installations that demand serious channel count, redundancy, and throughput.

Key Features

• 128-channel IP video input with up to 768Mbps incoming bandwidth for smooth multi-camera performance
• Recording support up to 8MP at 128 channels, plus flexible frame rates at 4MP and 2MP resolutions
• H.265+ decoding with capability for 5 channels at 4K or 20 channels at 1080p simultaneous playback
• Dual video output via HDMI (4K) and VGA (1080p) for flexible monitor wall or control room setups
• 16x SATA hard drive bays supporting up to 160TB of total raw storage capacity
• Enterprise RAID support (0, 1, 5, 6, 10) with hot-swap functionality to protect footage against drive failure
• Extensive alarm I/O with 48 inputs and 24 outputs for integration with access control and building systems
• Redundant networking via 4x Gigabit RJ45 ports plus 4x fiber interfaces for high-availability network design
• Backup and export via 2x USB 2.0 and 2x USB 3.0 ports

Built for Large-Scale, Mission-Critical Surveillance

Because it is sold as a barebone unit with no pre-installed drives, the LTN07128-R16 suits system integrators who need to size storage precisely for long retention periods across dozens or hundreds of cameras. Typical deployments include airports, casinos, university campuses, shopping centres, correctional facilities, and city-wide surveillance networks where channel density, RAID redundancy, and network resilience are non-negotiable. The dual fiber/copper networking options also make it well suited to sites with existing fiber backbone infrastructure spanning multiple buildings.

What's in the Box

• 1x LTS Platinum LTN07128-R16 NVR chassis (3U rackmount)
• Mounting rails/rack hardware
• Power cable
• Mouse for local configuration
• Quick start documentation
• Note: Hard drives are not included and must be ordered separately

Frequently Asked Questions

Does this NVR include hard drives?
No. The LTN07128-R16 is a barebone enterprise recorder with 16 empty SATA bays, allowing installers to select drives suited to the retention period and budget of each project.

What RAID levels are supported?
The unit supports RAID 0, 1, 5, 6, and 10, along with hot-swap capability so drives can be replaced without shutting down the recorder.

Why is this listed as a special order item?
Due to its enterprise scale and configurable storage, this model is stocked to order to ensure customers receive current firmware and the correct rack configuration for their project.
