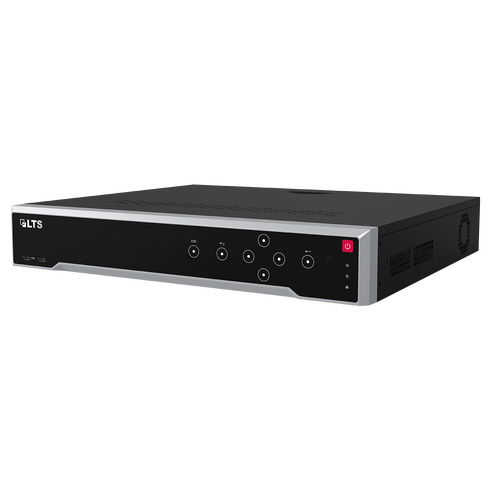

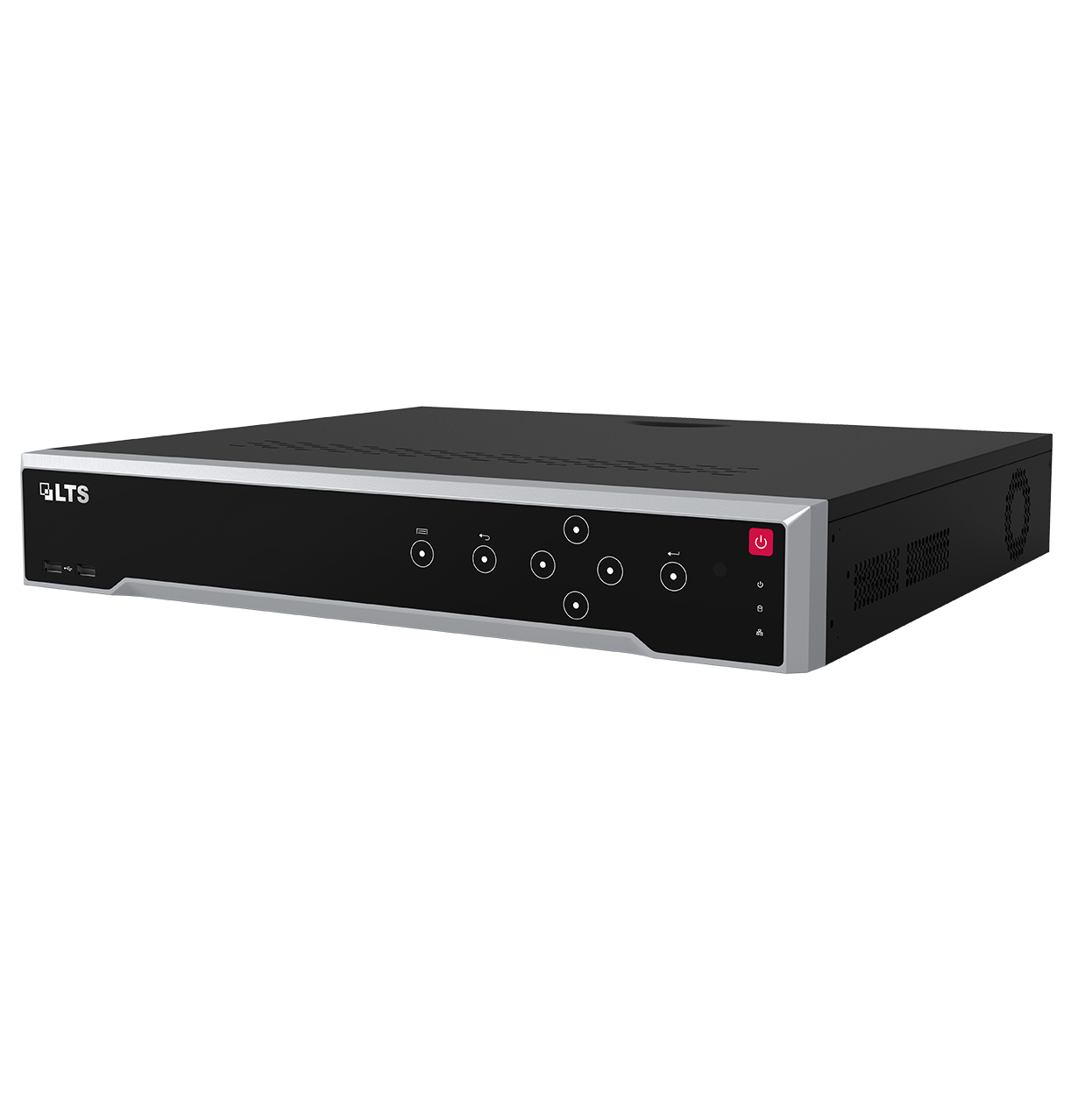

LTS Platinum LTN8932N 32-Channel 8K NVR (M-Series)

LTS Platinum LTN8932N 32-Channel 8K Network Video Recorder

The LTS Platinum LTN8932N is a professional-grade, 32-channel network video recorder built for medium to large IP surveillance installations. Part of the LTS M-Series Platinum NVR range, it combines high-resolution recording, powerful H.265+ compression and flexible storage to give integrators a dependable core for demanding CCTV projects across retail, warehousing, education and enterprise sites.

Key Features

• 32-channel IP camera support with recording resolutions up to 32MP per channel for maximum image detail.
• High incoming bandwidth of up to 320Mbps, allowing multiple high-resolution streams to be recorded simultaneously without dropped frames.
• Advanced H.265+ compression that can cut storage requirements by up to 75% compared with standard H.264, extending retention periods.
• Dual HDMI/VGA video output with HDMI supporting resolutions up to 8K, plus a dual 4K HDMI output option for command-centre style monitoring.
• 4 x SATA hard drive bays, each supporting drives up to 14TB, for a maximum internal capacity of 56TB.
• 16-channel synchronous playback so operators can review footage from multiple cameras at the same point in time.
• Smart analytics support, including motion detection, line crossing, intrusion detection, heat mapping and license plate recognition on compatible cameras.
• POS transaction overlay for retail environments, enabling POS-triggered recording and alarms.
• 16 alarm inputs and 4 alarm outputs, dual Gigabit Ethernet ports, and USB 2.0/3.0 backup interfaces for flexible integration and data export.

Built for Scalable, High-Detail Surveillance Projects

Designed as a barebone NVR (no PoE ports, no pre-installed drives), the LTN8932N gives installers full flexibility to pair it with third-party PoE switches and their preferred capacity hard drives. Its combination of 32-channel input, high recording resolution and strong analytics support suits car parks, shopping centres, schools, warehouses and multi-site commercial properties where a large number of cameras need to be centrally recorded, monitored and searched efficiently.

What's in the Box

• LTN8932N 32-channel NVR unit
• Power adapter/cable
• Mouse
• Mounting screws and rack ears
• Quick start guide

Frequently Asked Questions

Does the LTN8932N include hard drives or PoE ports?
No. This is a barebone NVR - it ships without hard drives and without built-in PoE, so it needs to be paired with SATA hard drives and, if required, a separate PoE switch to power IP cameras.

How many cameras can the LTN8932N support?
Up to 32 IP camera channels, with recording resolutions as high as 32MP per channel depending on the cameras used.

What is the maximum storage capacity?
The unit has 4 SATA bays supporting drives up to 14TB each, for a maximum total capacity of 56TB.

Product Images & Diagrams
