LTS Platinum 16-Channel 4K PoE NVR with 16 Built-in PoE Ports & Direct Search

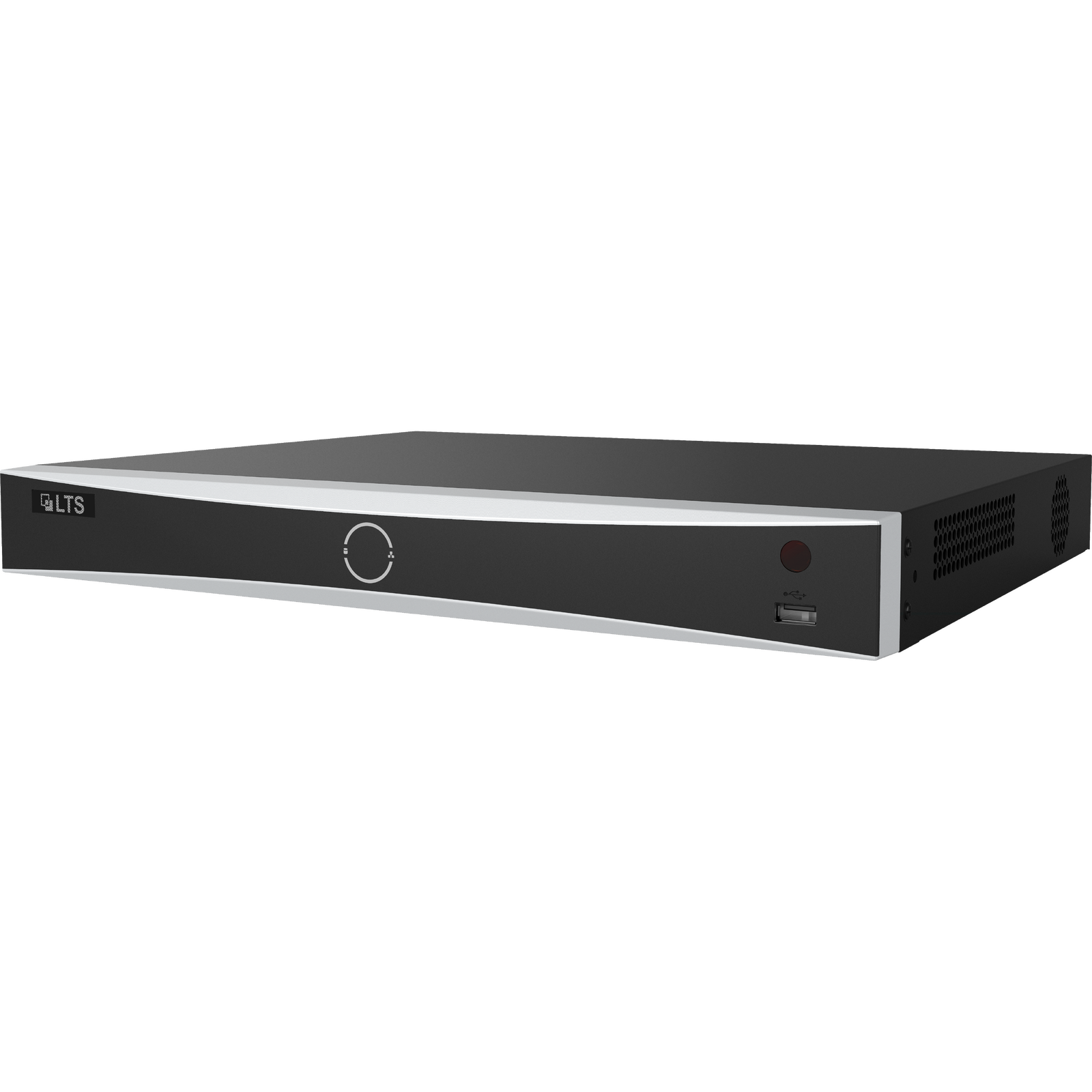

LTS Platinum LTN8616D-P16N-AU 16-Channel 4K PoE NVR

The LTS Platinum LTN8616D-P16N-AU is a 16-channel network video recorder built for installers and businesses that need reliable, high-resolution recording without the added cost of a separate PoE switch. With 16 built-in PoE ports, this barebone NVR (supplied without hard drives) lets you power and connect compatible IP cameras through a single cable run, while supporting recording resolutions up to 32MP for exceptionally sharp footage. It is designed to sit at the centre of a mid-to-large surveillance deployment, whether that's a retail site, warehouse, office, or multi-camera residential install.

Key Features

• 16 built-in PoE ports for simple plug-and-play connection of compatible IP cameras, removing the need for a separate PoE switch and injectors
• Up to 32MP recording resolution per channel with 160Mbps incoming and 256Mbps outgoing bandwidth for smooth multi-camera performance
• H.265+/H.265/H.264+/H.264 compression that can cut storage requirements by up to 75% compared with standard H.264
• Direct Search technology that lets you draw a search area directly over recorded footage to quickly isolate relevant motion events, dramatically reducing footage review time
• 2 SATA HDD bays, each supporting drives up to 16TB, giving up to 32TB of onboard storage capacity (sold as a barebone unit, no HDD included)
• Dual HDMI and VGA outputs for flexible local monitoring on 4K-capable displays
• 16-channel synchronous playback so multiple camera feeds can be reviewed side by side
• Video Content Analytics (VCA) support including motion detection, line crossing, intrusion detection, and people counting on compatible cameras
• ONVIF compatibility for integration with third-party IP cameras, plus LTS Connect mobile app and DDNS for remote viewing and management

Built for Growing Surveillance Systems

This NVR suits installers deploying medium-to-large camera networks where fast footage retrieval and dependable uptime matter. The combination of high per-channel resolution, generous bandwidth headroom, and Direct Search makes it a practical choice for retail loss prevention, warehouse and logistics monitoring, school and office campuses, or any site running a full 16-camera PoE network from a single recorder.

What's in the Box

• LTN8616D-P16N-AU Network Video Recorder (barebone, no HDD included)
• Power adapter and power cable
• Mouse for local navigation
• Mounting screws and quick start documentation

Frequently Asked Questions

Does this NVR come with a hard drive?
No, the LTN8616D-P16N-AU is a barebone unit. It includes 2 SATA bays supporting drives up to 16TB each, so you can select the storage capacity that suits your project.

How many cameras can I connect?
It supports up to 16 IP channels, with all 16 channels able to draw power and data directly through the built-in PoE ports.

What is Direct Search and why does it matter?
Direct Search lets you highlight an area of the video image and quickly filter recorded footage for motion in that specific zone, saving significant time when reviewing hours of recordings.
