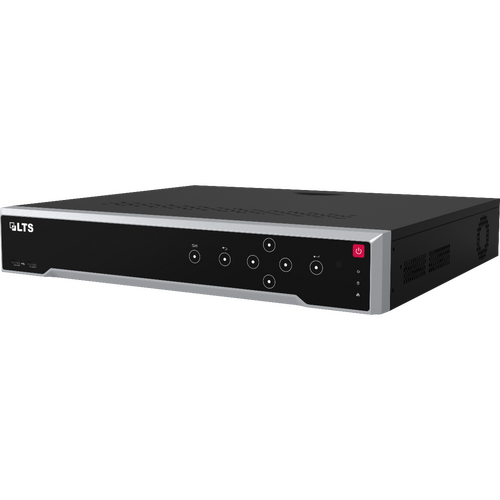

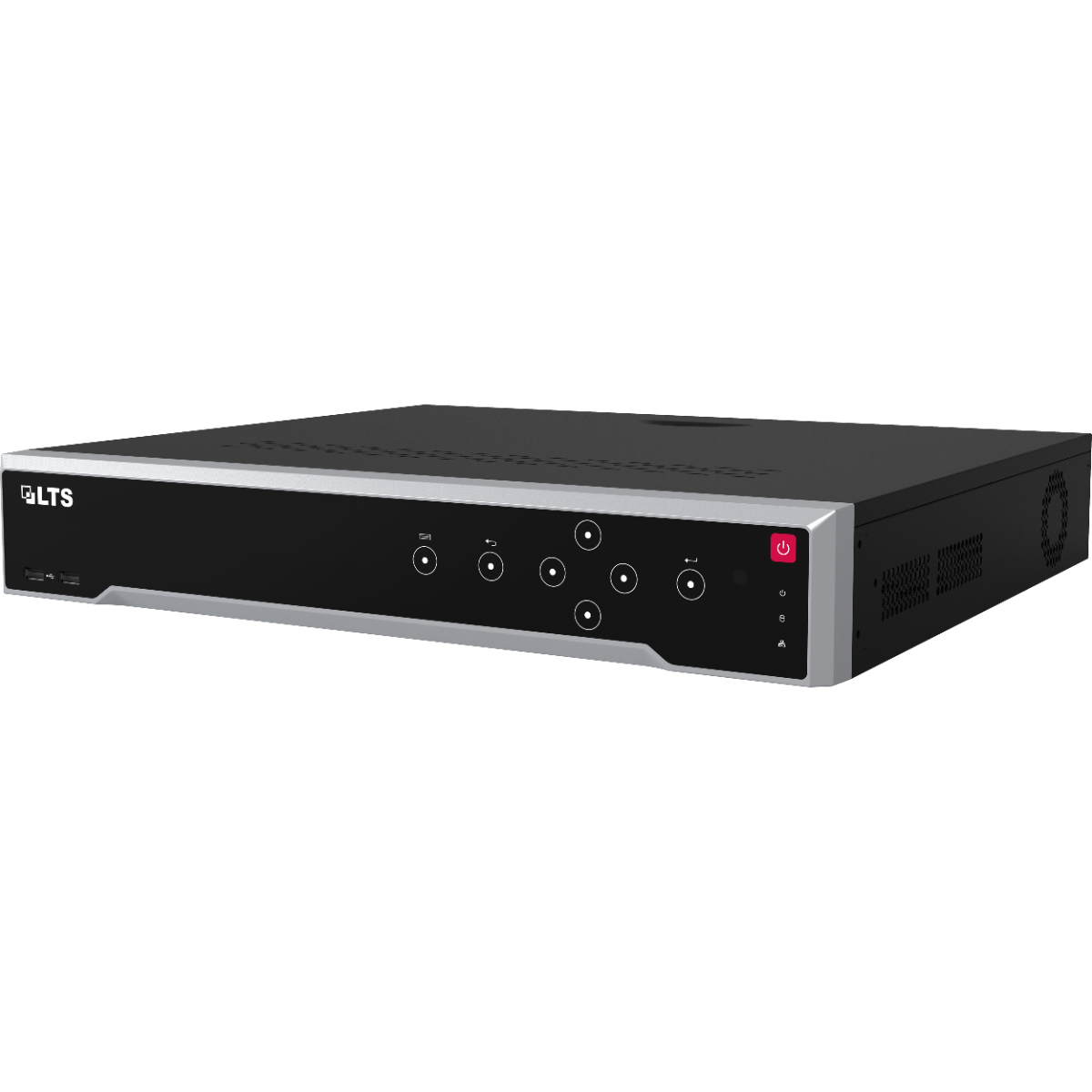

LTS Platinum LTN8932D-P16N 32-Channel 4K NVR with 16 PoE Ports & Direct Search

LTS Platinum LTN8932D-P16N 32-Channel 4K NVR with 16 Built-In PoE Ports

The LTS Platinum LTN8932D-P16N is a 32-channel network video recorder built for larger commercial and enterprise surveillance deployments. It combines 16 integrated Power-over-Ethernet ports with support for up to 32 IP cameras, giving installers a flexible core for retail stores, warehouses, offices, and multi-building sites. With a 256Mbps incoming bandwidth ceiling, four SATA bays for high-capacity hard drives, and built-in Direct Search tools for fast footage review, this NVR is designed to scale alongside growing camera counts without sacrificing playback performance.

Key Features

• 32-channel IP support with recording resolutions up to 32MP per camera for crisp, detailed footage.
• 16 built-in PoE ports that simplify camera installation by supplying power and data over a single cable, reducing the need for a separate PoE switch on smaller layouts.
• 256Mbps incoming bandwidth to comfortably handle multiple high-resolution streams simultaneously.
• H.265+/H.265/H.264+/H.264 compression that can cut storage requirements significantly compared with older codecs.
• Up to 4 SATA interfaces, each supporting hard drives up to 16TB, for large-scale, long-term footage retention.
• Direct Search and smart playback, letting operators select an area of interest in a scene and instantly filter recorded footage for relevant motion events.
• Dual HDMI and VGA outputs, with HDMI video output supporting up to 4K resolution for clear monitoring on modern displays.
• 16-channel synchronous playback for reviewing multiple camera feeds side by side during an investigation.
• POS integration and VCA support, including point-of-sale overlay/triggered recording and video content analytics for smarter alerting.

Built for Growing Commercial Sites

This NVR suits businesses that need centralised recording across a large number of cameras without juggling multiple recorders. It's a strong fit for retail chains, franchise locations, warehouses, and office complexes that want built-in PoE convenience alongside enterprise-grade storage headroom and quick incident-review tools. The combination of high channel count, ample SATA capacity, and Direct Search makes it practical for teams that need to locate specific footage quickly rather than scrubbing through hours of recordings.

What's in the Box

• LTN8932D-P16N 32-channel NVR unit
• Power adapter and cable
• Mouse for local navigation
• Mounting screws and hardware
• Quick start guide

Frequently Asked Questions

Does this NVR include hard drives?
No, hard drives are sold separately. The unit supports up to four SATA drives, each up to 16TB, for a substantial total storage capacity.

Can I connect more than 16 cameras if the NVR has only 16 PoE ports?
Yes. The 16 built-in PoE ports can directly power up to 16 cameras, while additional cameras (up to 32 total channels) can be connected via a separate network switch.

What does the Direct Search feature actually do?
Direct Search lets you draw a specific zone on the video image and the NVR will filter and surface recorded clips where motion occurred in that zone, speeding up footage review.
