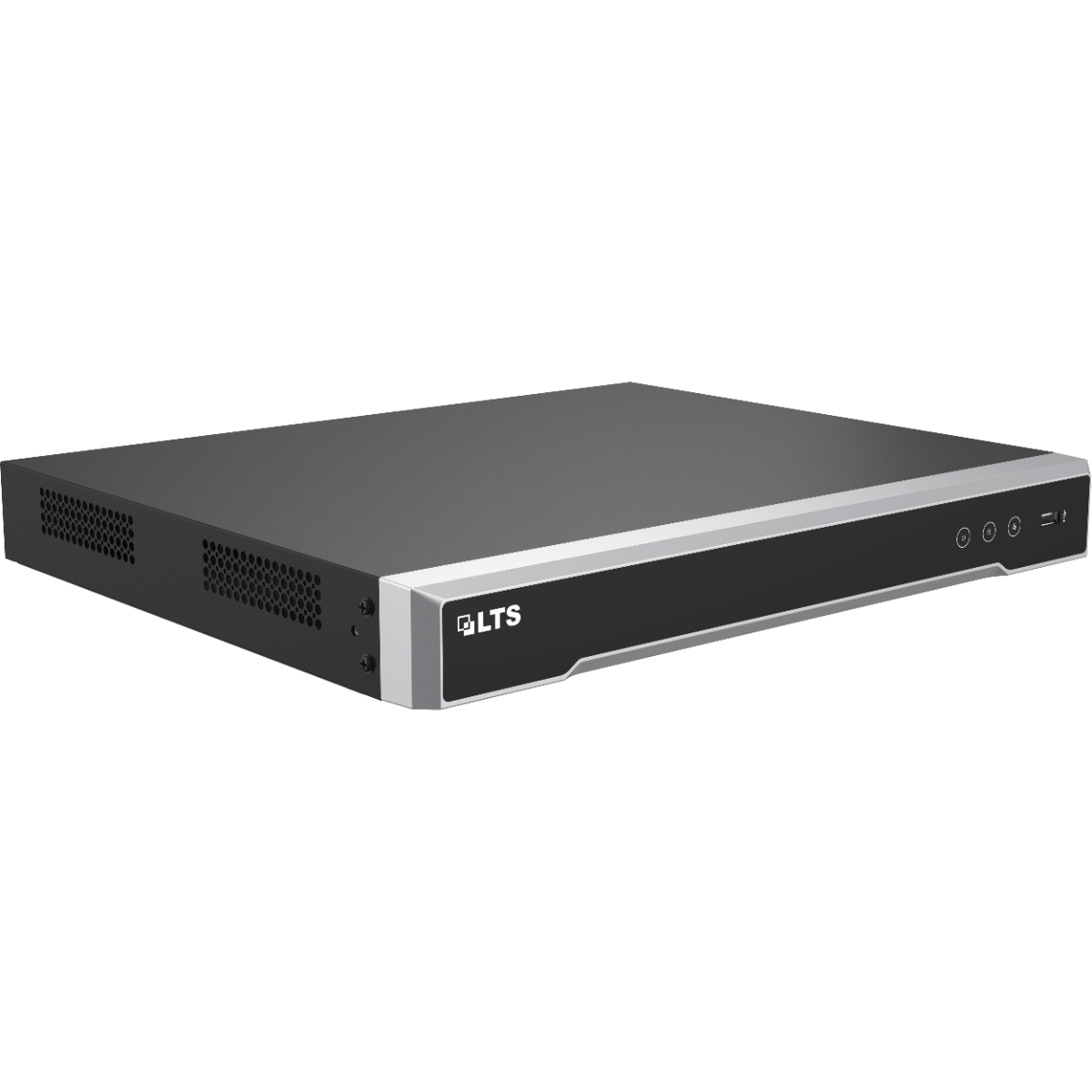

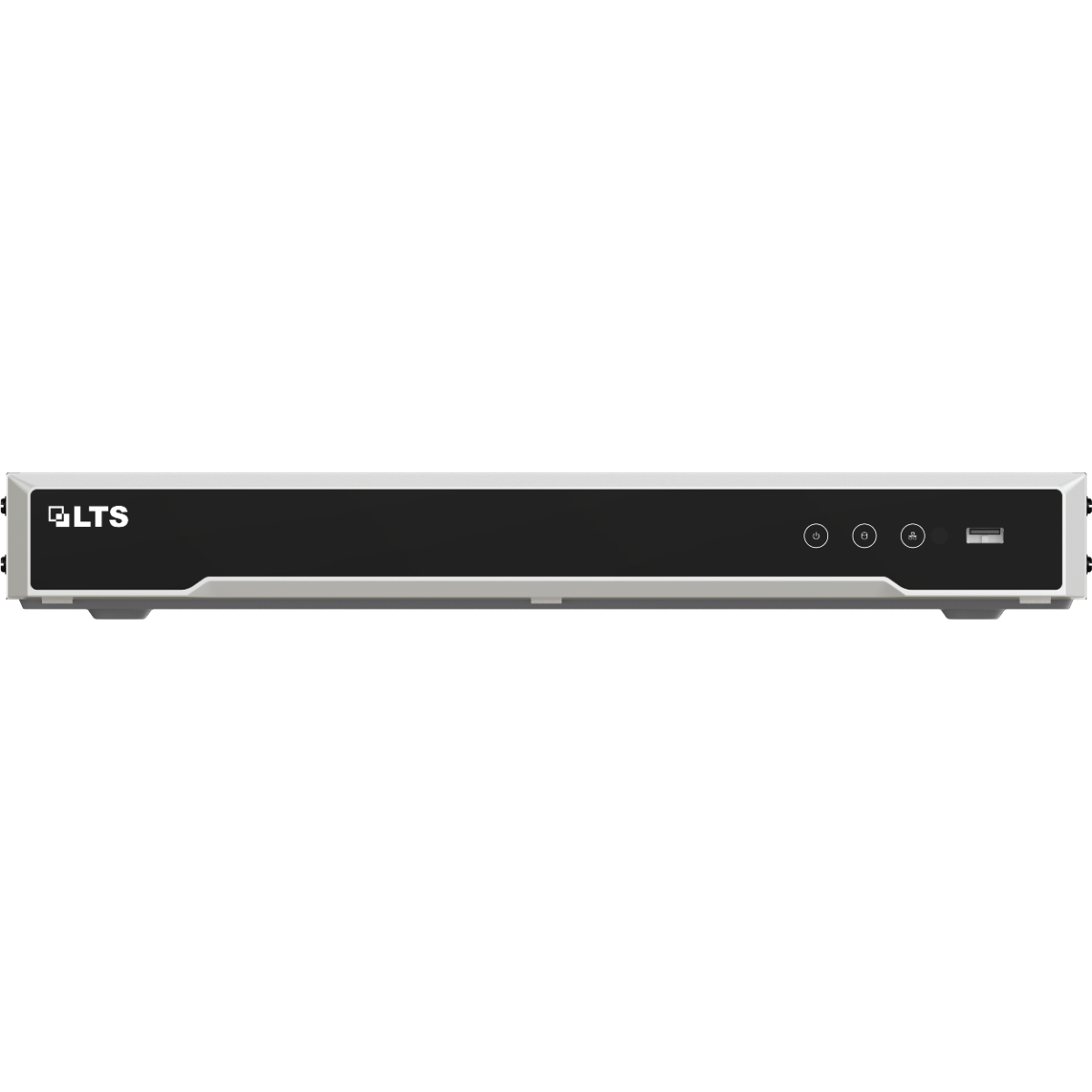

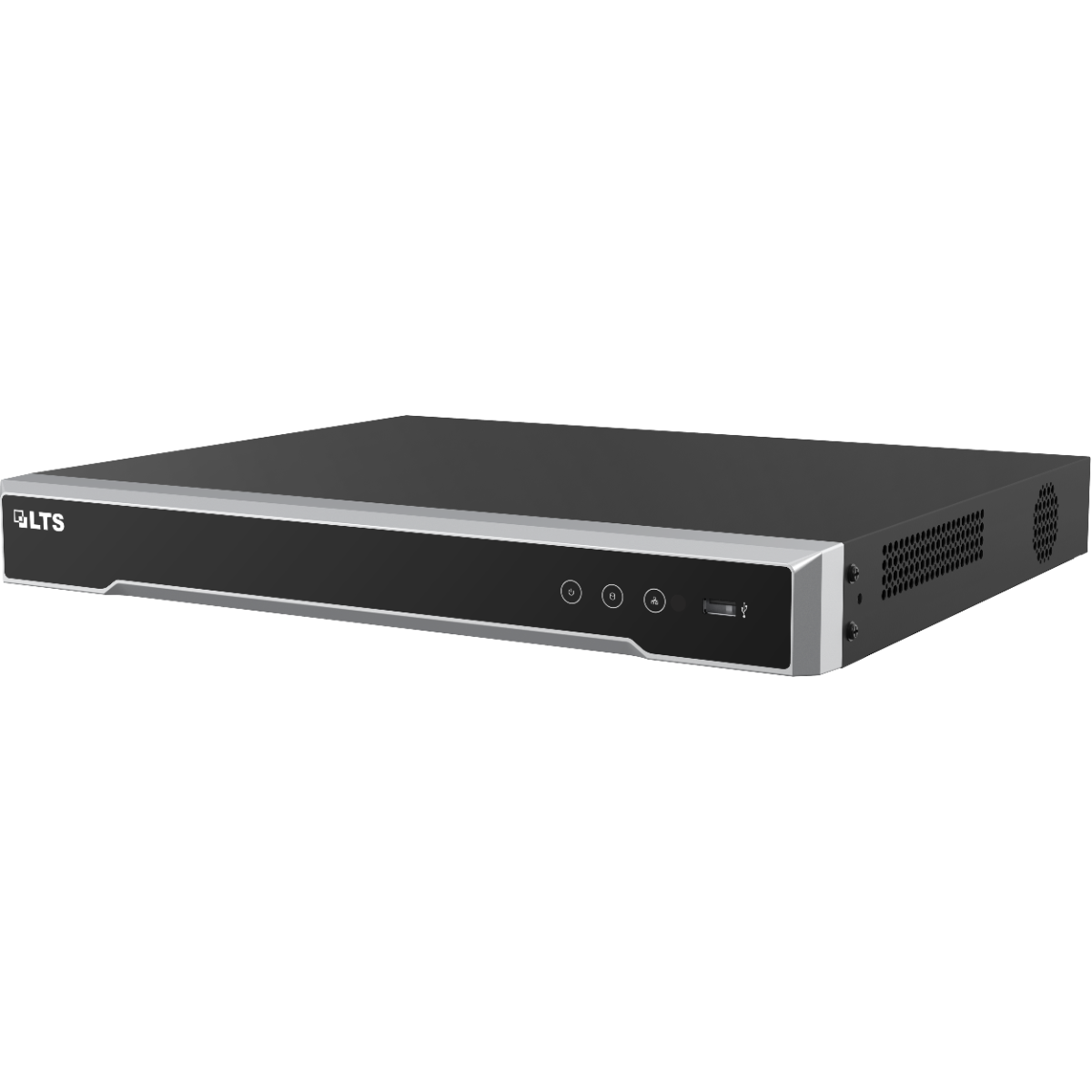

LTS Platinum LTN8616DV-P16 16-Channel 4K DeepVision AI NVR

LTS Platinum LTN8616DV-P16 – 16-Channel 4K DeepVision AI NVR

The LTS Platinum LTN8616DV-P16 is a 16-channel network video recorder built for installers who need genuine AI-powered investigation tools, not just recording. On top of 16 built-in PoE ports for simple single-cable camera deployment, it runs LTS's DeepVision engine – letting operators search hours of footage using plain-language descriptions of what they're looking for, rather than manually scrubbing through timelines. Combined with facial recognition, Direct Search, and strong H.265+ compression, it's built for demanding commercial and enterprise sites where fast forensic review matters as much as reliable recording.

Key Features

• 16-channel DeepVision AI search – locate footage using natural-language, text-based descriptions of people, vehicles, clothing, and activity across all channels at once, dramatically cutting investigation time.
• 16 built-in PoE ports – power and data over a single cable per camera, simplifying installation with no separate PoE switch required.
• Up to 32MP recording support – connect high-resolution IP cameras with 16-channel 4MP decoding for smooth real-time playback.
• 8-channel facial recognition – face picture comparison for faster identification during investigations.
• Direct Search – quickly find similar people and vehicles across recorded footage.
• MD 2.0 human and vehicle detection – motion detection tuned to classify real threats, reducing false alerts from irrelevant movement.
• H.265+ compression – reduces storage requirements by up to 75% compared to standard H.264, extending retention without larger drives.
• 192 Mbps incoming bandwidth – enough headroom for 16 channels of high-resolution footage without dropped frames.
• Two SATA bays, up to 20TB each – up to 40TB of total local storage for extended recording retention.
• 4K HDMI and 1080p VGA outputs – independent video outputs for local monitoring at full resolution.
• POS integration – up to 8 POS connections via TCP for transaction overlay and POS-triggered recording, ideal for retail loss prevention.
• 4 alarm inputs / 1 alarm output – plus two-way audio input/output for integration with existing alarm and intercom hardware.
• LTS Connect & DDNS – fast, secure remote access and monitoring from anywhere.

Built for Serious Investigation Work

Where a standard NVR only records footage, the LTN8616DV-P16 is built to help you actually find what you're looking for afterwards. DeepVision's semantic search and Direct Search tools mean an operator doesn't need to know the exact timestamp of an incident – they can search by description and let the AI narrow it down across all 16 channels. Paired with facial recognition and MD 2.0 human/vehicle classification, it's a strong fit for retail, warehouse, and commercial sites that need both reliable 24/7 recording and fast, accurate incident review.

What's in the Box

• LTS Platinum LTN8616DV-P16 NVR (no HDD included)
• Power adapter/cable
• Mouse
• Mounting hardware
• Quick start guide

Technical Specifications

• Channels: 16-channel IP camera input, 16 built-in PoE ports
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Max Recording Resolution: Up to 32MP
• Incoming Bandwidth: 192 Mbps
• Storage: 2 x SATA, up to 20TB each (40TB max)
• Video Output: 1x HDMI (4K), 1x VGA (1080p)
• PoE Budget: 200W total
• Power Consumption: 15W typical / 280W max
• Form Factor: 1U rackmount
• Dimensions: 380 x 315 x 51.5mm (W x D x H)
• Weight: ~3.0kg (unit only, excluding HDDs)

Dimensions and weight are based on the closely related LTN8616D-P16 chassis; please verify against the physical unit before finalising freight calculations.

Frequently Asked Questions

Does the LTN8616DV-P16 include hard drives?
No, it ships without HDDs – drives are selected and installed separately based on required storage capacity.

Can it work with third-party IP cameras?
Yes, it's compatible with LTS cameras as well as most third-party network cameras, though facial recognition and some advanced AI features are optimised for LTS-compatible hardware.

What makes DeepVision different from standard motion search?
DeepVision allows text-based semantic search – describing what you're looking for (e.g. a person in a red jacket) rather than relying only on timestamps or basic motion triggers, searching across all channels simultaneously.

Is this suitable for retail environments?
Yes, built-in POS integration allows transaction data overlay and POS-triggered recording, commonly used for retail loss prevention.

LTS Platinum LTN8616DV-P16 is available from LTS Security Australia. For bulk or trade pricing, register for a trade account.
