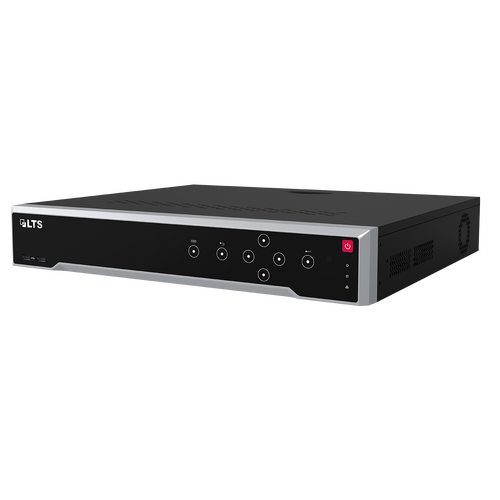

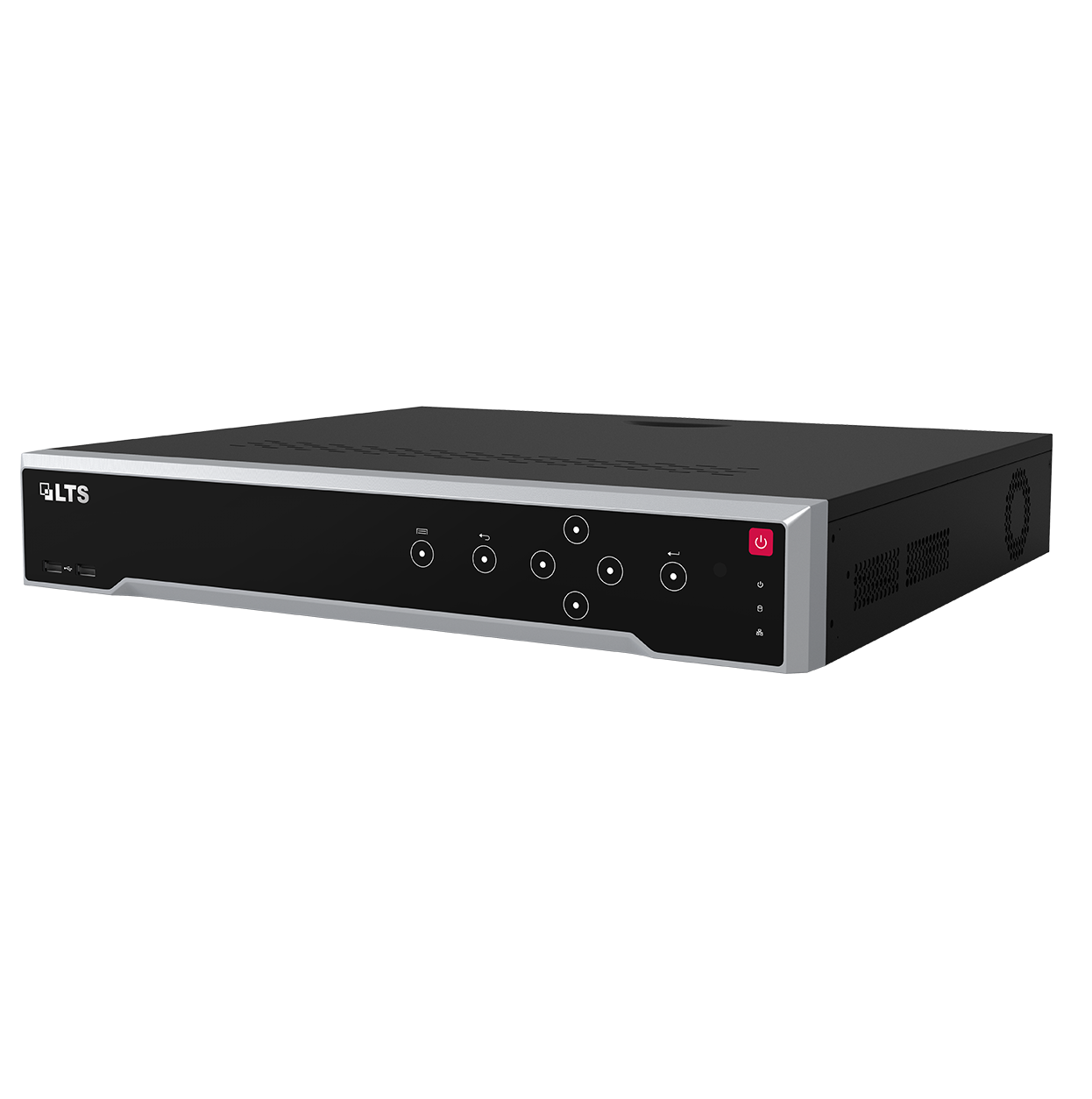

LTS Platinum LTN8932-P16N 32-Channel 8K NVR with 16 PoE Ports

LTS Platinum LTN8932-P16N 32-Channel 8K NVR with 16 PoE Ports

The LTS Platinum LTN8932-P16N is a 32-channel network video recorder built for installers and businesses that need serious recording power without the complexity of an enterprise rack system. With 16 built-in PoE ports, a 320Mbps incoming bandwidth, and support for camera resolutions up to 32MP, this M-Series NVR is designed to handle demanding multi-camera IP installations across retail, warehouse, education, and commercial sites.

Key Features

• 32-channel capacity with 320Mbps total incoming bandwidth for large, high-resolution camera deployments
• 16 built-in PoE ports for direct camera power and data over a single Ethernet cable, reducing cabling and install time
• Up to 32MP recording resolution per channel for extremely detailed footage on supported cameras
• 4 SATA hard drive bays, each supporting drives up to 14TB, for large-scale local storage and long retention periods
• H.265+ compression that can reduce storage consumption significantly compared to standard H.264
• Dual 4K HDMI outputs plus 8K ultra-high-definition video output for flexible, high-resolution monitor walls
• Double decoding capability of up to 8 channels at 4K resolution simultaneously
• Built-in VCA analytics including motion detection, line crossing, intrusion detection, and license plate recognition support
• Secure streaming via TLS encryption and double verification for video playback and downloads

Built for Scalable, High-Resolution Surveillance

This NVR suits mid-to-large surveillance projects such as multi-site retail chains, logistics warehouses, schools, and mixed-use commercial buildings where dozens of IP cameras need to be centrally managed. The combination of 16 native PoE ports and support for third-party ONVIF cameras beyond that count gives integrators flexibility when designing a system, while the generous SATA storage allowance and H.265+ efficiency help keep footage available for extended review periods. POS transaction overlay and heat-map style analytics also make it a practical fit for retail loss-prevention and customer-flow monitoring setups.

What's in the Box

• LTN8932-P16N 32-channel NVR unit
• Power adapter and cable
• Mouse for local GUI navigation
• Mounting screws and accessory kit
• Quick start guide

Frequently Asked Questions

Does the LTN8932-P16N include hard drives?
No, this NVR ships without pre-installed storage. It has 4 SATA bays, each supporting drives up to 14TB, so total capacity depends on the drives you install.

Can I connect more than 16 cameras?
Yes. While it has 16 native PoE ports for direct camera power, the unit supports up to 32 total IP camera channels when additional cameras are powered separately and connected via a network switch.

What compression format does it use?
The recorder supports H.265+, H.265, H.264+, and H.264, with H.265+ recommended for the best balance of image quality and storage efficiency.
