LTS Platinum 16-Channel 4K Hybrid TVI DVR with 4TB HDD

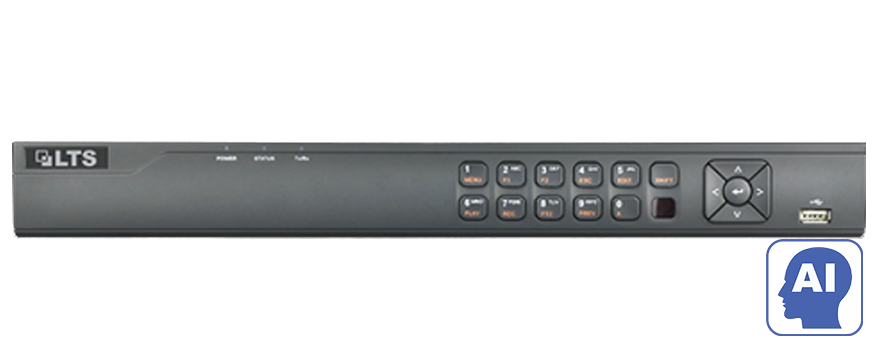

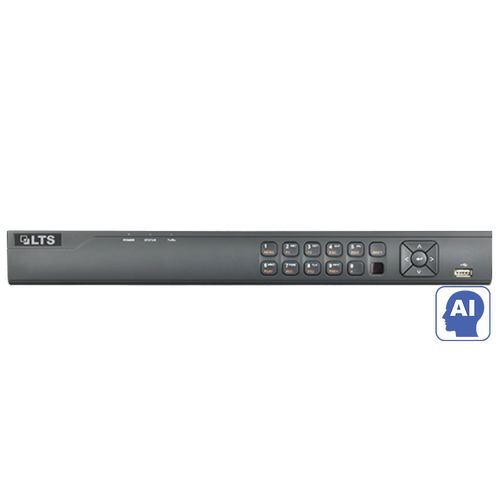

LTS Platinum LTD8516M-ST 16-Channel 4K Hybrid DVR with 4TB HDD

The LTS Platinum LTD8516M-ST is a 16-channel hybrid digital video recorder built for installers and businesses who need flexible, high-resolution surveillance without a full network camera migration. This model ships pre-installed with a 4TB surveillance-rated hard drive, so it is ready to record straight out of the box. It accepts HD-TVI, AHD, CVI and standard analog cameras on its 16 BNC inputs, while also supporting additional IP cameras for a true hybrid setup, making it an easy upgrade path for sites with existing coax cabling.

Key Features

• 16-channel hybrid inputs: Supports HD-TVI, AHD, CVI and CVBS analog cameras up to 8MP, plus IP camera channels for mixed installations.
• 4K HDMI output: Delivers sharp local monitoring alongside VGA and CVBS outputs for flexible display options.
• Deep learning motion detection (MD 2.0): Uses AI-based analysis on up to 4 channels to classify human and vehicle movement, cutting down false alerts from leaves, shadows or lighting changes.
• Perimeter protection: Built-in line-crossing and intrusion detection add a smart security layer beyond basic motion alarms.
• H.265 Pro+ compression: Advanced encoding reduces storage consumption while maintaining recording quality, helping the included 4TB drive go further.
• Dual SATA bays: Two SATA interfaces support drive expansion up to 20TB total for sites needing longer retention.
• Flexible backup and connectivity: USB 2.0 and USB 3.0 ports for fast footage export, plus a Gigabit RJ45 network port for remote access.
• Remote viewing tools: Compatible with LTS-Connect and DDNS services, along with popular Wi-Fi dongles for simplified network setup.

Built for Real-World Security Applications

This DVR suits retail stores, warehouses, offices and multi-camera residential setups that already use analog or HD-TVI cameras but want smarter alerts and 4K-capable playback. Its hybrid design also makes it a practical choice for phased upgrades, letting a site mix existing analog cameras with newer IP cameras on the same recorder rather than replacing an entire system at once.

What's in the Box

• LTS Platinum LTD8516M-ST DVR unit
• Pre-installed 4TB surveillance hard drive
• Power adapter and cable
• Mouse for on-screen navigation
• Mounting screws
• Quick start guide

Frequently Asked Questions

Can this DVR record IP and analog cameras at the same time? Yes, it is a hybrid recorder, so it can manage both analog HD-TVI/AHD/CVI cameras and IP cameras across its available channels.

How much extra storage can I add? The unit has two SATA bays supporting drives up to 10TB each, allowing a total of up to 20TB if you want more recording history beyond the included 4TB drive.

Does it support smartphone or remote viewing? Yes, it works with LTS-Connect and DDNS services for remote access from a phone, tablet or computer over the network.

Product Images & Diagrams
