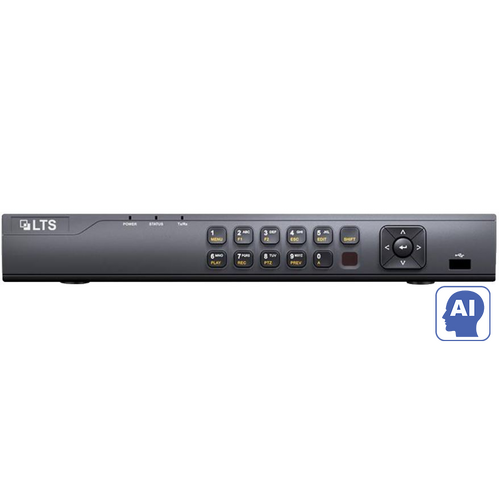

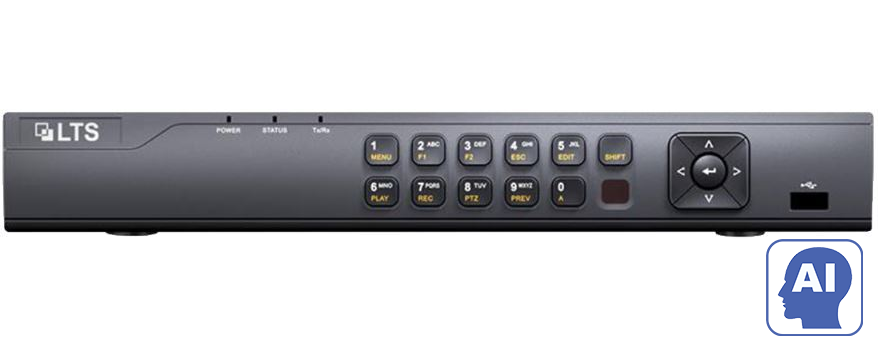

LTS Platinum LTD8504M-ST 4-Channel 4K Penta-brid DVR with 2TB HDD

LTS Platinum LTD8504M-ST 4-Channel Penta-brid DVR with 2TB HDD

The LTS Platinum LTD8504M-ST is a 4-channel Turbo Smart hybrid recorder built for small businesses, retail sites, and homes that need flexible, high-resolution video surveillance without a complicated setup. As a Penta-brid design, it accepts HD-TVI, AHD, HD-CVI, and legacy analog CVBS cameras alongside IP cameras on the same unit, making it an easy fit for upgrades where existing coax cabling needs to be reused. This 2TB pre-installed HDD variant is ready to record straight out of the box, with no separate hard drive purchase required.

Key Features

• Penta-brid flexibility: Supports HD-TVI, AHD, CVI, CVBS analog cameras and IP cameras on the same 4 analog channels.
• Deep learning motion detection 2.0: Reduces false alarms from leaves, shadows, and lighting changes by classifying human and vehicle movement.
• AI perimeter protection: Smart line-crossing and intrusion analytics on select channels for tighter site monitoring.
• High-resolution recording: Up to 8MP on the first channel, with 5MP recording across all 4 channels for consistent image clarity.
• Efficient H.265 compression: H.265 Pro+ encoding conserves storage space while maintaining sharp video quality.

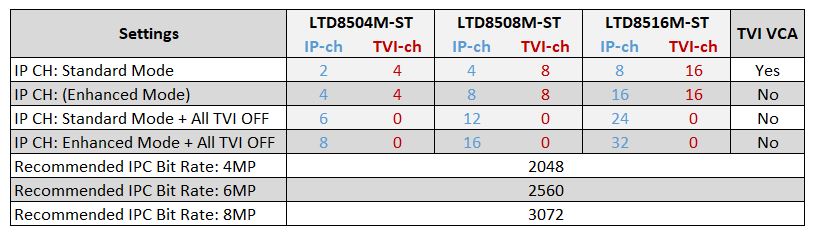

• Extra IP channel support: Add up to 2 additional IP cameras (up to 8MP) or 4 at 4MP for hybrid analog/IP setups.
• Dual video output: Simultaneous HDMI (2K) and VGA outputs for flexible monitor connections, plus CVBS.
• Pre-installed 2TB storage: Ready to record on arrival, expandable via the single SATA bay up to 10TB.
• Simple network access: Built-in RJ45 port for remote viewing and management via LTS mobile and desktop apps.

Ideal Applications

This DVR suits small retail stores, offices, warehouses, and residential properties that need reliable 4-channel coverage of entrances, cash registers, or perimeters. Its ability to mix analog HD-TVI cameras with IP cameras makes it a practical choice for staged upgrades, where an existing analog system is being gradually replaced with IP cameras without needing to replace the whole recorder. The onboard AI motion detection also helps installers deliver smarter alerting without adding extra hardware.

What's in the Box

• LTD8504M-ST 4-channel DVR unit (2TB HDD pre-installed)
• Power adapter and cable
• Wireless mouse
• Mounting screws
• Quick start guide

Frequently Asked Questions

Can I connect IP cameras to this DVR alongside analog cameras?
Yes. In addition to the 4 analog HD-TVI/AHD/CVI/CVBS channels, the LTD8504M-ST supports extra IP camera channels, allowing a hybrid analog and IP camera setup on one recorder.

Does the 2TB hard drive need to be installed separately?
No, this SKU ships with a 2TB HDD already fitted and ready to record; no additional purchase or installation is required to begin recording.

What is deep learning motion detection 2.0?
It's an onboard AI feature that distinguishes between humans, vehicles, and irrelevant movement (like leaves or light changes), significantly cutting down on nuisance alerts.

Product Images & Diagrams
