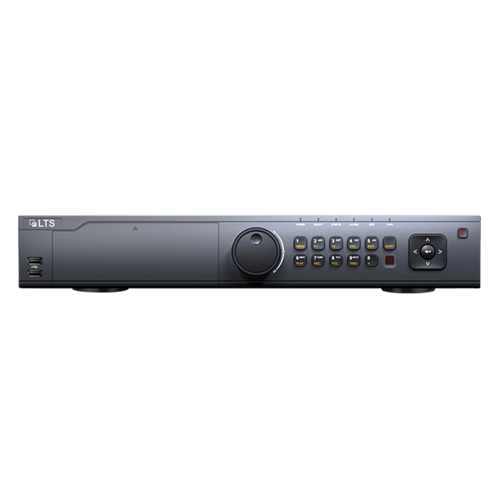

LTS Platinum LTD8432K-ST 32-Channel 5MP HD-TVI DVR with RAID

LTS Platinum LTD8432K-ST 32-Channel HD-TVI DVR with RAID

The LTS Platinum LTD8432K-ST is an enterprise-grade 32-channel digital video recorder built for demanding, high-camera-count installations. Supporting HD-TVI, HD-CVI, AHD and analog inputs alongside additional IP camera channels, this hybrid recorder gives integrators flexibility to mix legacy analog cameras with newer IP devices on a single platform. With RAID-protected storage across four SATA bays, it is designed for sites where footage reliability and long-term retention are critical, such as large retail centres, warehouses, schools and multi-site commercial properties.

Key Features

• 32-channel HD-TVI/AHD/CVI analog input plus additional IP camera channels for hybrid deployments
• Recording up to 5MP on analog channels, with support for higher-resolution IP camera streams
• H.265+ compression to reduce bandwidth and storage requirements without sacrificing image quality
• RAID 0, 1, 5, 6 and 10 support across 4 SATA drive bays for redundancy and fault tolerance, with capacity up to 40TB
• Dual HDMI plus VGA and CVBS video outputs for flexible monitor wall and control room configurations
• 16 alarm inputs and 4 alarm outputs for integration with perimeter sensors, access control and other security devices
• 4-channel audio input and 1-channel audio output for synchronized audio-video review
• Dual Gigabit Ethernet (RJ45) ports for network redundancy and load balancing
• Multiple backup options including 2x USB 2.0 and 1x USB 3.0 ports for fast footage export

Built for Large-Scale, Mission-Critical Surveillance

The LTD8432K-ST is well suited to organisations that need to record dozens of cameras reliably around the clock. Its RAID-capable storage architecture helps protect against drive failure, making it a practical choice for warehouses, logistics hubs, educational campuses, and retail chains that cannot afford gaps in their recorded evidence. The mix of analog and IP inputs also makes it a cost-effective way to extend an existing analog camera investment while gradually migrating to IP cameras.

What's in the Box

• LTS Platinum LTD8432K-ST DVR unit
• Power cable
• Mouse
• Mounting screws and rack accessories
• Quick start guide

Frequently Asked Questions

Does the LTD8432K-ST include hard drives?
No, this is a barebone unit with no pre-installed HDD. Drives must be purchased separately and configured according to the desired RAID level.

Can I mix analog and IP cameras on this DVR?
Yes, the LTD8432K-ST is a hybrid recorder that supports HD-TVI, HD-CVI, AHD and analog cameras on its main channels, plus additional IP camera channels for expanded coverage.

What RAID levels are supported?
The unit supports RAID 0, 1, 5, 6 and 10 across its four SATA bays, allowing installers to balance performance and redundancy based on site requirements.
