LTS Platinum LTD8504D-ST-AU 4-Channel HD-TVI DVR with Direct Search & AI Analytics

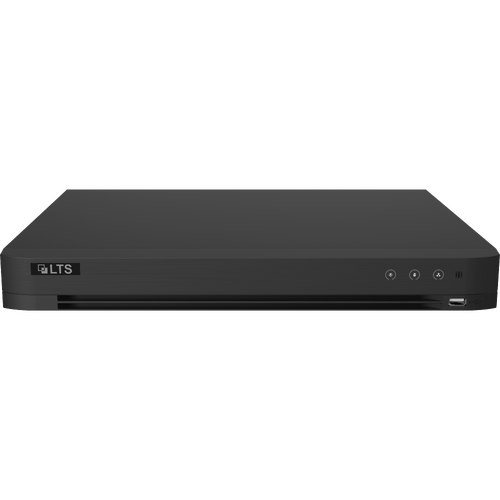

LTS Platinum LTD8504D-ST-AU 4-Channel HD-TVI Hybrid DVR

The LTS Platinum LTD8504D-ST-AU is a 1U hybrid digital video recorder built for small to mid-sized surveillance installations that need clear 4K-capable footage without the cost of a full IP system. It combines 4 analog channels supporting five signal types (HD-TVI, AHD, HD-CVI, CVBS and IP) with 4 additional IP inputs, expandable to 8 IP channels, giving installers flexibility to mix existing analog cameras with newer network cameras on the same recorder. Deep-learning based analytics, H.265 Pro+ compression and a fast Direct Search function make this barebone DVR a practical, budget-friendly core for retail, office, warehouse and residential CCTV upgrades.

Key Features

• Hybrid 5-in-1 Inputs: Each of the 4 analog channels auto-detects HD-TVI, AHD, HD-CVI, CVBS or IP signals up to 8MP for easy camera mixing.
• Expandable IP Support: Adds 4 dedicated IP channels, with the option to scale up to 8 IP camera inputs on the same unit.
• High-Resolution Recording: Encodes at 4K/8MP at 8fps or 3K/5MP at 12fps using efficient H.265 Pro+ compression to save storage space.
• AI-Powered Analytics: Offers 2-channel facial recognition or 4-channel perimeter protection powered by deep-learning algorithms for smarter alerts.
• Direct Search Technology: Speeds up footage review across all 4 channels, helping operators locate events faster during investigations.
• Smart Motion Detection: Deep-learning based human and vehicle classification reduces false alarms from irrelevant motion triggers.
• HDTVI Two-Way Audio: Supports real-time audio communication over coaxial cable with compatible HD-TVI cameras, avoiding separate audio wiring.
• Compact 1U Design: A space-saving chassis with a single SATA bay supporting drives up to 10TB, suited to desktop or rack installation.
• Dual Video Outputs: Simultaneous HDMI and VGA output support high-definition live viewing and smooth smart playback.

Ideal Applications

This barebone DVR (hard drive sold separately) suits businesses upgrading from older analog CCTV without replacing every camera, as well as new installs where budget-conscious hybrid coverage is preferred. Typical deployments include small retail stores, offices, cafes, warehouses and residential properties that want AI-assisted facial recognition or perimeter alerts alongside standard motion-based recording, all managed from a single, compact recorder.

What's in the Box

• LTD8504D-ST-AU 4-Channel Hybrid DVR unit
• Power adapter and cable
• Mouse for local navigation
• Mounting screws and quick start guide
• Hard drive not included - purchase separately

Frequently Asked Questions

Does this DVR include a hard drive?
No, the LTD8504D-ST-AU is sold as a barebone unit. A compatible SATA hard drive up to 10TB must be purchased separately to record footage.

Can I connect IP cameras as well as analog cameras?
Yes, the unit supports 4 analog (5-in-1) channels plus 4 additional IP channels, with the option to expand IP camera input up to 8 channels total.

What resolution can this DVR record at?
It supports recording up to 4K/8MP at 8fps on a single channel, or 3K/5MP at 12fps, using H.265 Pro+ compression for efficient storage use.
