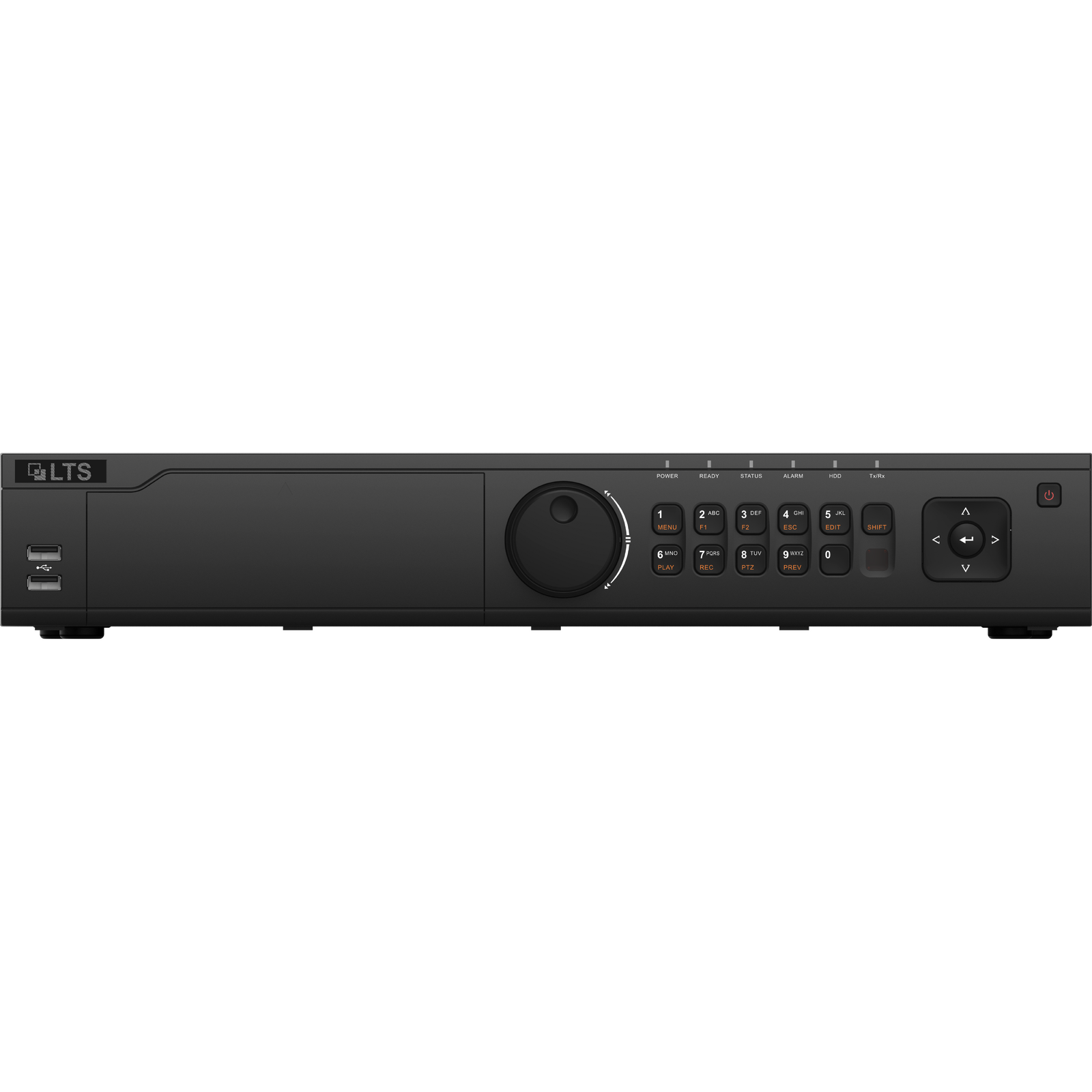

LTS Platinum 32-Channel HD-TVI DVR with RAID Storage (LTD8432M-STS-AU)

LTS Platinum LTD8432M-STS-AU 32-Channel HD-TVI DVR with RAID

The LTS Platinum LTD8432M-STS-AU is an enterprise-grade 32-channel hybrid digital video recorder built for businesses that need serious storage redundancy and camera flexibility. Housed in a compact 1.5U rack-mount chassis, this DVR combines 32 channels of HD-TVI analog recording with additional IP camera support, four SATA hard drive bays with RAID protection, and H.265 Pro+ compression to keep footage secure without blowing out storage budgets. It's a practical choice for installers upgrading larger coax-based analog sites or building new mid-to-large scale surveillance deployments.

Key Features

• 32-channel HD-TVI analog input supporting HD-TVI, AHD, HDCVI, and standard analog cameras up to 8MP resolution via a true 5-in-1 hybrid design.
• Expandable IP camera support, allowing additional network cameras to be added alongside the analog channels for hybrid site expansion.
• Four SATA HDD bays plus eSATA with support for large-capacity drives, giving installers substantial onboard storage headroom.
• RAID 0, 1, 5, 6, and 10 storage schemes for configurable redundancy, helping protect recorded footage against individual drive failure.
• H.265 Pro+ video compression to reduce file sizes and stretch available storage capacity across longer retention periods.
• Dual HDMI and VGA outputs for flexible monitor setups in control rooms or security offices.
• Built-in audio over coax and alarm I/O for integrating audio capture and external alarm triggers into a single recording platform.
• Dual Gigabit Ethernet interfaces with DDNS and remote access support for network monitoring and management.
• 1.5U rack-mount housing designed for efficient use of rack space in comms rooms and server cabinets.

Built for Growing Commercial Sites

This DVR suits retail chains, warehouses, transport yards, and multi-building commercial properties where camera counts are high and downtime isn't an option. The combination of RAID storage and high channel density means integrators can consolidate what might otherwise require multiple smaller recorders into one centrally managed unit, while the hybrid TVI/IP input flexibility supports a gradual migration path from legacy analog cameras to networked systems.

What's in the Box

• LTS Platinum LTD8432M-STS-AU DVR unit
• Power supply/cable
• Mouse for local navigation
• Mounting screws and rack accessories
• Quick start guide

Frequently Asked Questions

Does this DVR come with hard drives installed?
No, the LTD8432M-STS-AU is sold as a barebone unit, so compatible SATA hard drives need to be purchased and installed separately to suit the required storage capacity.

Can I mix analog and IP cameras on this recorder?
Yes, the DVR is a hybrid platform, supporting up to 32 HD-TVI/analog channels alongside additional IP camera channels for flexible system expansion.

Is RAID configuration mandatory?
No, RAID is optional and configurable, giving installers the choice between maximum raw storage or added redundancy depending on the site's risk tolerance.
