Ajax Superior NVR H2DAI2GAC 32-Channel Black

Ajax Superior NVR H2DAI2GAC 32-Channel Black

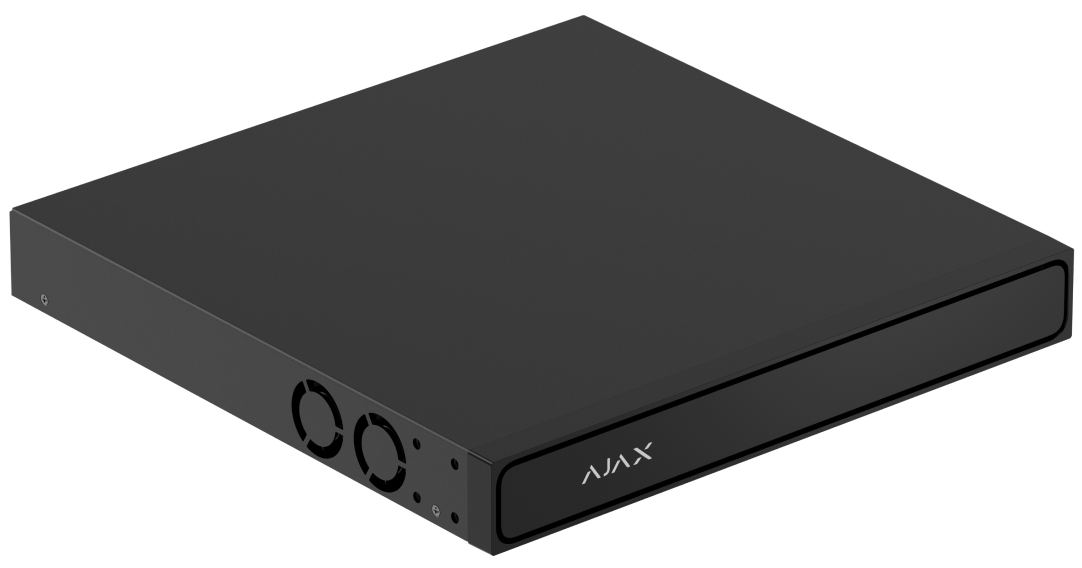

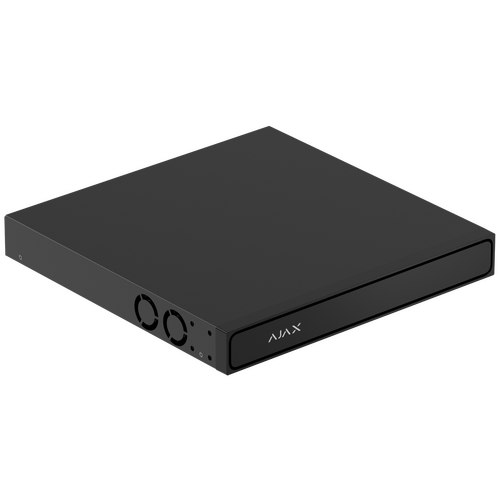

Ajax Superior NVR H2DAI2GAC is a 32-channel AI recorder with two Gigabit ports and no onboard PoE — cameras sit on an external PoE switch. Onboard analytics pick people, pets, vehicles and line-crossing on Ajax cameras, and on up to 12 third-party channels. Two hot-swap bays take drives up to 24 TB each.

Key Features

• 32 IP channels with 4K HDMI (3840 × 2160) local output
• No onboard PoE — cameras connect through an external switch; two Gigabit WAN/LAN ports
• 2 × SATA III hot-swap bays, up to 24 TB each (drives not included), redundancy or split recording
• 2 × Gigabit RJ45 (WAN + LAN, 10/100/1000)
• Codecs: H.265, H.264, JetSparrow; bandwidth 384 Mbps incoming / 384 Mbps outgoing
• 1 × USB 3.0 front, 2 × USB 2.0 rear; ONVIF Profile S and RTSP for third-party cameras
• Onboard AI: people, pets, vehicles and line crossing; third-party AI on up to 12 channels
• Built-in VMS, video wall, Ajax alarm-to-camera highlight, accelerometer tamper
• Indoor IP20, 100–240 V AC, up to 60 W; 24-month manufacturer warranty

Where it fits

Larger sites that already have a PoE switch: 16–32 cameras, dual-NIC LAN/WAN split, AI search in the archive. Local 4K HDMI monitoring. Indoor rack. HDDs not included.

What's in the Box

• Ajax Superior NVR H2DAI2GAC (32-ch)
• 2 × rack-mount brackets
• Power cable
• Ethernet cable
• Installation kit
• Quick start guide

Specifications

• Model: Superior NVR H2DAI2GAC (32-ch) — Black
• Dimensions: 330 × 330 × 44 mm (0.330 × 0.330 × 0.044 m)
• Weight (without drives): 2.72 kg
• Operating: 0–50 °C, up to 75% RH, indoor only

Official specs: https://ajax.systems/products/specs/superior-nvr-h2dai2gac-32-ch/
