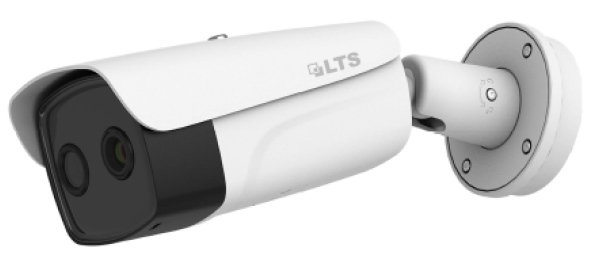

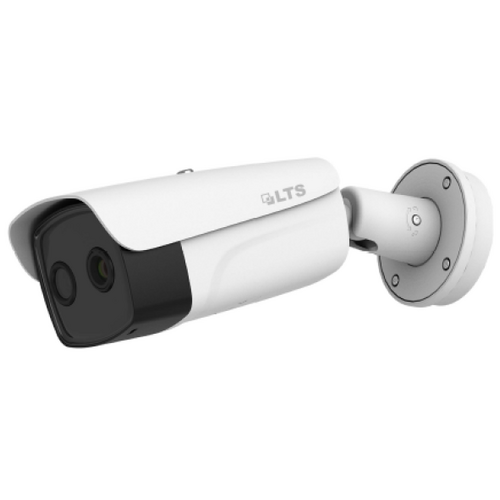

LTS Platinum CMIP793TD-7 7mm Thermal Bi-Spectrum Perimeter Bullet Camera

LTS Platinum CMIP793TD-7 Thermal Bi-Spectrum Perimeter Bullet Camera

The CMIP793TD-7 is the 7mm-lens variant in LTS's Platinum Thermal Perimeter bullet camera series, purpose-built for sites where reliable detection matters more than pretty pictures. It pairs a 384x288 uncooled thermal core with a visible-light optical sensor in a single bi-spectrum housing, letting operators see a heat signature and a verifying colour image side by side. Combined with PoE power, an IP66 weatherproof shell and onboard video analytics, it is designed to hold a perimeter line day or night, in fog, glare or total darkness, and flag genuine intrusions rather than shadows or blowing debris.

Key Features

• 384x288 thermal sensor with 1.75mrad resolution for consistent heat-signature detection across the monitored zone.
• Bi-spectrum design fuses the thermal feed with a 1/2.7" progressive scan CMOS optical sensor (up to 2688x1520) so alerts can be visually confirmed, not just flagged.
• 7mm thermal lens tuned for shorter to mid-range perimeter coverage; the same CMIP793TD platform is also offered in 15mm, 25mm and 35mm focal lengths for longer throw applications.
• Onboard temperature measurement across an approximate -20°C to 550°C range, supporting early fire and overheating detection alongside intrusion monitoring.
• F1.0 aperture lens and 120dB wide dynamic range for usable footage in strong backlight, glare and low-light scenes.
• IP66-rated housing built to withstand sustained outdoor exposure, dust and driving rain.
• Power over Ethernet (PoE) for single-cable installation, cutting cabling cost on remote perimeter runs.
• Deep-learning perimeter analytics including line crossing, intrusion detection and region entry/exit, generating targeted alerts instead of blanket motion triggers.
• Engineered to integrate with LTS Platinum NVRs for centralised alarm handling, temperature event logging and recording.

Built for Perimeter Security and Early Fire Risk Detection

The CMIP793TD-7 suits fence lines, yards, substations, warehouses, construction sites and rural or remote boundaries where cabling runs are long and ambient lighting is inconsistent. Because thermal imaging does not rely on visible light, it keeps working through total darkness, fog and glare that would blind a standard camera, while the optical channel lets guards or reviewers quickly confirm what triggered an alert. The camera's temperature-sensing capability also makes it a useful early-warning tool for hot spots or fire risk on industrial and infrastructure sites, working alongside its perimeter intrusion analytics rather than as a separate system.

What's in the Box

• CMIP793TD-7 thermal bi-spectrum bullet camera
• Mounting bracket and fixing hardware
• Waterproof cable gland/connector kit
• Quick installation guide

Frequently Asked Questions

What does the "-7" in CMIP793TD-7 mean?
It refers to the 7mm thermal lens fitted to this model. The same CMIP793TD series is also available with 15mm, 25mm and 35mm thermal lenses for longer detection distances.

Can this camera actually measure temperature, or just detect motion?
Both. Alongside standard video and analytics, its thermal sensor supports temperature measurement across a wide range, which is useful for spotting overheating equipment or early fire risk in addition to perimeter intrusion detection.

Does the CMIP793TD-7 need a separate power supply?
No. It supports Power over Ethernet (PoE), so it can be powered through a compatible PoE switch or NVR using a single network cable.
