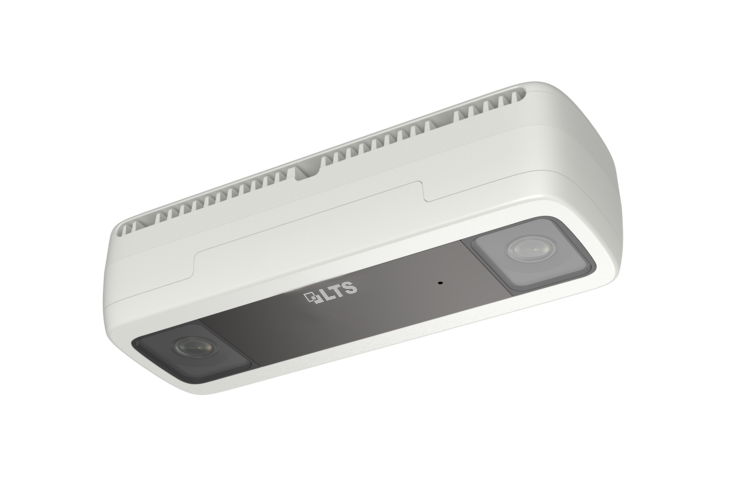

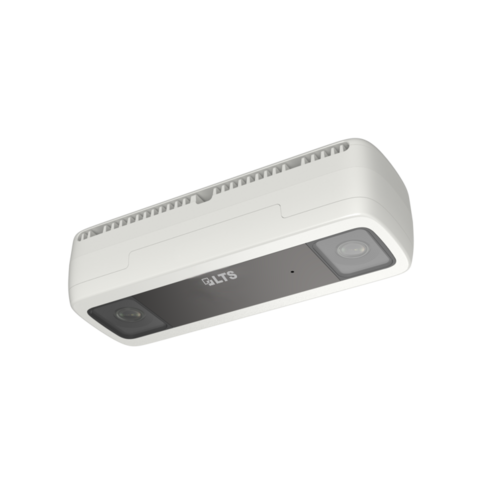

LTS Platinum CMIP6H22W-2 2MP Dual-Lens 3D People Counting Camera

LTS Platinum CMIP6H22W-2 2MP Dual-Lens 3D People Counting Camera

The CMIP6H22W-2 is a purpose-built IP camera from the LTS Platinum range that uses two lenses working together to build a 3D view of an entrance or walkway. An onboard AI engine analyses this 3D data to tell the difference between an actual person and an inanimate object such as a trolley, pram or shopping bag, so the count stays accurate even when people cross paths or move through together. It is designed for retailers, shopping centres, gyms, libraries and any venue that needs reliable, reportable foot-traffic data.

Key Features

• Dual-lens 3D detection: two imaging sensors combine to separate genuine people from bags, trolleys and other moving objects for a more accurate tally.
• 2MP resolution: 1920x1080 output at up to 30fps for clear, smooth footage of entry and exit points.
• 2.0mm fixed lens with a wide field of view (approximately 105° horizontal, 71° vertical, 112° diagonal) suited to doorways and narrow entrances.
• Automated reporting: generates daily, weekly, monthly and annual count summaries that can be exported to Excel for easy analysis.
• H.265 / H.265+ compression with Profile S/G support to keep bandwidth and storage requirements manageable.
• Image quality tools including DWDR, BLC and 3D DNR for consistent performance in variable lighting.
• Built-in matrix IR illumination up to 6m at 850nm for usable footage in low light.
• Weatherproof IP67 housing plus PoE (802.3af, 8.3W) or 12VDC power options for flexible installation.
• Built-in microphone with audio in/out for additional audio capture alongside the video feed.

Typical Applications

The CMIP6H22W-2 is ideal wherever a business needs to know exactly how many people pass through a specific point. Retailers can measure how many shoppers enter and leave a store to calculate conversion rates and justify marketing spend, while centre managers can compare traffic across multiple entrances to plan staffing on busy versus quiet days. The same accurate counting also supports fire-safety compliance by helping ensure occupancy limits inside a building are not exceeded, and the exportable reporting makes it straightforward to share results with stakeholders.

What's in the Box

• CMIP6H22W-2 dual-lens IP camera
• Mounting bracket and screws
• Installation template
• Quick start guide

Frequently Asked Questions

Does the CMIP6H22W-2 need a PoE switch or NVR to work?
The camera can be powered via PoE (802.3af) or a standard 12VDC supply, and it is designed to integrate with LTS NVR and VMS platforms for viewing, storage and report generation.

How accurate is the people count when a group enters together?
The dual-lens 3D system is specifically designed to handle multiple people entering or leaving at the same time; with correct mounting height and setup, the camera differentiates individuals rather than counting a group as one movement.

Is this camera suitable for outdoor entrances?
Yes, the housing carries an IP67 rating, making it suitable for covered or exposed outdoor entry points as well as indoor doorways.
