LTS PRO-X LXN7104-P4 4-Channel 4K PoE NVR with NDAA Compliance

LTS PRO-X LXN7104-P4 4-Channel 4K PoE Network Video Recorder

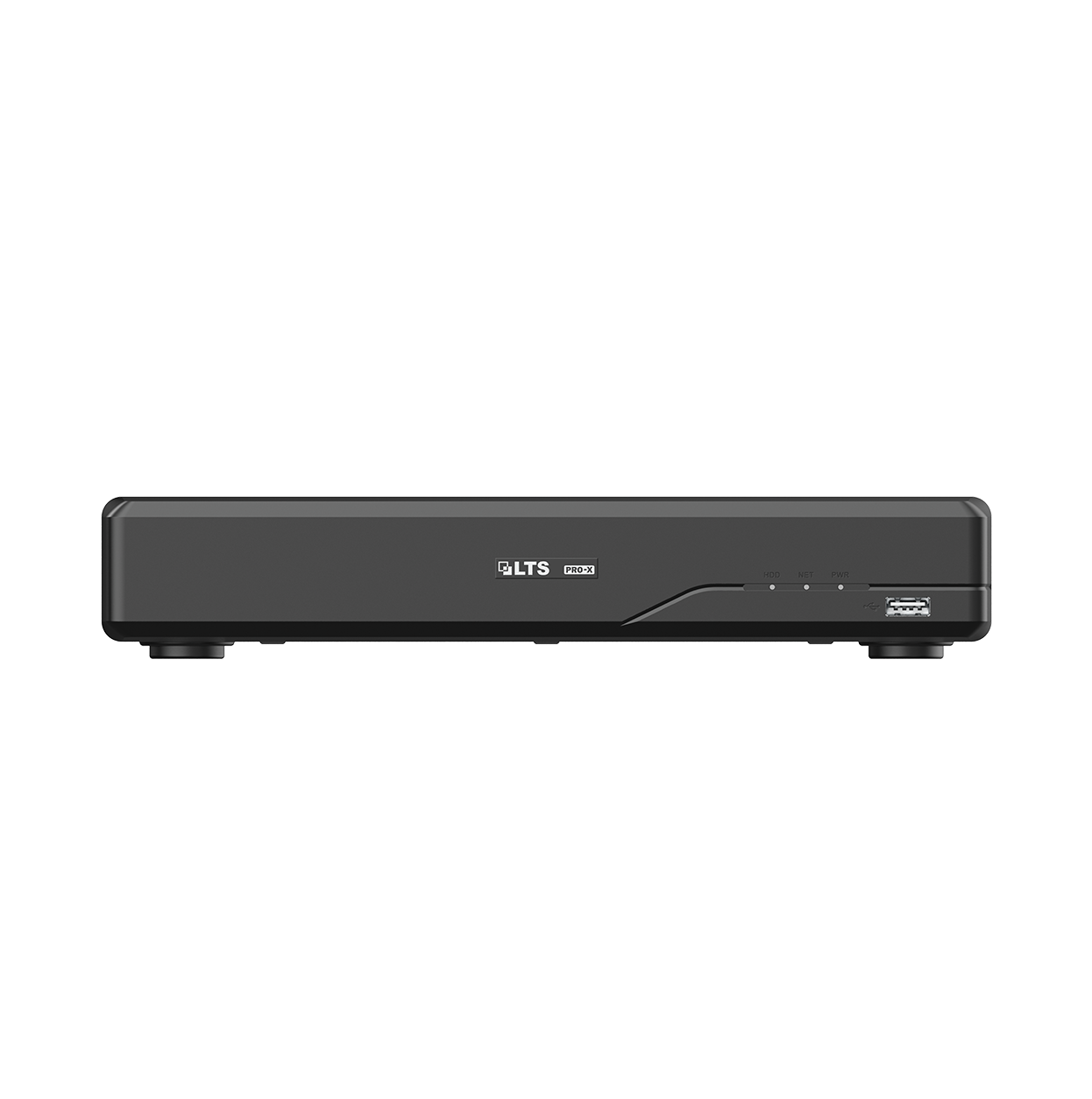

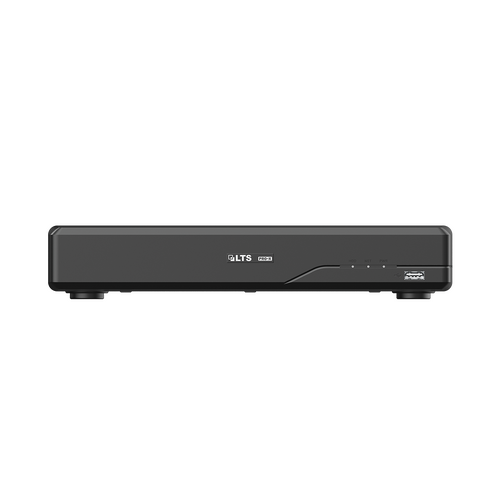

The LTS PRO-X LXN7104-P4 is a compact 4-channel network video recorder built for small business and residential surveillance installs that need clean, plug-and-play IP camera performance. Housed in a 1U chassis with 4 built-in PoE ports, it powers and records up to four IP cameras without the need for a separate switch or power injectors. As part of the NDAA-compliant PRO-X range, it suits government, education, and other regulated environments where supply-chain compliance is a purchasing requirement.

Key Features

• 4-channel IP recording with a total incoming bandwidth of up to 80 Mbps
• 4 built-in PoE ports for simplified single-cable camera installation and power
• Supports camera resolutions up to 8 MP (3840 x 2160), including 2 channels at full 4K or 4 channels at 4 MP simultaneously
• HDMI output up to 4K (3840 x 2160) and VGA output up to 1080p for flexible monitor connections
• Smart compression with H.264, H.265, and H.265+ encoding to reduce storage and bandwidth demands
• Built-in intelligent analytics including motion detection 2.0, perimeter protection, human face detection, and license plate recognition (LPR)
• 1 x SATA bay supporting hard drives up to 10 TB for extended recording retention
• 2 x USB 2.0 ports for backup, mouse control, or firmware updates
• 1 channel audio in/out (RCA) and a single 10/100 Mbps RJ45 network port

Reliable Recording for Small-Scale IP Camera Systems

This NVR is designed for locations that need dependable 4K-capable recording without the complexity of a large rack-mounted system, such as retail shops, offices, warehouses, or home security setups. Its built-in PoE ports let installers deploy up to four IP cameras quickly by running a single Ethernet cable per camera, while the advanced analytics support proactive alerts for intrusion, loitering, or vehicle and face detection. The NDAA-compliant design also makes it a straightforward choice for public sector and contract work where non-compliant hardware cannot be used.

What's in the Box

• 1 x LTS PRO-X LXN7104-P4 NVR unit
• 1 x Power adapter and cord
• 1 x Mouse for local navigation
• Mounting screws and quick-start documentation
• Note: Hard drive is sold separately

Frequently Asked Questions

Does the LXN7104-P4 include a hard drive?
No, the unit ships without a hard drive. It supports one SATA drive up to 10 TB, which should be purchased separately based on required storage duration.

How many cameras can this NVR support, and at what resolution?
It supports up to 4 IP cameras, with a maximum single-channel resolution of 8 MP (4K), or a mixed configuration such as 2 channels at 4K and additional channels at lower resolutions within the 80 Mbps total bandwidth.

Is this NVR suitable for government or regulated projects?
Yes, the PRO-X series, including the LXN7104-P4, is built to meet NDAA compliance requirements, making it appropriate for government, education, and other regulated procurement environments.
