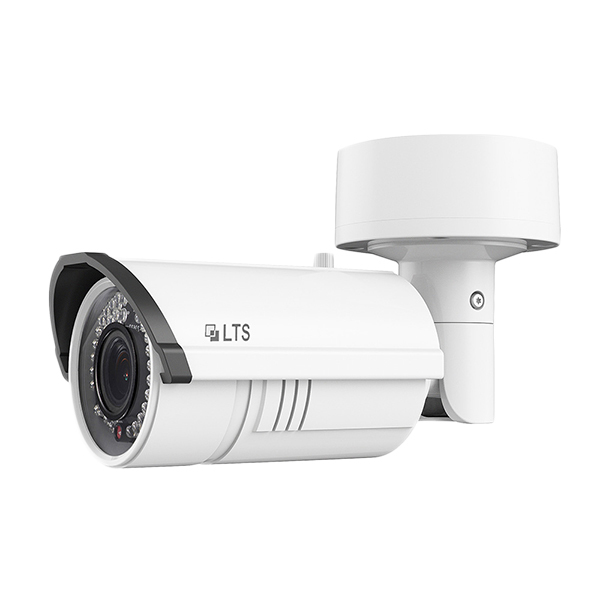

4.1MP IP Bullet (2.8-12mm Motor-Lens)

CMIP-9743-SZ

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from Unit 25 / 17 Lorraine Street Peakhurst NSW 2210 (9am-5pm)

  • 4.1MP High Definition
  • 2.8-12mm Varifocal Motorized Lens
  • 2688X1520P@20fps
  • 42 IR LEDs up to 100ft
  • Audio I/O, Alarm I/O
  • 3D DNR, WDR, BLC, VCA
  • Micro SD/SDHC/SDXC Card Slot
  • IP66
  • Junction Box Included
  • DC 12V, PoE



Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4, Motorized lens
Lens Mount Φ14
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Compression Standard
Video Compression H.264 / MJPEG/H.264 Zip+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2688×1520
Frame Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset Yes
General
Working Temperature
/Humidity
-22 °F ~ 140°F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5 W with IR cut filter on)
IR Range Approx. 100ft(30 meters)
Weather Proof Ratings IP66
Dimensions 3.7” × 4.1” × 10.2”(95×105×258.6 mm)
Weight 2.65lbs (1200 g)

(CMIP-9743-SZ)

SKU CMIP-9743-SZ
Brand LTS
Shipping Weight 1.8000kg
Shipping Width 0.158m
Shipping Height 0.388m
Shipping Length 0.157m
Shipping Cubic 0.009625000m3
