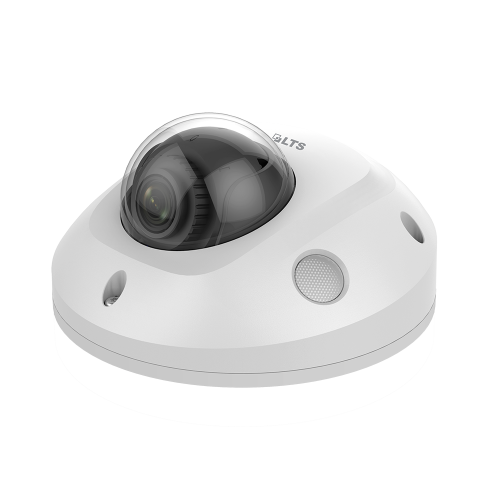

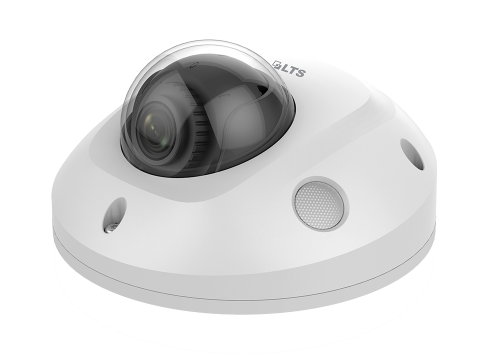

6MP Micro dome 2.8mm (CMIP3162NW-28S)

CMIP3162NW-28S

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from Unit 25 / 17 Lorraine Street Peakhurst NSW 2210 (9am-5pm)

6MP High Definition, 120dB Wide Dynamic Range, 3D DNR, BLC, Support H.265+, Built-in Microphone, Audio Output, Alarm I/O, IP67, Vandal Proof, DC 12V, PoE

Camera Series Platinum Series
Camera Resolution 6MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor  1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8mm@F2.0
2048 × 1536:Angle of view: 86°
1920 × 1080:Angle of view: 98.5°
Lens Mount M12
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360°
Compression Standard
Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 compression profile Main Profile/High Profile
Bit Rate 256 Kbps to 16 Mbps
Audio compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Resolution 3072 × 2048
Frame Rate

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
System Compatibility ONVIF, PSIA, CGI, ISAPI
General functionalities One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
Alarm interface 1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)
General
Working Temperature
/Humidity
-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Ingress Protection Level IK08, IP66
Material  Front cover: plastic, Bottom base: metal
Dimension  Φ110 mm × 56.4 mm (Φ4.3" × 2.2")
Weight Camera: Approx. 400 g (0.9 lb.)

(CMIP3162NW-28S)

SKU CMIP3162NW-28S
Brand LTS
Shipping Weight 0.7420kg
Shipping Width 0.164m
Shipping Height 0.100m
Shipping Length 0.252m
Shipping Cubic 0.004133000m3
