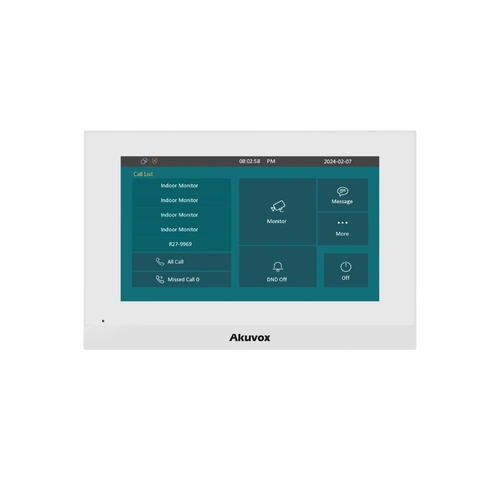

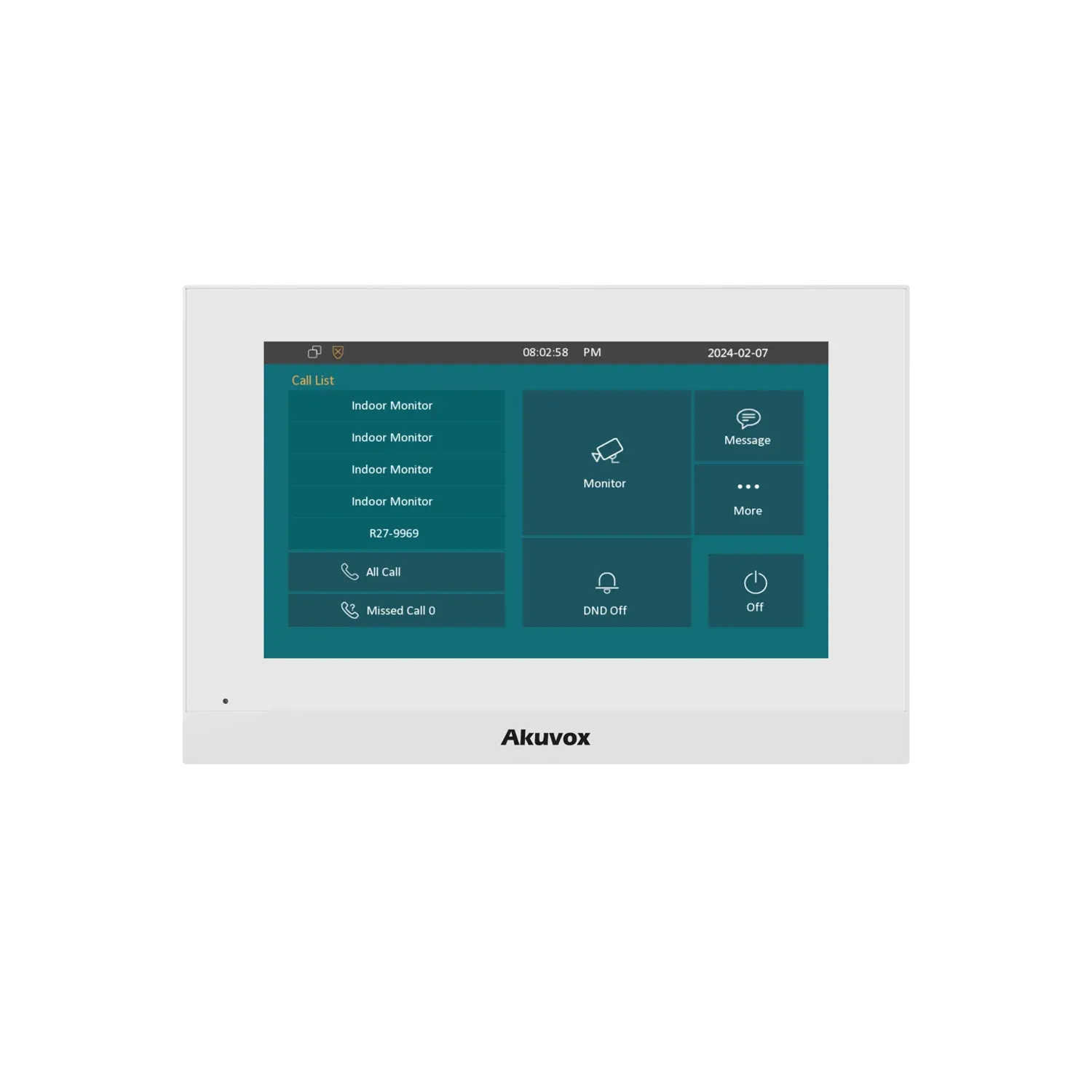

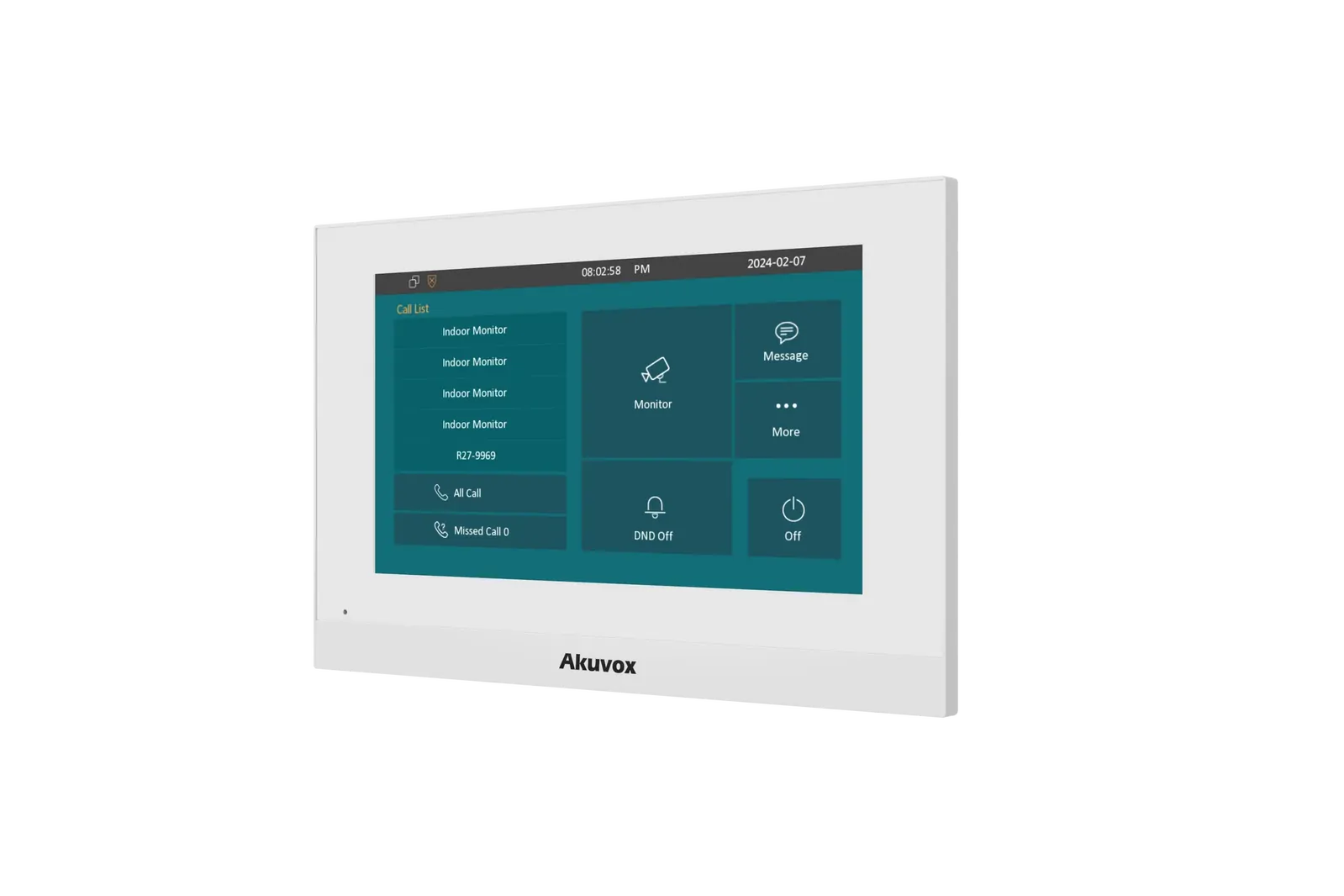

Akuvox C313W-2 White 7-Inch 2-Wire Linux SIP Indoor Intercom Monitor

Akuvox C313W-2 White 7-Inch 2-Wire Indoor Monitor

The Akuvox C313W-2 is a slimline, Linux-based indoor intercom monitor built for apartments, villas and small offices that need to retrofit or upgrade an existing 2-wire door entry system. Its 7-inch capacitive touchscreen delivers clear video calling and two-way audio with compatible Akuvox door stations over the SIP 2.0 standard, while the space-saving white housing suits almost any interior wall or table setting.

Key Features

• 7-inch capacitive touchscreen with 800x480 resolution for crisp video and an intuitive on-screen interface
• 2-wire IP networking that reuses existing analogue cabling via an NS-2 or NC-2 module, cutting retrofit costs and installation time
• Built-in Wi-Fi (2.4GHz 802.11 b/g/n) and Bluetooth for flexible network connectivity beyond the wired connection
• Standard SIP v1/v2 protocol support for interoperability with third-party SIP servers and PBX systems
• Flexible power options, running from an NS-2 2-wire power module, PoE, or an external 48V DC supply
• RS485, relay output, alarm input and TF card slot for expanded automation, access control and local storage
• Energy-saving standby mode that keeps the display responsive while reducing idle power draw
• ONVIF protocol support, allowing compatible CCTV cameras to be viewed directly from the monitor
• Slim profile with US/EU wall box compatibility for a clean, low-profile finish in tight spaces

Built for Modern Apartment and Villa Intercom Systems

Because it works over existing 2-wire cabling, the C313W-2 is particularly well suited to renovation projects and older residential or commercial buildings where pulling new network cable is impractical. Paired with an Akuvox 2-wire door station such as the R20A-2 or R20K-2, residents can see and speak with visitors, trigger the door relay, and monitor entrances, all from the crisp white touchscreen unit. Integration with the Akuvox SmartPlus app and Akuvox Cloud also lets residents extend call and unlock functions to their smartphone.

What's in the Box

• 1 x C313W-2 Indoor Monitor (White)
• 1 x Table Stand
• 1 x Wall Mounting Bracket and Screws
• 1 x Network/Power Cable Accessories
• Quick Installation Guide

Frequently Asked Questions

Can the C313W-2 be installed using existing 2-wire cabling?
Yes. It is designed to run over legacy 2-wire cabling via the Akuvox NS-2 module, making it ideal for retrofits without rewiring an entire building.

Does this monitor support wireless connectivity?
Yes. It includes built-in 2.4GHz Wi-Fi and Bluetooth in addition to its wired 2-wire and network connections.

What door stations is it compatible with?
It is designed for Akuvox 2-wire systems and commonly paired with 2-wire door stations such as the R20A-2 or R20K-2 via an NS-2 power module.
