Akubela KXKS-B1B8-EU 8-Button KNX Scene Control Panel

Akubela KXKS-B1B8-EU 8-Button KNX Scene Panel

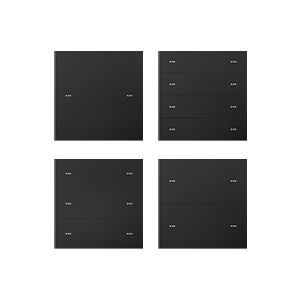

The Akubela KXKS-B1B8-EU is a wall-mounted KNX scene control panel featuring eight programmable buttons for triggering lighting, climate, and shading scenarios in a connected building. Designed as a bus-powered add-on for KNX/EIB installations, it links directly to compatible actuators so installers can build flexible, multi-function control points without extra wiring for power. Its compact form factor suits a standard 60mm wall box, making it a practical retrofit or new-build option for smart home and light commercial automation projects.

Key Features

• Eight independently configurable buttons for scene recall, switching, or dimming commands
• Direct KNX/EIB bus connection for both data and power, removing the need for a separate mains supply
• Works alongside KNX actuators to manage switching, dimming, colour adjustment, and blind or curtain positions
• Supports scene calling and scene storage so multiple device states can be activated with one press
• Allows delayed transmission of values, such as switch or dimming levels, for staged automation sequences
• Each button can be configured to carry out more than one operation, increasing control density per panel
• Slim 86 x 86 x 38.2mm housing with IP20 protection, suited to standard indoor wall boxes
• Fully configured through ETS software for tailored KNX project integration
• CE and EIB/KNX certified for compliance with European electrical automation standards

Where This Panel Fits in a KNX System

This panel is intended for rooms or zones where several lighting, shading, or climate actions need to be grouped into simple one-touch commands, such as living areas, meeting rooms, hotel suites, or entryways. Because each button can be mapped to a scene rather than a single device, installers can consolidate multiple actuator commands, for example dimming lights, closing blinds, and adjusting temperature, behind one keypress. Its bus-powered design also simplifies cabling in retrofit projects where running additional mains wiring to a wall plate is impractical.

What's in the Box

• Akubela KXKS-B1B8-EU 8-button KNX scene panel
• Bus connection terminal block
• Mounting and installation hardware for standard wall boxes
• Quick installation reference guide

Frequently Asked Questions

Does this panel need its own power supply?
No. It draws power directly from the KNX bus, so a separate power adapter or mains connection is not required for basic operation.

Can each button control more than one device?
Yes. Buttons can be configured through ETS to trigger scenes involving multiple actuators, such as lighting, blinds, and dimmers, simultaneously.

What size wall box is required for installation?
The panel is designed to fit a standard 60mm installation box commonly used in EU electrical wiring, with a recommended junction box depth of around 50-70mm depending on wiring connections.
