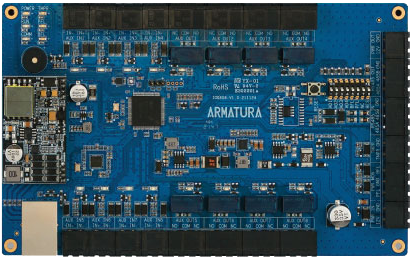

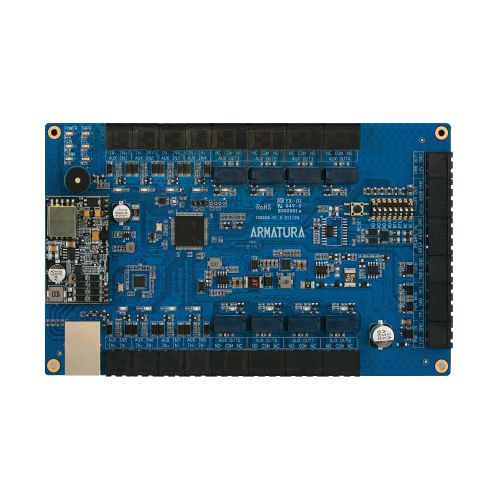

IO Expansion Board (8x In/Out)

AHEB-0808 - "IO Expansion Board" - [ Elevator Licence : ECPL ]

• 1x RS-485 (OSDP V2.2)
• 8x Supervised input 4 state resistor 5% tolerance
• 8x Relay output Form-C dry contacts
• 1x Power Input (PWR IN)
• 1x Power output (PWR OUT)
• 1x Power detection (AC Fail)
• 1x Backup battery detection (BAT Fail)
• 1x Tamper input (TMPR)
• 12-24vDC ± 20%
• 550mA max.
• Dimensions : 193(W) x 116(H) x 17.5mm(D)
