Ajax DomeCam Mini 5MP 2.8mm Black PoE IP Dome Camera

Ajax DomeCam Mini 5MP 2.8mm Black PoE IP Dome Camera

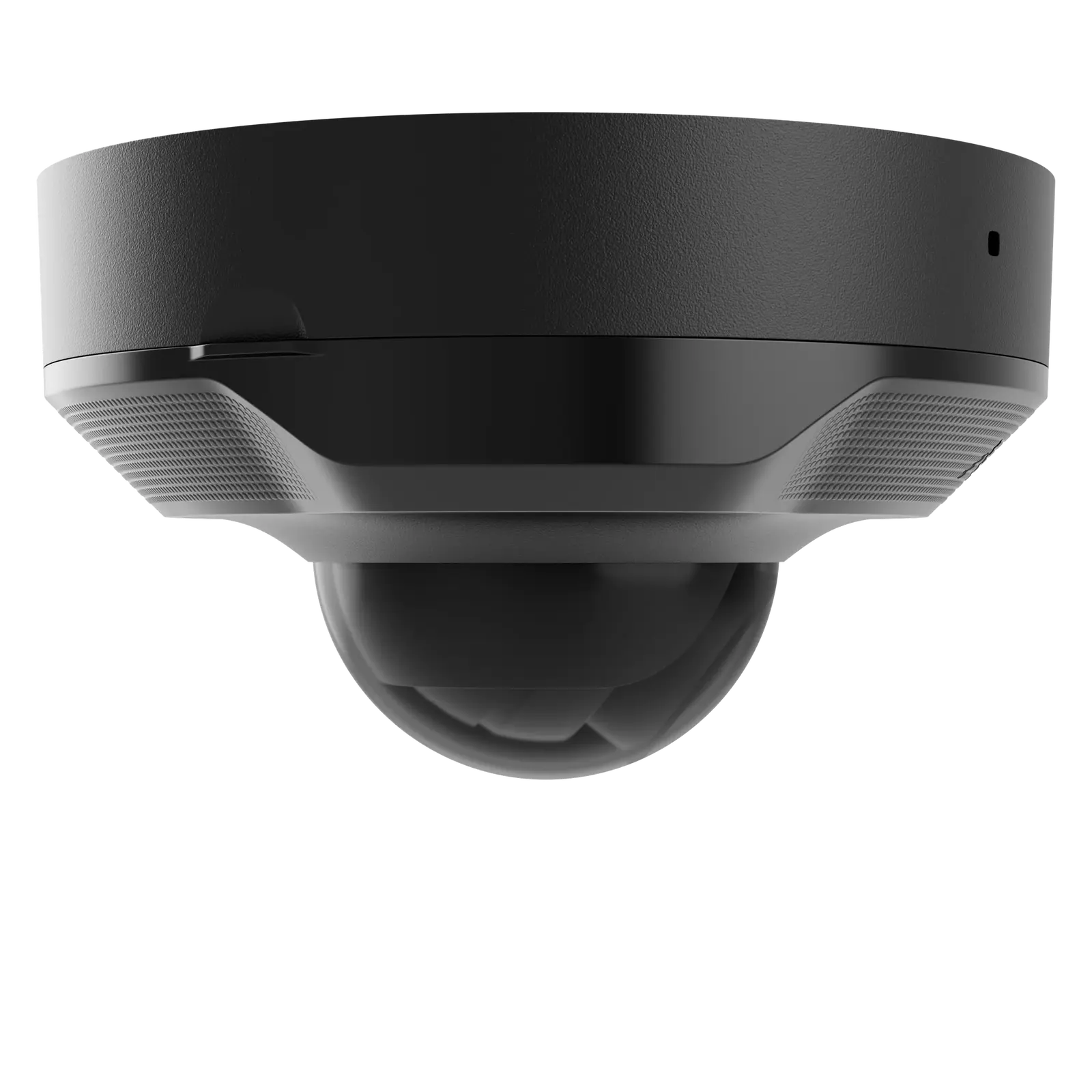

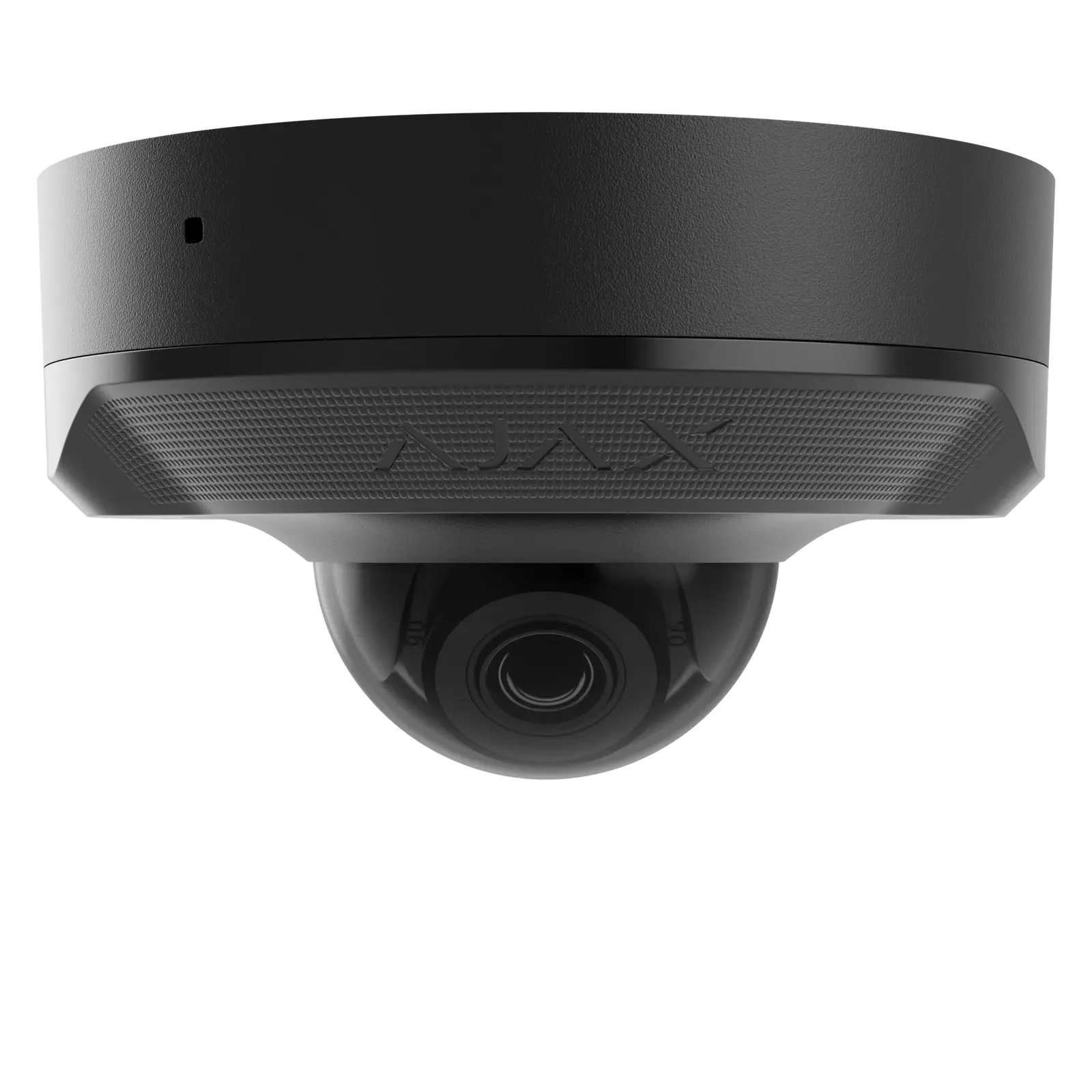

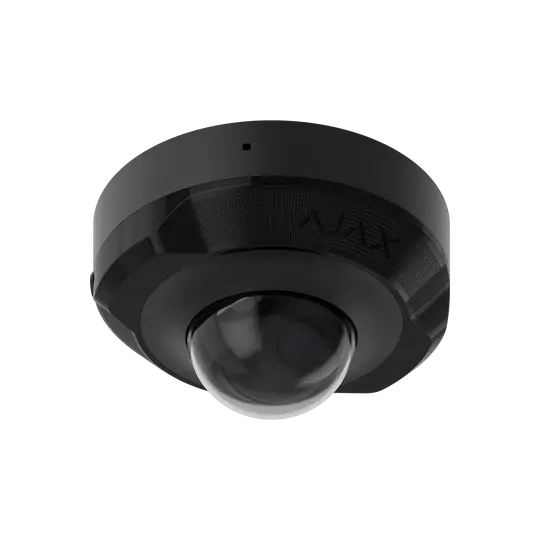

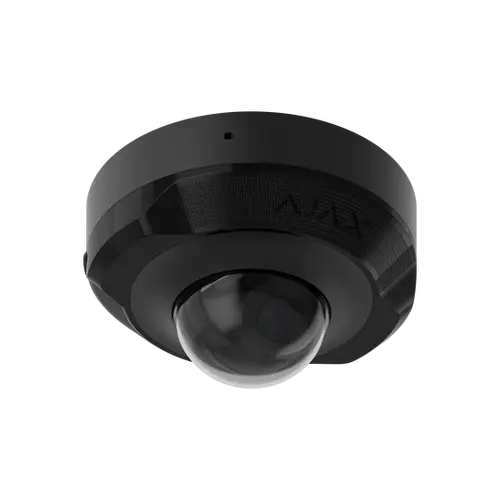

The Ajax DomeCam Mini is a compact wired dome camera built to work seamlessly with an Ajax security system while also standing on its own as a capable PoE surveillance camera. With a 5MP sensor, a 2.8mm fixed lens, and onboard AI-based object recognition, it delivers sharp footage and smarter alerts for homes, offices, and small commercial sites. The black metal housing is IP65-rated, so it copes well with both indoor installs and covered outdoor locations.

Key Features

• 5MP CMOS sensor capturing detailed video up to 2880 x 1620px resolution
• 2.8mm fixed lens with a wide 100-110 degree field of view, ideal for entries, hallways, and small rooms
• AI object detection that distinguishes people, vehicles, and animals to cut down on false motion alerts
• Smart IR night vision with automatic intensity adjustment to avoid washed-out close-up footage
• H.264 and H.265 compression with HDR/WDR support for balanced exposure in high-contrast scenes
• JetSparrow protocol, Ajax's proprietary peer-to-peer streaming technology for fast, low-latency live viewing
• Flexible storage via microSD card (up to 256GB) or an Ajax NVR with hard drive support
• PoE or 12V DC powered, simplifying cabling for professional installs
• Built-in microphone and tamper accelerometer for audio capture and sabotage alerts

Designed to Work With Your Ajax Alarm System

Where this camera really shines is inside an Ajax security ecosystem. It can be configured so that Ajax motion detectors or door/window sensors trigger the camera to start recording automatically, giving installers and monitoring operators instant visual verification of an alarm event. Footage and live views are accessible through the Ajax mobile and desktop apps, including a video wall view for keeping an eye on multiple cameras at once. It also works as a standalone PoE IP camera integrated into third-party VMS software for sites that don't require a full alarm system.

What's in the Box

• Ajax DomeCam Mini (5MP/2.8mm) camera, black
• Mounting hardware and installation template
• Hex key for securing the camera lid
• Quick start guide

Frequently Asked Questions

Does this camera need an Ajax hub to work?
No. It can run as a standalone PoE IP camera, but pairing it with an Ajax hub unlocks alarm-triggered recording and visual verification features.

Is a memory card included?
No, a microSD card is not supplied. The camera supports cards from 32GB up to 256GB, or footage can be stored on an Ajax NVR instead.

Is it suitable for outdoor use?
Yes, the metal enclosure carries an IP65 rating, making it suitable for covered outdoor areas as well as indoor installation.
