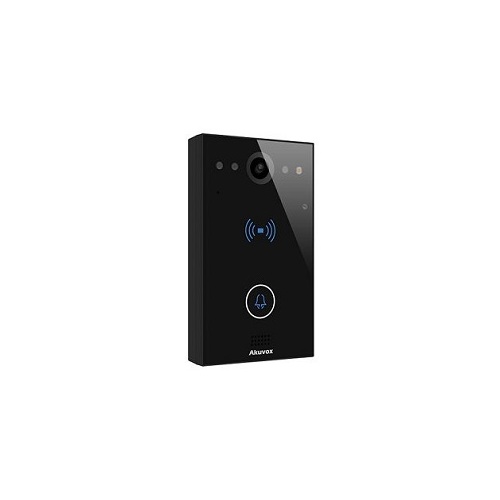

Akuvox E11R 2MP PoE IP Video Doorphone with RFID Card Reader

Akuvox E11R 2MP PoE IP Video Doorphone with RFID Card Reader

The Akuvox E11R is a compact, single-button SIP video door station built for entrances that need reliable video verification and contactless access in one weatherproof unit. Powered over Ethernet and fitted with a wide-angle 2-megapixel camera, this doorphone lets residents or staff see and speak with visitors before granting entry, while the built-in RFID reader allows authorised cards or fobs to open the door without a call. Its plastic housing, robust temperature rating and surface-mount back plate make it a practical choice for apartment entries, office receptions, gated communities and small commercial sites.

Key Features

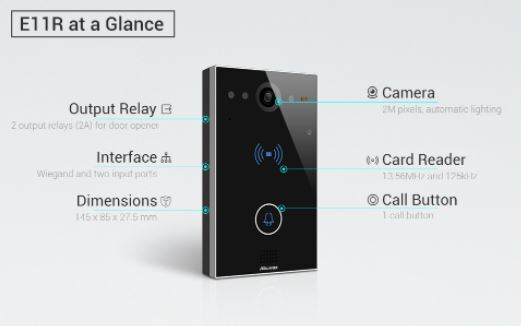

• 2MP wide-angle camera with a 116° horizontal and 60° vertical field of view for clear coverage of visitors at the door
• HD video up to 1280x720p at 30fps using H.264 compression for smooth, detailed live viewing

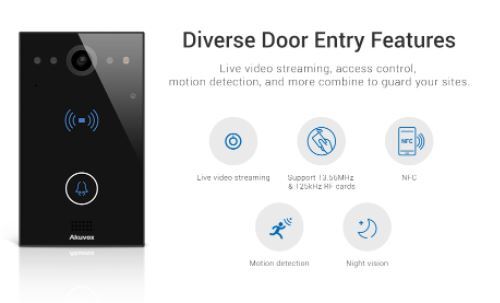

• Built-in RFID reader supporting 13.56MHz and 125kHz cards or key fobs for fast, contactless entry
• Power over Ethernet (IEEE802.3af) simplifies installation by delivering power and data over a single cable
• Illuminated single call button that can ring up to eight connected indoor monitors or SIP endpoints at once
• Two-way audio with echo cancellation, voice activation detection and comfort noise generation for clear conversations
• Infrared LEDs and light sensor automatically improve image quality and visitor recognition in low-light or night conditions
• Two relay outputs and two inputs plus Wiegand support for integrating additional locks, gates or third-party access control
• SIP and ONVIF compliant, allowing integration with common IP-PBX systems and network video recorders

Ideal Applications

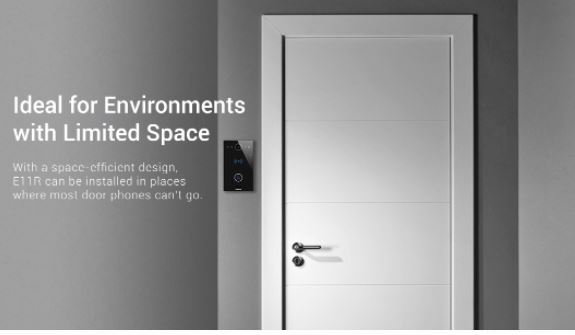

The E11R suits multi-dwelling units, apartment lobbies, entrance gates and unmanned office receptions where a compact, weather-resistant door station is needed. Because it works with standard SIP infrastructure and Akuvox indoor monitors, it is equally at home in a small business using an on-site or hosted IP-PBX as it is in a residential complex wanting simple card-based access alongside video calling.

What's in the Box

• Akuvox E11R video doorphone unit
• Surface-mount back plate
• Mounting screws and installation hardware
• Quick installation guide

Frequently Asked Questions

Does the E11R need a separate power supply? No, it can be powered over the network cable using PoE, though a 12V DC supply is also supported.

Can the E11R work without video, as an audio-only intercom? Yes, the camera feed can be disabled if only audio calling is required.

What access credentials does the RFID reader accept? It reads both 13.56MHz and 125kHz cards or fobs, and also supports Wiegand for connecting external readers or controllers.
