Certech 305m Cat6 U/UTP Solid LSZH Cable Reel – Green

Certech 305m Cat6 U/UTP Solid LSZH Cable Reel – Green

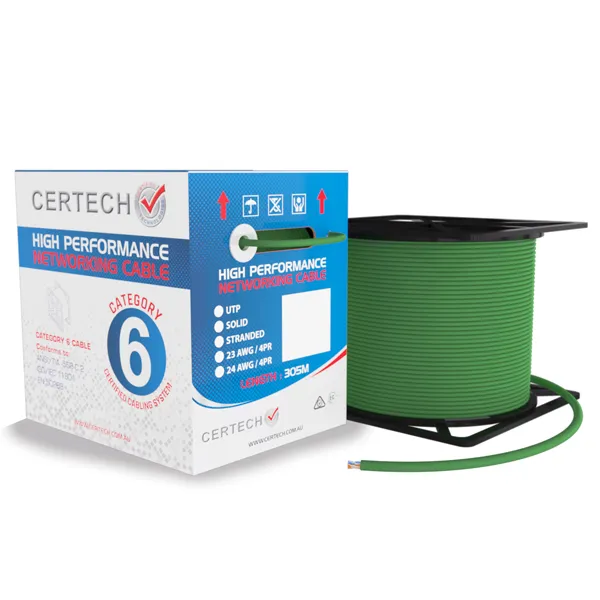

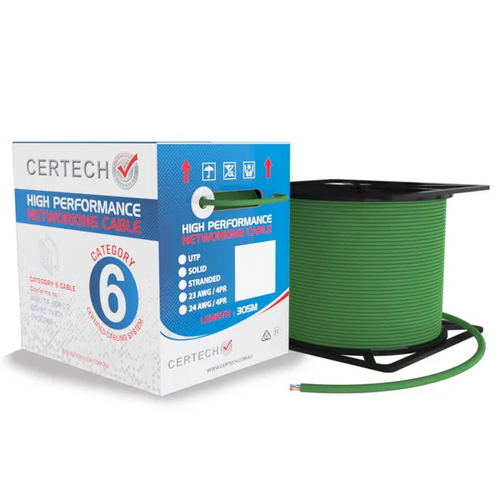

This Certech Cat6 cable roll delivers 305 metres of solid, unshielded twisted-pair copper cabling in a durable low-smoke, zero-halogen (LSZH) jacket, purpose-built for structured data, voice and CCTV network installations. Supplied on a reel-in-box for easy pulling, it is ideal for installers who need a reliable, code-compliant cable for internal building runs supporting Gigabit Ethernet, PoE devices and 4K UHD video transmission.

Key Features

• Solid bare copper conductors (100% copper, 23AWG x 4 pairs) for optimal signal transmission and reduced attenuation over long runs
• 250MHz rated performance, exceeding standard Cat6 requirements for stable Gigabit Ethernet and multi-gigabit-ready data links
• LSZH jacket construction that emits minimal smoke and no halogen gases when exposed to flame, suited to enclosed spaces and riser applications
• AS/CA S008:2010 approved, meeting the Australian cabling standard for telecommunications wiring
• 4K UHD ready, supporting high-bandwidth video and IP camera data over standard network infrastructure
• HDPE insulation around each conductor pair for consistent electrical performance and crosstalk control
• Reel-in-box packaging with a built-in dispensing mechanism for fast, tangle-free cable pulls on site
• Green jacket colour, useful for colour-coded cable management across VLANs, floors, or network zones
• Wide temperature tolerance, rated for installation between -20°C and +60°C and ongoing operation from -40°C to +75°C

Typical Applications

This Cat6 reel is well suited to commercial and residential structured cabling projects, including office data points, security and CCTV camera runs, PoE-powered access points and IP intercoms, patch panel terminations, and general LAN infrastructure where a colour-coded, code-compliant internal cable is required. Its LSZH jacket makes it a practical choice for risers, ceiling spaces and other areas where fire-safety compliance is a priority.

What's in the Box

• 1 x 305m reel of Certech Cat6 U/UTP solid cable, Green LSZH jacket, packaged in a dispensing box

Frequently Asked Questions

Is this cable suitable for outdoor use?
No, this LSZH-jacketed variant is designed for internal building installation. Certech offers a separate external/above-ground Cat6 cable for outdoor runs.

Can this cable support PoE devices such as IP cameras?
Yes, the solid copper 23AWG conductors support Power over Ethernet alongside data transmission, making it appropriate for IP cameras, access points and similar PoE-powered devices.

What is the maximum recommended run length?
As with standard Cat6 cabling, runs should not exceed 100 metres from switch to end device to maintain rated Gigabit performance.
