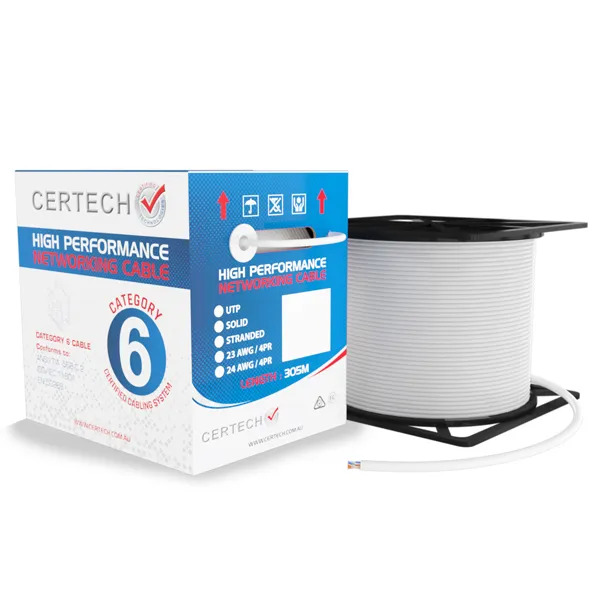

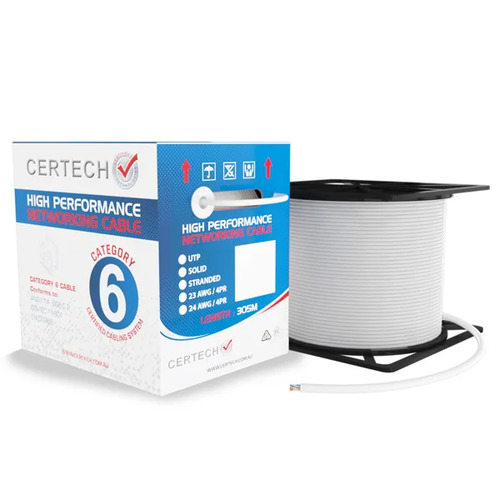

CERTECH 305M Cat6 U/UTP Solid Cable, White LSZH Jacket
305m Cat6 White UTP Solid Cable Roll 250MHz
100% Bare Copper Cable
23AWGx4P
LSZH Jacket
AS/CA S008:2010 Approved
4K UHD Ready
Cable Type: UTP
Jacket Material: LSZH
Conductor Material: Bare Copper Cable
Insulation Material: HDPE
Cable Length: 305m
Cable Weight: 13.1kg/305m
Cable Diamater: 0.55
Cable Gauge: 23AWG
Jacket Thickness: 0.55±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 69%
Operating Frequency: 250MHz
Flame Test Method: IEC60332-1-2
Installation Temperature: -20 ~ +60 degrees celsius
Operating Temperature: -40 ~ +75 degrees celsius
Packaging: Reel in Box
(CAT6-WTE-305-CT)
SKU | CAT6-WTE-305-CT |
Brand | Certech |
Shipping Weight | 16.0000kg |
Shipping Width | 0.270m |
Shipping Height | 0.340m |
Shipping Length | 0.340m |
Shipping Cubic | 0.031212000m3 |
