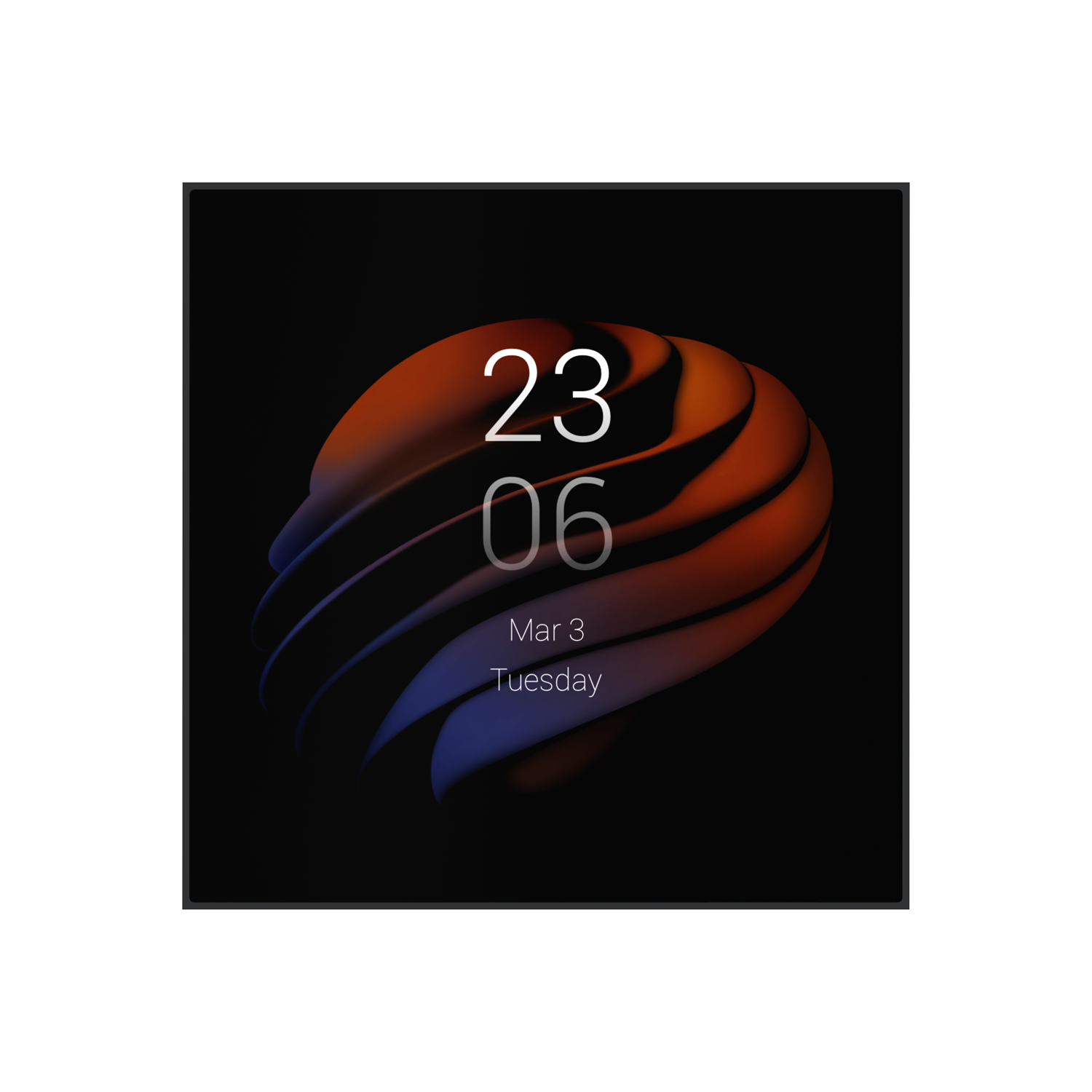

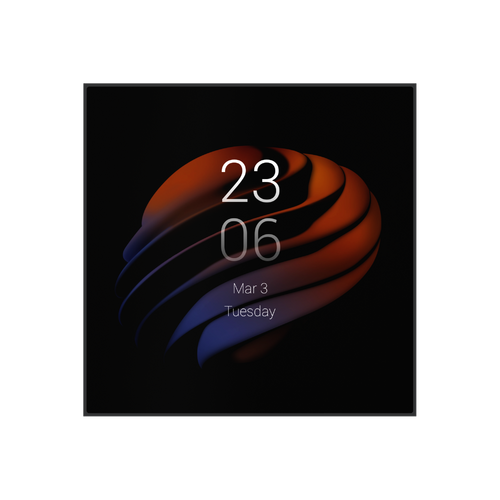

The Akubela HyPanel PS51-FANCOIL-EU is a 4-inch smart touchscreen panel with integrated fan coil thermostat control. Manage your HVAC system alongside full smart home automation in a single, sleek wall-mounted device — controlling heating, cooling, and fan speed all from one intuitive interface.

Built with Wi-Fi 2.4G/5G, Bluetooth 4.2, and Zigbee 3.0, the PS51-FANCOIL-EU connects seamlessly into the Akubela ecosystem, supporting intercom, scene control, and integration with Zigbee and RS485 devices.

Key Features

4-inch full-colour capacitive touchscreen (480×480 pixels)
Integrated fan coil thermostat control — 2 relays for heating/cooling valves, 3 relays for fan speed
NTC temperature sensor support
RS485 support for extended device integration
Wi-Fi 2.4GHz/5GHz, Bluetooth 4.2, Zigbee 3.0
Built-in proximity, light, temperature and humidity sensors
Android 10 operating system, 1GB RAM / 8GB ROM
Flush wall mount — EU/UK standard backbox (50mm depth recommended)
Intercom function with Akubela platform integration
V0 fireproof PC enclosure

Specifications

Model	PS51-FANCOIL-EU
Display	4-inch, 480×480 pixels
Operating System	Android 10
RAM / ROM	1GB / 8GB
Material	V0 fireproof PC
Power Supply	90–250VAC, 50/60Hz
Network	Wi-Fi 2.4GHz/5GHz, Bluetooth 4.2, Zigbee 3.0
RS485	Supported
Fan Coil Output	2 relays (cooling/heating valves) + 3 relays (fan speed)
NTC Sensor	Supported
Sensors	Proximity, light, temperature, humidity
Installation	Flush mount, EU/UK standard backbox (50mm depth recommended)
Working Temperature	-10°C to +55°C
Working Humidity	10%–90% RH (no condensation)
Storage Temperature	-20°C to +65°C

(PS51-FANCOIL-EU)

SKU	PS51-FANCOIL-EU
Brand	Akubela
Shipping Weight	0.4000kg
Shipping Width	0.120m
Shipping Height	0.060m
Shipping Length	0.120m
Shipping Cubic	0.000864000m3
