WiFi - Long Range P2P

Technical Specifications

Standard
IEEE 802.11a/n on 5 GHz

Memory Capacity
Memory: 256 MB
Flash Memory 16 MB

Antenna
Internal Directional Antennas
19 dBi on 5 GHz

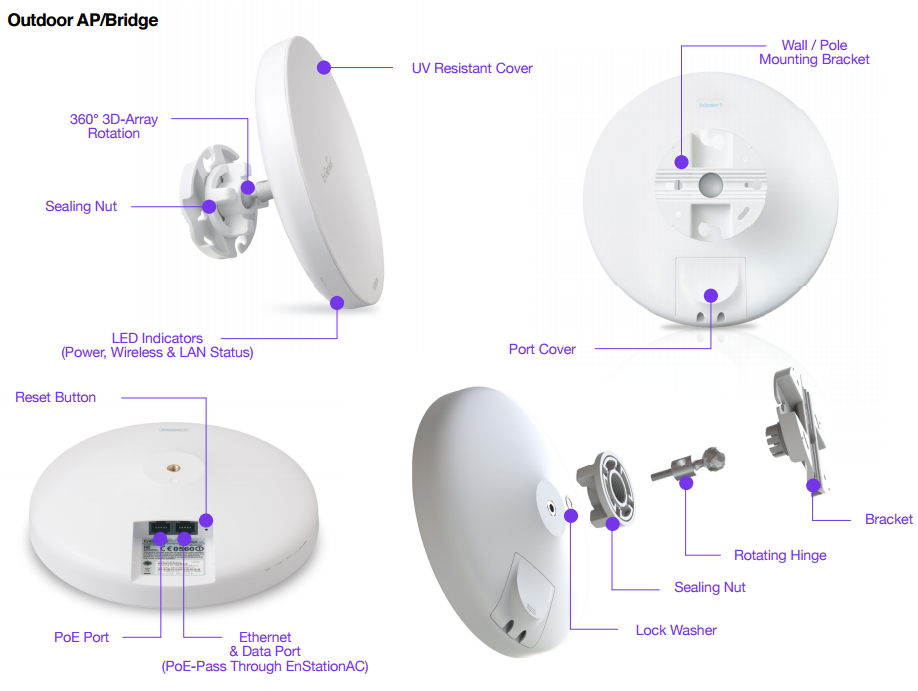

Physical Interface

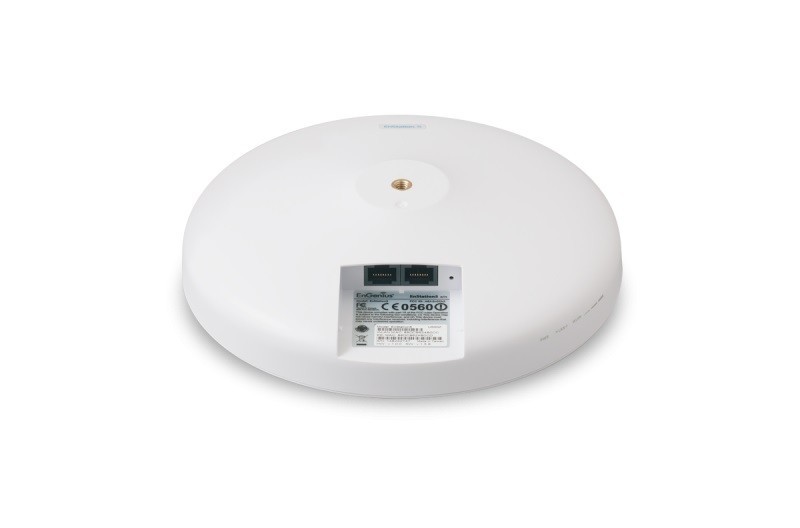

2 x 10/100/1000 Gigabit Ethernet Ports
)
- LAN1: Supports 802.3at PoE Input
- LAN2: Data & 802.3af PoE Pass-Through
)
1 x Reset Button

LED Indicators
1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN

Power Source
PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8 KV

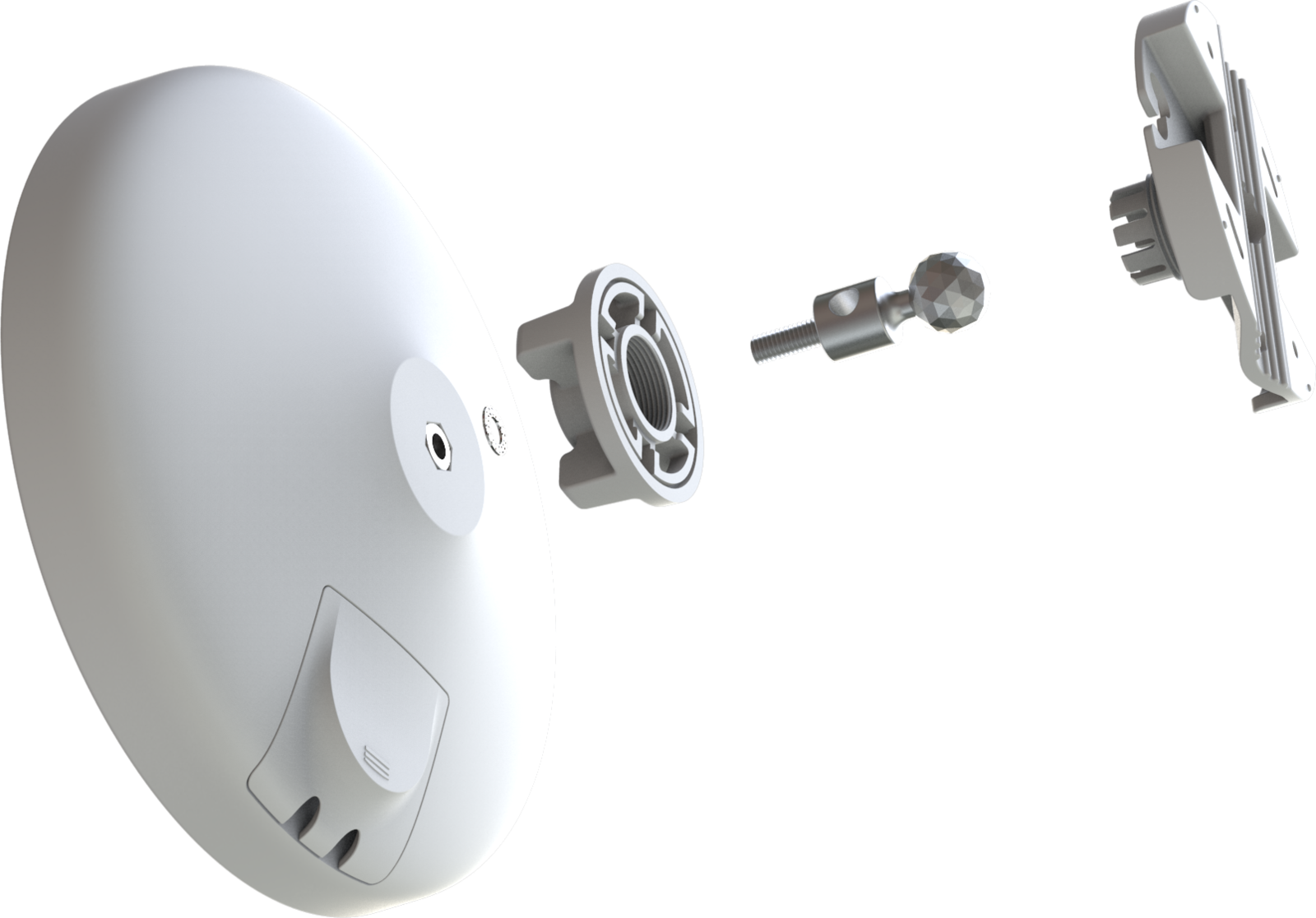

Mounting
Wall Mount
Pole Mount

Ingress Protection Marking
IP55-Rated Enclosure



Wireless & Radio Specifications

Operating Frequency
5GHz

Operation Modes
Access Point
Client Bridge
Client Router
WDS: AP, Bridge

Frequency Radio
5GHz:
5150MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5925MHz

Transmit Power
Up to 26 dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams
2x2:2

Supported Data Rates (Mbps)
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 ~2)

Supported Radio Technology
802.11a/n/ac: Orthogonal frequency-division Multiplexing (OFDM)

Channelization
802.11n with 20/40 MHz channel width
802.11a with 20 MHz channel width
802.11ac with 20/40/80 MHz channel width

Supported Modulation
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management

Multiple BSSID
Supports up to 4 SSIDs

VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through

Spanning Tree

QoS
Compliant with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB



Wireless Features

AP Radio Settings
AP Client Limiting
VLANs for AP - Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
RADIUS Accounting
Distance Control (Ack Timeout)
Multicast Supported
RSSI Threshold
Email Alert



Management Features

Deployment Options
Standalone (Individually Managed)

Configuration
Web Interface (HTTP)
CLI (Telnet)

Control Features
Auto Reboot
Firmware Upgrade

Security
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support



Environmental & Physical

Temperature Range
Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C

Humidity (Non-condensing):
Operating: 90% or less
Storage: 90% or less



Device Dimensions & Weights

EnStationAC Device
Weight: 1.11 lbs. (460 g)
Depth: 7.48” (190 mm)
Height: 1.50” (38 mm)

Package Contents
- EnStationAC Outdoor AP
- PoE Injector (EPA5006GP)
- Pole Mount Ring
- Mounting Screw Set
- Quick Installation Guide

Certifications
FCC
IC

Warranty
1 Year
