Ajax MotionProtect Curtain White Wireless Indoor Curtain Motion Detector

Ajax MotionProtect Curtain White - Wireless Indoor Curtain Motion Detector

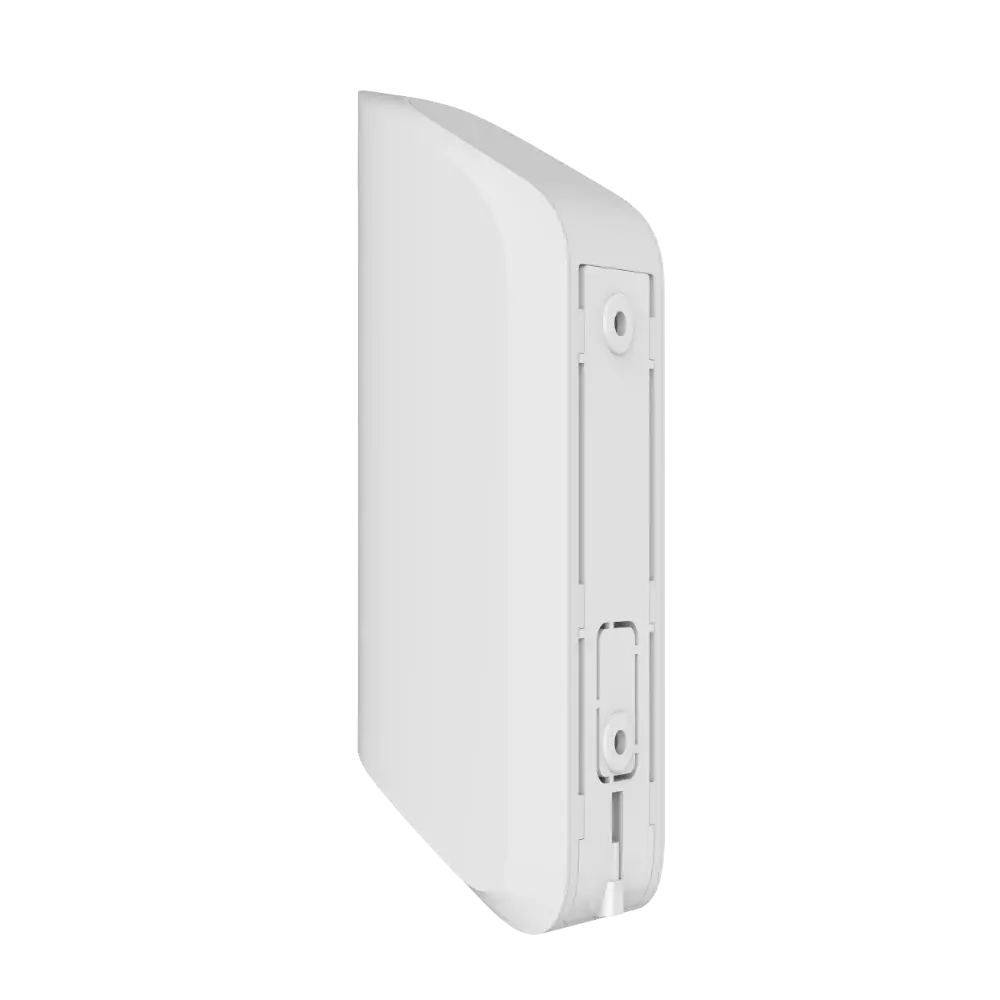

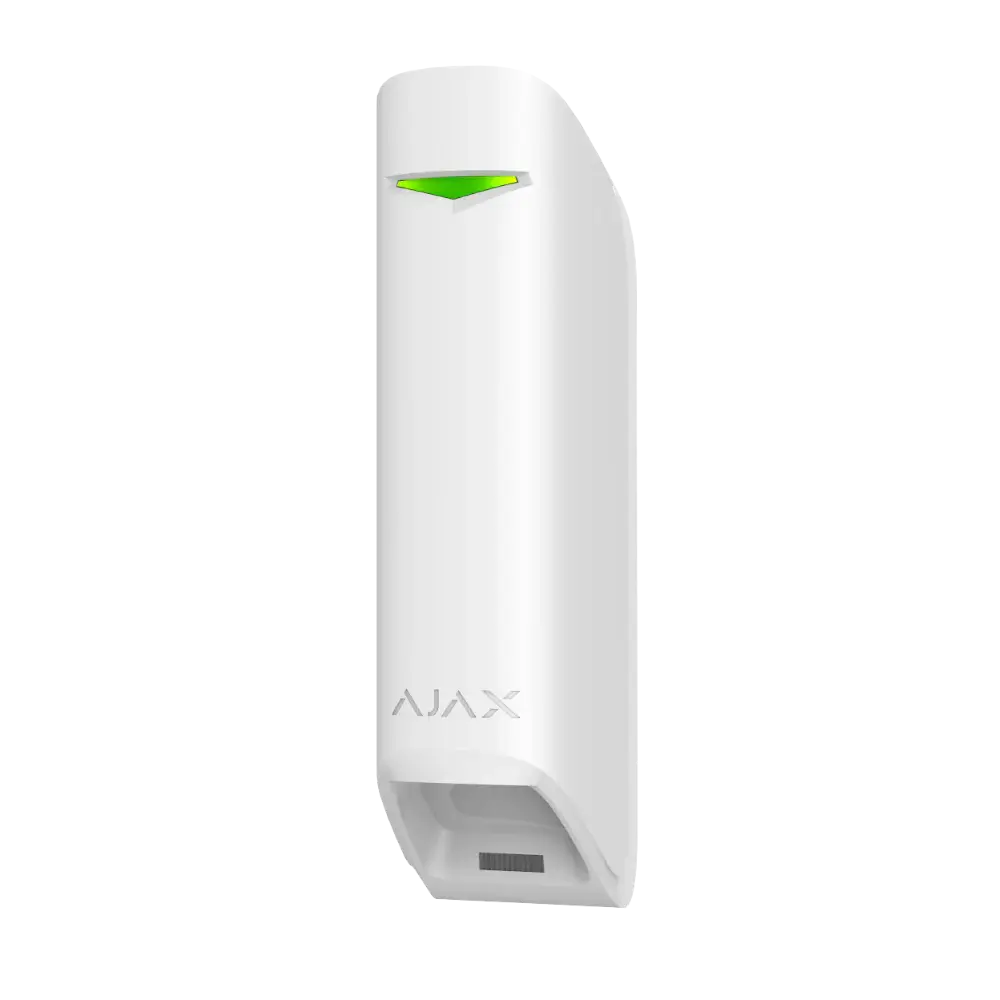

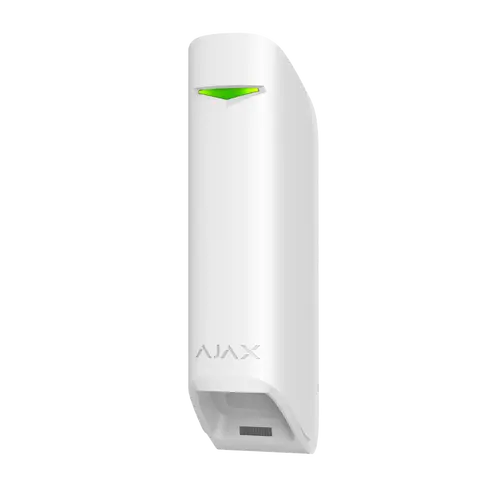

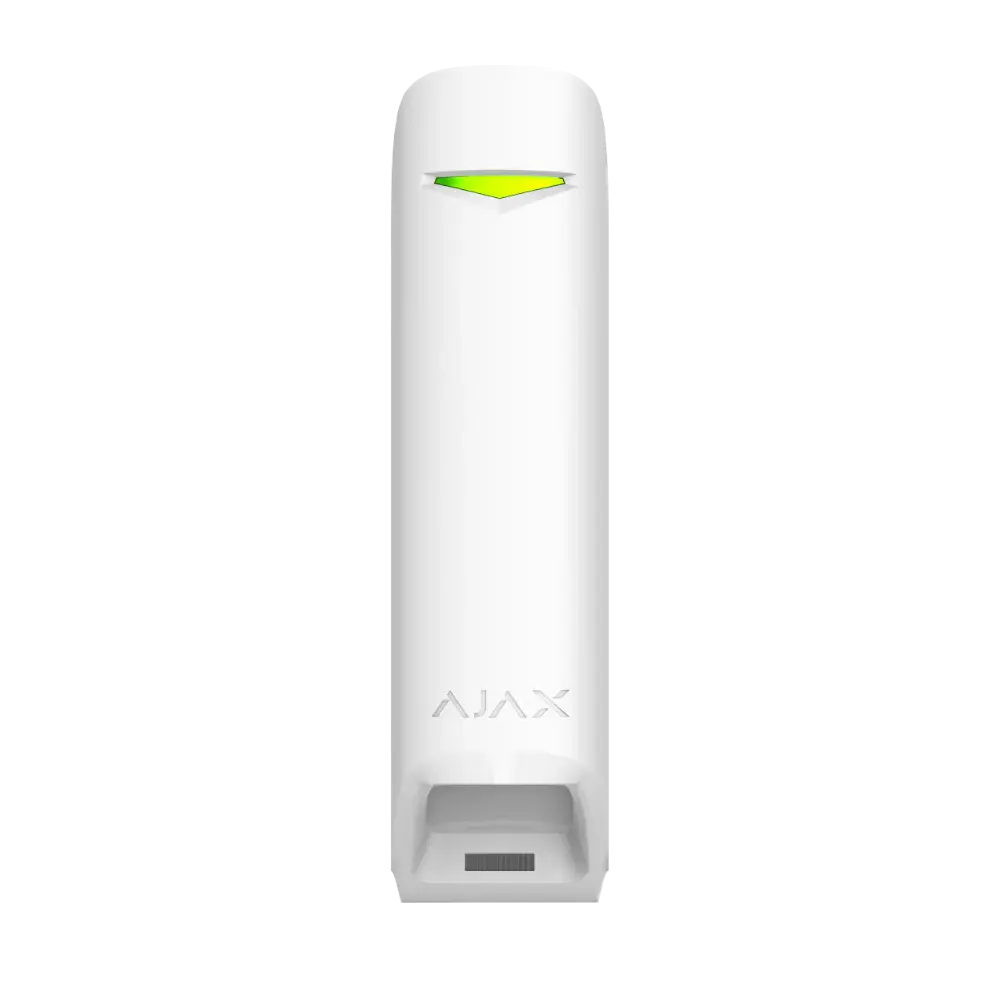

The Ajax MotionProtect Curtain is a wireless PIR motion detector purpose-built to create an invisible detection curtain across windows, doors, hallways and other narrow entry points. Rather than covering an entire room like a standard PIR, its optical design projects a thin vertical beam that can be positioned exactly where an intruder is likely to pass, making it a smart choice for perimeter-style protection inside a home, office, garage or gallery space. Finished in white, it pairs neatly with most interior decors and installs in minutes using the included SmartBracket mount.

Key Features

• Long detection range - picks up movement at distances of up to 15 metres.
• Narrow curtain-style coverage - a 6° horizontal by 90° vertical field of view focuses detection on a specific line rather than an open area.
• Dual IR sensor optics - a multifaceted mirror feeds two infrared sensors simultaneously, helping the detector recognise both slow, creeping movement and fast running intruders.
• Correlation Signal Processing - an optional setting that only triggers an alarm when both IR sensors register the same signal, reducing false alarms.
• Secure Jeweller radio protocol - encrypted two-way communication with the hub, with automatic frequency switching if jamming or interference is detected.
• Long wireless range - communicates with the Ajax hub or a range extender over long line-of-sight distances.
• Long battery life - runs on a pre-installed battery rated for up to three years of use without external power.
• Tamper protection - an integrated tamper switch triggers an alert if the unit is removed from its mount or forced from the wall.
• Fast setup - added to an Ajax system in minutes by scanning the on-device QR code with the Ajax mobile app.

Where to Use It

MotionProtect Curtain is designed for indoor perimeter-style protection rather than open-room coverage. Typical placements include mounting beside a window or French door to detect anyone climbing through, across a hallway leading to a secure area, at the entrance of a garage, or along a gallery wall to trigger an alert if someone reaches toward an exhibit. Because it can be installed upside down to raise its lower detection boundary, it is also a practical option in pet-friendly homes where nuisance alarms from animals need to be minimised.

What's in the Box

• MotionProtect Curtain detector (white)

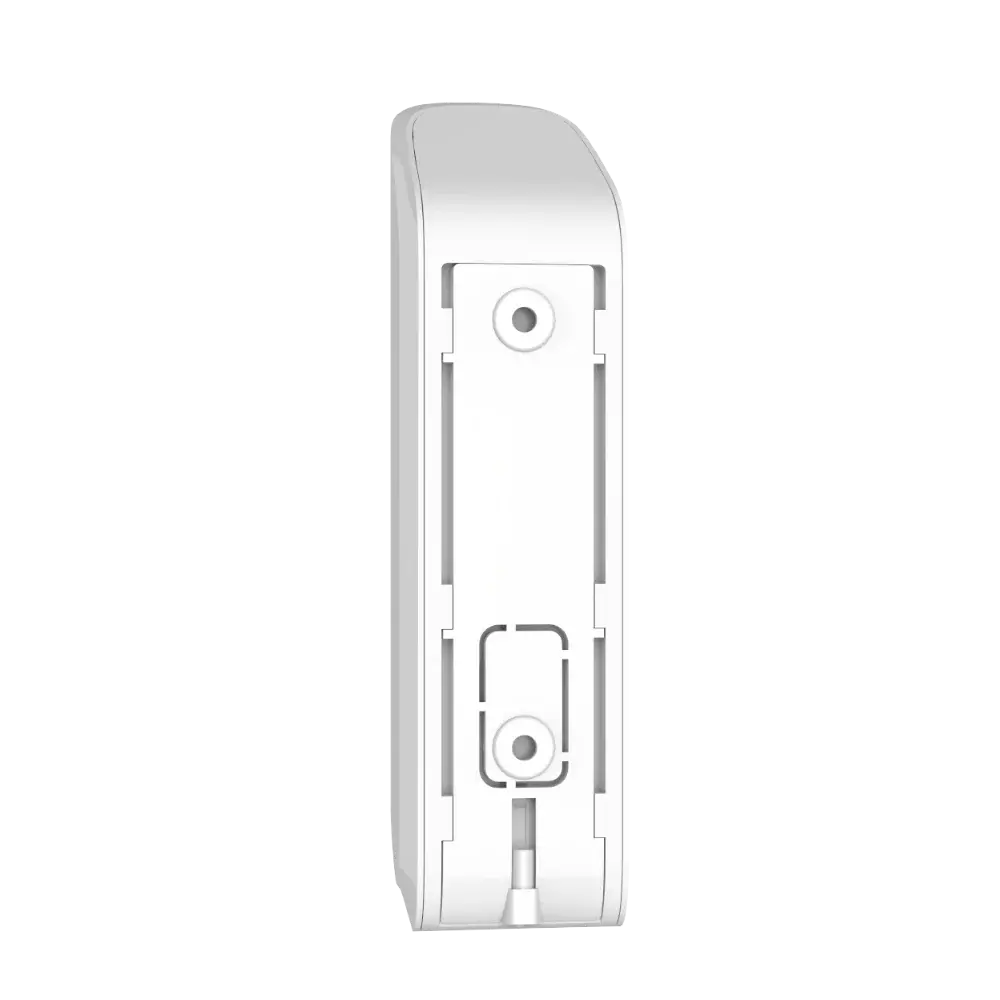

• SmartBracket mounting panel
• Mounting screws and double-sided adhesive tape
• Pre-installed battery
• Quick start guide

Frequently Asked Questions

Does MotionProtect Curtain work outdoors?
No, this detector is designed for indoor use only. Ajax offers a dedicated Curtain Outdoor Jeweller model for exterior perimeter protection.

Which Ajax hub does it need?
It connects wirelessly to any Ajax hub or range extender using the Jeweller radio protocol, and is configured and monitored through the Ajax mobile app.

Can it ignore household pets?
Yes, correct installation height and orientation allow the detector to disregard the movement of pets while still detecting human-sized intrusions.
