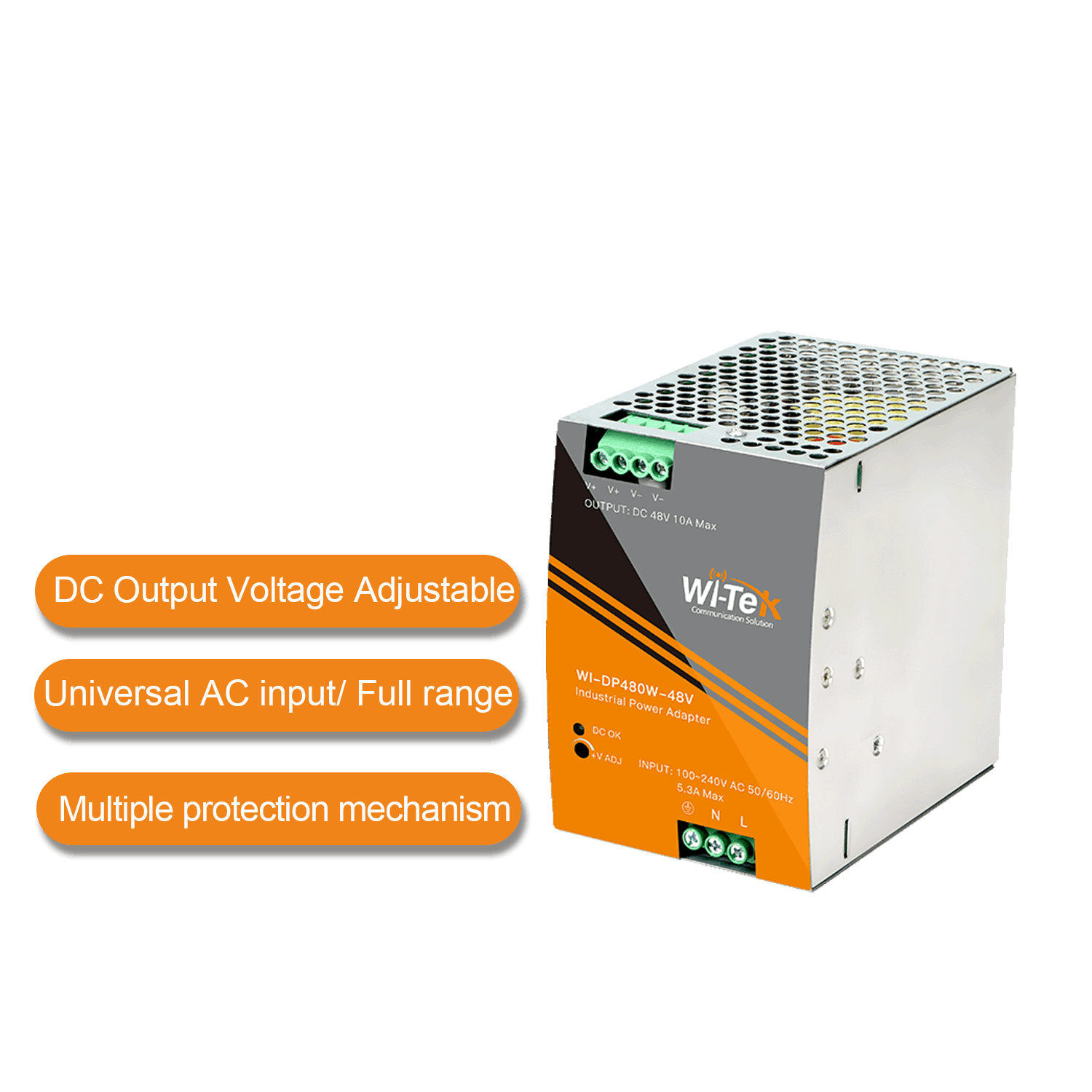

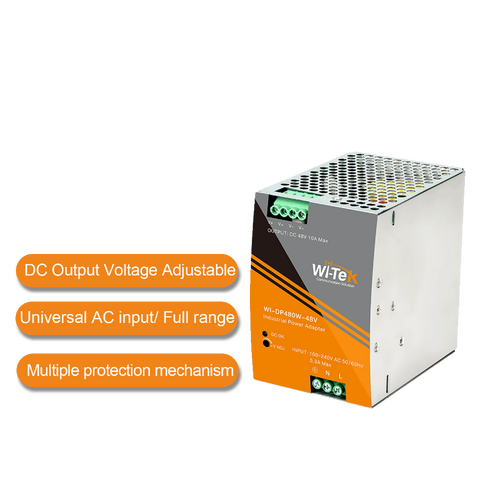

WI-TEK INDUSTRIAL 480W DIN-RAIL POWER ADAPTER
Wi-Tek has launched a series of DIN-rail power adapter, supporting a full range of 100~240V AC input, respectively, can output 30W,75W,120W,240W,480W power supply for industrial switch continuous power supply. The metal shell design is conducive to the heat dissipation of the equipment. In addition, it has over-current protection, over-voltage protection, short circuit protection, etc., to ensure the safe power supply of the equipment. The series are single phase PSU, providing adjustable DC output voltage. They have high effciency and operate in wide temperature range.
DC Output Voltage Adjustable
The DC voltage output range can be flexibly adjusted to meet the requirements of the project site.
Universal AC input/ Full range
Wide voltage design, can support 100~240V AC voltage input, adapt to the global mains voltage, to meet the needs of various industrial environments.
Multiple protection mechanisms
Support Short Circuit/Overload/Over Voltage/Over Temperature protection to ensure long-term stable equipment operation.
Great partner with industrial switch
The series adapters can output up to 480W of power, providing a powerful and stable power supply system for industrial PoE switches
Specifications
| Model | WI-DP480W-48V |
|---|---|
| Output | |
| DC Voltage | 48V |
| Rated Current(Max.) | 10A |
| Current Range | 0-10A |
| Rate Power(Max.) | 480W |
| Ripple & Noise(Max.) | 150mVp-p |
| Volatge ADJ. Range | 48-55V |
| Voltage Tolerance | â¼ 2.0% |
| Link Regulation | â¼ 0.5% |
| Load Regulation | â¼ 1.0% |
| Setup, Rise Time | 1500ms/100ms(115V/60Hz full load) |
| Hold Up Time (Typ.) | 3000ms/100ms(230V/50Hz full load) 16ms/230VAC at full load |
| Input | 16ms/115VAC at full load 90~264VAC |
| Voltage Range | 127~370VDC [DC input by connecting AC/L(+),AC/N(-)] |
| Frequency Range | 47-63Hz |
| Efficiency | 92% |
| AC Current (Typ.) | 4.8A/115VAC |
| Inrush Current (Typ.) | 2.4A/230VAC 20A/115VAC 35A/230VAC |
| Leakage Current | <2mA/240VAC |
| Model | WI-DP480W-48V |
| Protection | |
| Overload | 105~130% rated output power |
| Over Voltage | Protection type: Hiccup Mode- recovers automatically after fault condition is removed 56~65V Hiccup Mode- recovers automatically after fault condition is removed |
| Over Temperature | Protection type : Shut down o/p voltage, re-power on to recover |
| Environment | |
| Working Environment | -20℃~+70℃(Refer to "Derating Curve") ; 20%~95% (Non-condensation) |
| Storage Environment | -40℃~+85℃; 10%~95% (Non-condensation) |
| Other | |
| Product Dimension(W.H.D) | 85.5*125*129mm |
| Product Weight | 1.5kg |
| Installation | DIN-rail |
| Note | |
| the space to10-15mm when the adjacent device is heat source. | |
| 5. Efficiency test after 30 minutes of burn-in. | |
| Mechanical Specifcation | |
| 129mm | 85.5mm |
| 1 | 2 3 4 |
| V+ | V+ V- V- OUTPUT: DC 48V 10A Max 125mm WI-DP480W-48V DIN-rail Power Adapter DC OK +V ADJ INPUT: 100~240V AC 50/60Hz 5.3A Max |
| 1 | 2 3 |
| Block Diagram | |
| Deduction Curve andTemperature | |
| Minus Output and input Voltage Curves | |
| Frequently asked questions | |
| 1. Precautions for selecting and installing power cables | |
| Screwdriver A flat-head screwdriver with a width of 3mm is recommended. | |
| Input Recommendation | Wire Size/AWG Wire Diameter/mm² Strip Length/mm Torque/N·m single core wire: 0.14-2.5 |
| WI-DP30W-12V | 26-14 6.8 0.5 bunch wire: 0.14-1.5 single core wire: 0.34-4 |
| WI-DP75W-48V | 24-12 7-8 0.4 bunch wire: 0.34-2.5 single core wire: 0.5-6 |
| WI-DP120W-48V | 20-10 7.5-8.5 0.5 bunch wire: 0.5-4 single core wire: 0.5-6 |
| WI-DP240W-48V | 20-10 8 0.6 bunch wire: 0.5-4 single core wire: 0.5-6 |
| WI-DP480W-48V | 20-10 8 0.6 bunch wire: 0.5-4 |
| Output Recommendation | Wire Size/AWG Wire Diameter/mm² Strip Length/mm Torque/N·m single core wire: 0.2-2.5 |
| WI-DP30W-12V | 24-12 6.8 0.5 bunch wire: 0.2-1.5 single core wire: 0.34-4 |
| WI-DP75W-48V | 24-12 7-8 0.4 bunch wire: 0.34-2.5 single core wire: 0.12-6 |
| WI-DP120W-48V | 26-10 7.2 0.5 bunch wire: 0.12-4 single core wire: 0.12-6 |
| WI-DP240W-48V | 26-10 7.5-8.5 0.5: 0.12-4 single core wire: 0.34-6 |
| WI-DP480W-48V | 22-10 7.5-8.5 0.5-4 |
| 2. 48V guide power supply DC output cable instructions | |
| current of the device during connection. | |
| negative terminal. | |
| 1 | 2 3 4 |
| V+ | V+ V- V- OUTPUT: DC 48V 10A Max DC OUTPUT+V |
| WI-DP480W-48V | DC OUTPUT-V DIN-rail Power Adapter DC OK +V ADJ INPUT: 100~240V AC 50/60Hz 5.3A Max |
| 1 | 2 3 |
| 3. The output voltage adjustment method | |
| A. A small plum screwdriver to turn the shift ADJ | |
| B. Use the voltmeter to check the specific voltage adjustment | |
| 1 | 2 3 4 |
| V+ | V+ V- V- OUTPUT: DC 48V 10A Max WI-DP480W-48V DIN-rail Power Adapter DC OK +V ADJ INPUT: 100~240V AC 50/60Hz 5.3A Max |
| 1 | 2 3 |
| 4. What is DC OK Mean | |
| LED indicator, shows normal operation when connected | |
| 1 | 2 3 4 |
| V+ | V+ V- V- OUTPUT: DC 48V 10A Max WI-DP480W-48V DIN-rail Power Adapter DC OK +V ADJ INPUT: 100~240V AC 50/60Hz 5.3A Max |
| 1 | 2 3 |
| 5. Whether DC input is supported | |
| 127-370V DC input is supported. The connection modes are as follows | |
| 1 | 2 3 4 |
| V+ | V+ V- V- OUTPUT: DC 48V 10A Max WI-DP480W-48V DIN-rail Power Adapter DC OK +V ADJ INPUT: 100~240V AC 50/60Hz 5.3A Max |
| 1 | 2 3 |
Install tips
- Installation: DIN-rail
(WI-DP480W-48V)
| SKU | WI-DP480W-48V |
| Brand | WI-TEK |
