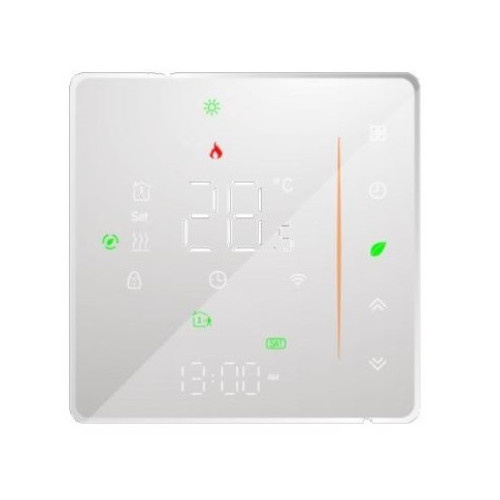

Akubela BHT-006 White Zigbee Heating Controller with LCD Touch Display

Akubela BHT-006 White Zigbee Heating Controller

The Akubela BHT-006 is a Zigbee 3.0 smart heating controller built to manage electric and hydronic floor heating circuits with precision. Finished in white with a sleek capacitive touch LCD panel, it pairs with a Zigbee gateway and the BelaHome app to bring remote scheduling, real-time monitoring, and whole-home automation to any heated room. Designed for wall-box installation, it suits new builds and retrofits alike, giving homeowners and installers a reliable way to cut energy waste while keeping rooms comfortable.

Key Features

• Zigbee 3.0 wireless protocol for mesh network connectivity with compatible smart hubs
• High-precision NTC temperature sensor delivering accuracy within ±0.5°C
• Wide temperature control range of 5°C to 35°C to suit varied heating needs
• Capacitive touch LCD display showing current temperature, set point, time, and day
• Weekly scheduling with multiple daily time periods for automated comfort and savings
• Remote control, monitoring, and scene integration via the BelaHome app
• Rated for up to 16A load, suitable for most residential electric heating circuits
• Flame-resistant PC+ABS housing fits standard 60mm mounting boxes
• Low self-consumption power draw of under 1.5W for efficient standby operation

Ideal for Modern Heated Spaces

This controller is best suited to homes and apartments with underfloor electric heating, hydronic panels, or zoned heating circuits that benefit from scheduled, app-based control. Because it runs on Zigbee rather than Wi-Fi, it maintains a stable connection even in larger homes with multiple smart devices, making it a strong fit for installers building out a broader Akubela or Zigbee-based smart home system. Typical use cases include bathroom and living area floor heating, holiday homes needing remote pre-heating before arrival, and multi-room installations where centralised scheduling reduces running costs.

What's in the Box

• Akubela BHT-006 Zigbee Heating Controller (White)
• NTC temperature sensor probe
• Mounting screws and wall-box fixings
• Quick start installation guide

Frequently Asked Questions

Does this controller work without a hub?
No. As a Zigbee 3.0 device, it needs a compatible Zigbee gateway or the Akubela HyPanel/BelaHome ecosystem to enable app control, scheduling, and remote access.

Can it control both electric and hydronic heating?
Yes, the BHT-006 series is designed to manage electric floor heating elements as well as water-based (hydronic) heating circuits via appropriate wiring.

What size wall box does it need?
It installs into a standard 60mm mounting box, with a compact 86x86mm faceplate and slim depth for a flush finish.
